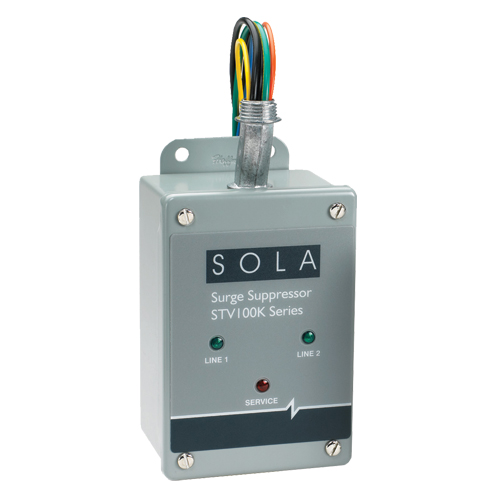

SolaHDs STV100K hardwired surge protective devices are designed for installation at the service entrance, branch panel or a dedicated sensitive electronic load. These units feature all mode protection, LED and audible alarm status indication, sinewave tracking and form "C" dry contacts. The STV100K series also contains the highest levels of safety built into the product including thermal fusing and a short circuit current protection rating of 100kA.

SolaHD Surge Protective Device, Series: STV 100K, 480 VAC Electrical Rating, 47 to 63 Hz Frequency, 3 Wires, 100 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-L/L-G/N-G, <0.5 ns Response, Audible Alarm/LED Indicator, 3 ph, Environmental Conditions: -40 to 60 deg C Temperature/0 to 95% Non-Condensing Humidity, NEMA 12 Enclosure, Flanged Mounting, Metal, 3.2 in H x 6 in W x 4 in D Dimensions

• Low clamping levels for more effective protection
• 100 kA peak current rating provides all mode protection against severe transients
• LED status and audible alarms
• Compact, rugged meta

• Owners/User Manual https://assets.unilogcorp.com/2/ITEM/DOC/SolaHD_STV100K_24L_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_62fe3d7d97683d0b773b8ebd83bd04cf4e566340a6defb095f8dd694bdd350c2.pdf
• Technical Bulletin https://assets.unilogcorp.com/2/ITEM/DOC/SolaHD_STV100K_24L_Technical_Bulletin.pdf
• Warranty Information https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f8c93def9bddb1dad7f89ca4fe1ceaeb5bb41b739f1a34f124b284dcc4bf140f.pdf
