B-Line BB7-16

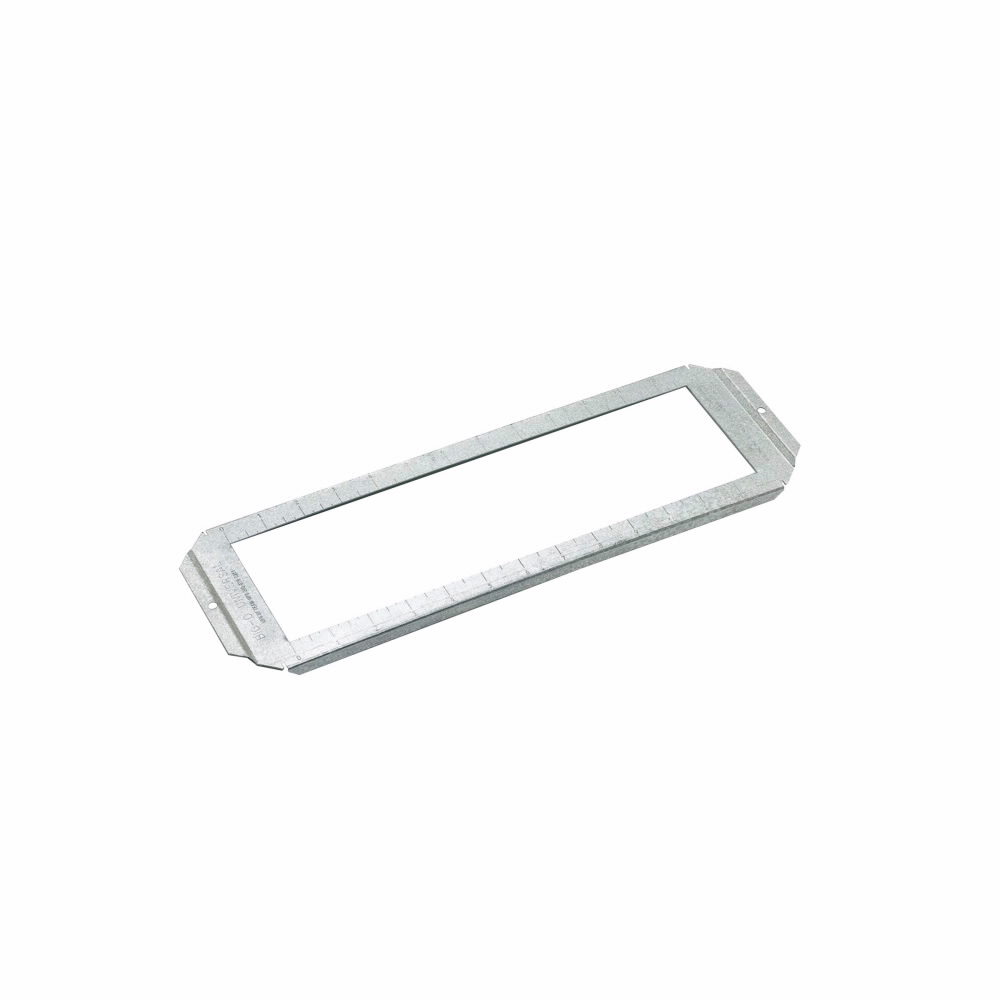

BB7-16 Open Box Mounting Bracket, 16 in Stud Spacing, Wall Mount, Steel, Pre-Galvanized

  • MPN: BB7-16
  • UPC: 799038564010
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
B-Line BB7-16

B-Line Box Mounting Bracket, Open, 16 in Stud Spacing, Wall Mounting, For Use With: Stud and Box, Steel, Pre-Galvanized

Suitable For Use With      :      Stud and Box
Type      :      Open
Stud Spacing      :      16 in
Mounting Type      :      Wall
Material      :      Steel
Finish      :      Pre-Galvanized
  • Supports most standard U.S. and Canadian boxes and plaster rings 4 sq-in, 4-11/16 sq-in, 5 sq-in and multi-gang electrical boxes
  • Compatible with rapid ring self-adjusting pre-fab ring and adjustable plaster rings

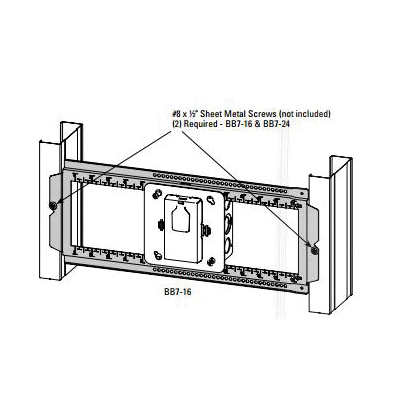

  • May be field modified for stud openings down to 6 in between studs (see reverse side)
  • Ruler marks aid in positioning and alignment of electrical box and plaster ring
  • Patent pending
  • pdfSpecification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/B_Line_BB7_16_Data_Sheet_1.pdf
  • pdfWarranty Information https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_ad2b1fb995d1989a1e2e001fac85aea6d2e67971854a304647b6262ef3e311e5.pdf
