Non Stock

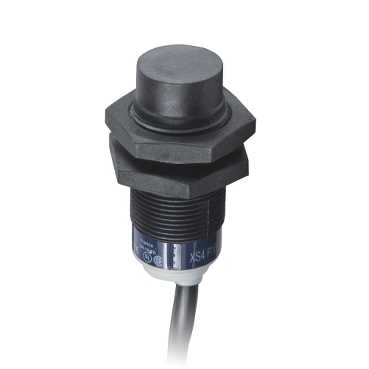

XS4P18AB110 Fixed Cylindrical Probe Proximity Sensor, Inductive, 1NC Contact, 15 to 58/24 to 48 VDC
| Branch Name | Available |
|---|
inductive sensor XS4 M18 - L41mm - PBT - Sn8mm - 24..48VDC - cable 2m
Schneider Electric OsiSense® Proximity Sensor, Fixed Cylindrical Probe, Series: XS4, Inductive Sensing Method, 0.31 in Sensing Distance, <=3% Accuracy, 1NC, 15 to 58/24 to 48 VDC, 4 mA, 500 Hz, 2 m Cable, 41 mm L x 18 mm H, IP67, -13 to 158 deg F, Non-Flush Mount, Plastic
| Accuracy | : | <=3% |
| Amperage Rating | : | 4 mA |
| Connection Type | : | 2 m Cable |
| Enclosure Type | : | IP67 |
| Frequency Response | : | 500 Hz |
| Material | : | Plastic |
| Mounting Type | : | Non-Flush |
| Sensing Distance | : | 0.31 in |
| Series | : | XS4 |
| Size | : | 41 mm L x 18 mm H |
| Temperature Rating | : | -13 to 158 deg F |
| Type | : | Fixed Cylindrical Probe |
| Sensing Method | : | Inductive |
| Contact Configuration | : | 1NC |
| Voltage Rating | : | 15 to 58/24 to 48 VDC |
Line Drawing
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f1e8035db1bb9e53f4f93746c231f0aed66449f94ca4acec9c6a75fc3495e0f5.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_74689fa098b707f1eebae6fb696ba9c8a5df7536784328654e38d8732538aad5.pdf
