Eaton M22 selector switch line offers an almost endless variety of options in maintained/momentary, key removal and illuminated devices. The coding adapters used for maintained/momentary and key removal positions make the M22 stand out from competitive devices. By simply adding or removing a coding adapter from inside the operator, the end user can change the function of the button. Operator options include standard knob, rotary head, illuminated and keyed versions. As with all operators, they can be ordered as a ready to install complete device or as modular components to meet application specific requirements.

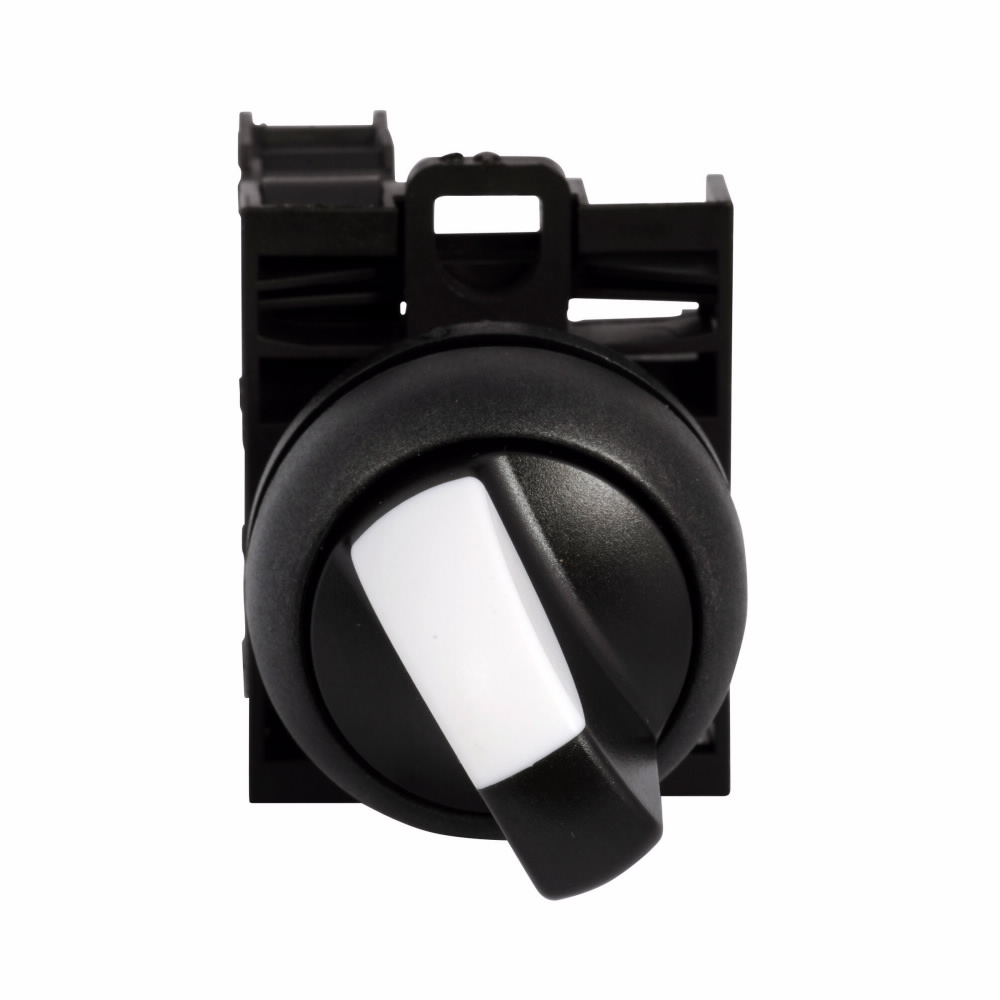

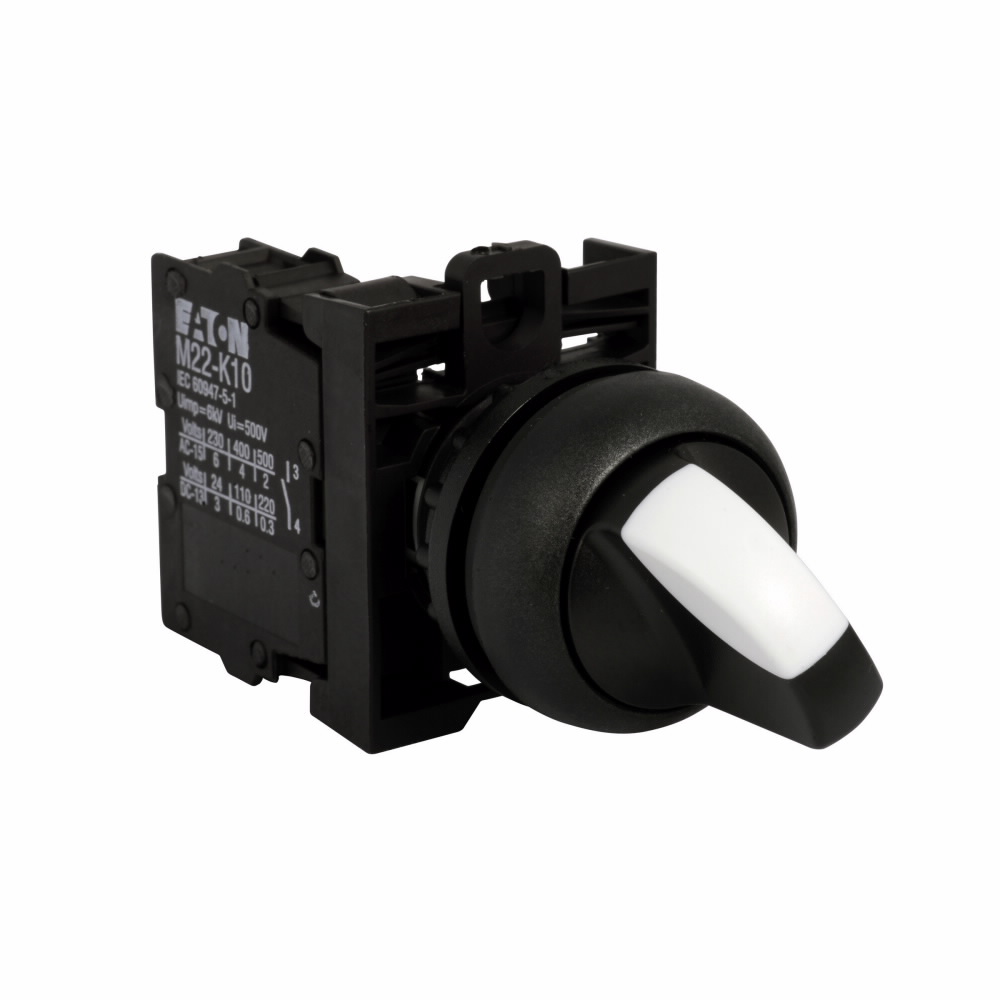

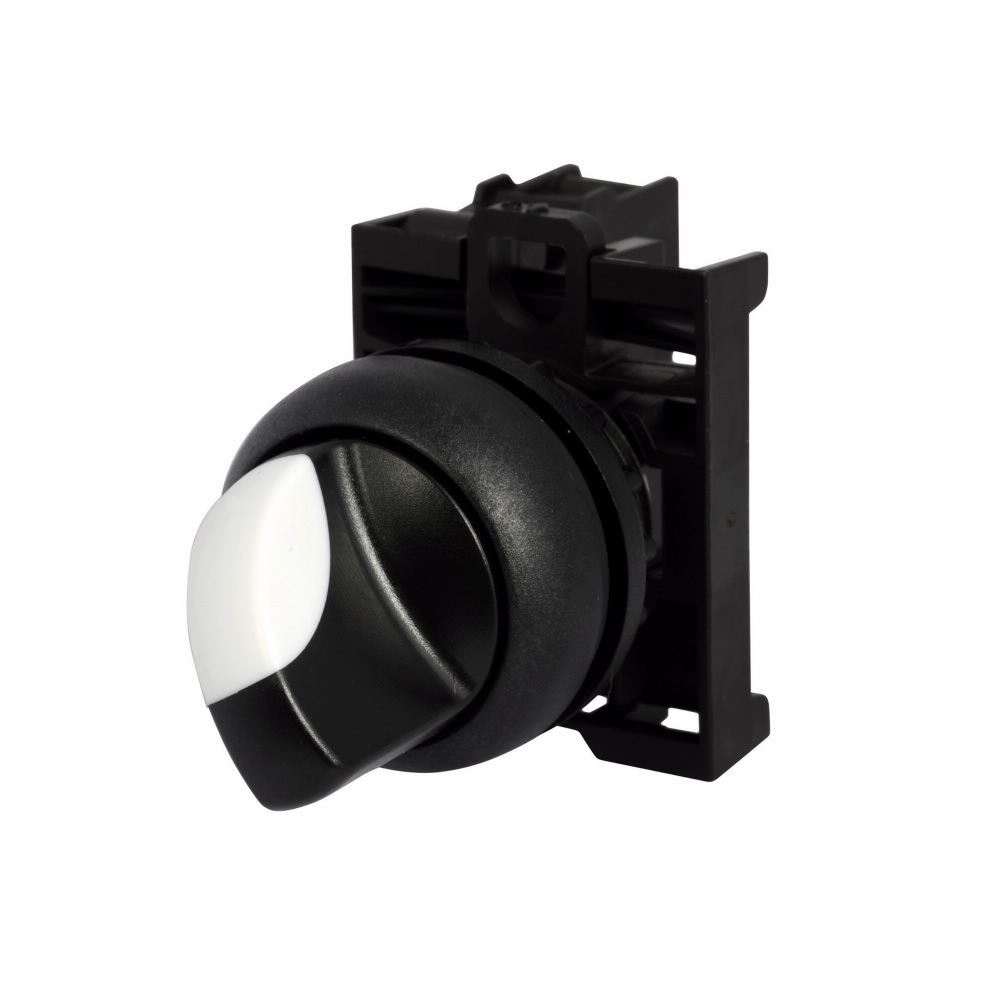

EATON Selector Switch, Non-Illuminated, Series: M22, 22.5 mm Size, 1NO Contact Configuration, Maintained/V-Position Contact Mode, 2 Position, 60 deg Throw, Knob Actuator, NEMA 4X/13/IP66/IP67/IP69K Enclosure, Black

• Adding or removing coding adapters allows for field convertibility of maintained/momentary and key removal positions
• LED offering only for improved brightness quality and up to 100000 hr of operation
• More than 100000 mechanical operations
• Coding adapter options make assembly fast and simplify stocking of different configurations of selector switches
• Capable of communicating via ASi protocol with ASi adapter modules

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/Cutler_Hammer_E30KA100_Catalog.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_5de9034e375324c8dd6ce6cad0d5ae4a02ba866b3163472eb511691691fc0cdf.pdf
• Technical Bulletin https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_1485504481413.pdf
