Day-Brite EE248T-347H4

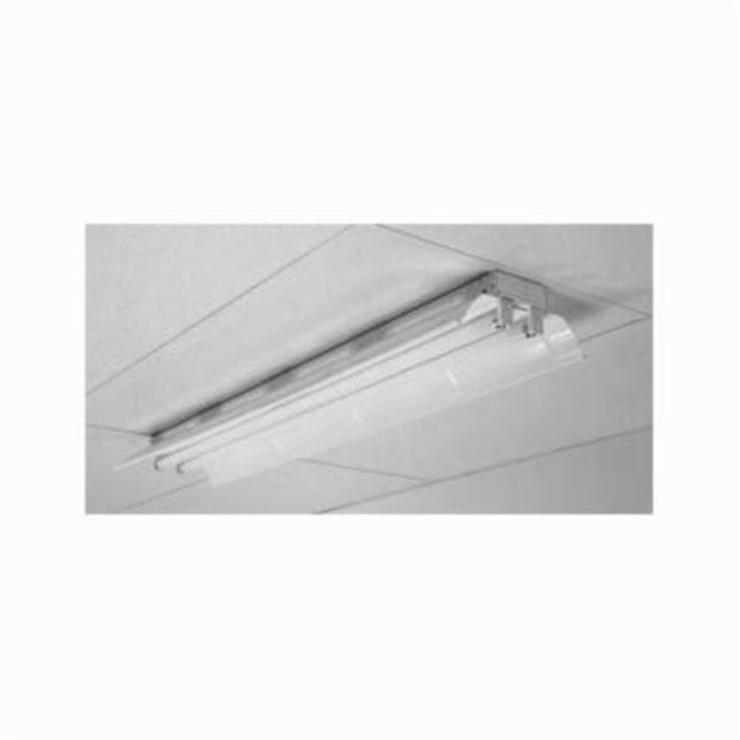

Day-Brite EE248T-347H4 EE Series Strip Light, (2) T8/T12 Fluorescent Lamp, 128 W Fixture, 347 VAC, White Enamel Housing

  • MPN: EE248T-347H4
  • UPC: 062225234294
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
Day-Brite EE248T-347H4

Day-Brite Strip Light, Series: EE Series, 347 VAC, 128 W Fixture, 1.06 A, T8/T12 Fluorescent Lamp, 32/34 W Lamp, Medium Bi-Pin Lamp Base, 2 Lamps, Electronic Ballast, Polycarbonate Lens, 11800 Lumens, Ceiling Mounting, Steel Housing Material, White Enamel Housing Finish, 48 in L x 4-1/4 in W x 1-5/8 in H Dimensions

Amperage Rating      :      1.06 A
Ballast Type      :      Electronic
Dimensions      :      48 in L x 4-1/4 in W x 1-5/8 in H
Housing Material      :      Steel
Lamp Base Type      :      Medium Bi-Pin
Lamp Wattage      :      32/34 W
Lens Type      :      Polycarbonate
Lumens      :      11800 Lumens
Mounting Type      :      Ceiling
Series      :      EE Series
Lamp Type      :      T8/T12 Fluorescent
Fixture Wattage      :      128 W
Voltage Rating      :      347 VAC
Housing Finish      :      White Enamel
Number of Lamps      :      2
  • Reflector is embossed for rigidity
  • Reflector sides are turned up for rigidity and safe handling
  • Solid top reflector, standard
  • 10% aperture reflector, optional
  • Fully enclosed wiring
  • Combination end cap for continuous row mounting
  • Convenience outlet and switch K.O.s provided
  • Optional hangers, wire guards and aligners
  • Optional heavy duty coupling
  • Heavy-duty die-formed with deep lateral embossments and return edges for additional stability and uniformity and two quick release quarter turn edges for additional stability and uniformity and two quick release quarter turn fastener for attachment to housing
  • Chassis baked polyester white enamel, phosphate undercoating, reflector-baked white polyester enamel minimum 85% reflectance
  • Instant-start, T8, 4 LPB, <10% total harmonic distortion
  • Cold rolled steel material
