Electrozad

Nsi 2001 Non Stock
printPrint
  1. pin-int

Nsi 2001

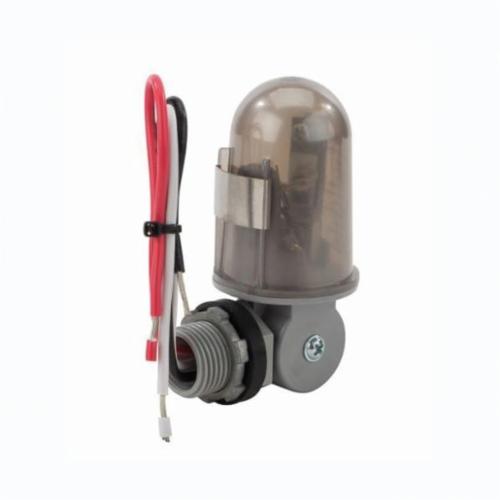

2001 2000 Photocontrol With 1/2 in 180 deg Swivel Conduit, 120 VAC, 2000 W Tungsten, 1800 VA Ballast, Screw/Stem Mount, Lexan

  • MPN: 2001
  • UPC: 786261600158
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
Nsi 2001

NSI Photocontrol, Series: 2000, 120 VAC, 50/60 Hz, 2000 W Tungsten, 1800 VA Ballast, SPST, 2 min, 16 AWG Wire, Cadmium Sulfide Cell Sensor, 1 to 5 FC (ON)/3 to 15 FC (OFF) Ratio, Environmental Conditions: -40 to 140 deg F Operating Temperature, Screw/Stem Mount, Lexan

Contact Form      :      SPST
Environmental Conditions      :      -40 to 140 deg F Operating Temperature
Frequency Rating      :      50/60 Hz
Sensitivity      :      1 to 5 FC (ON)/3 to 15 FC (OFF) Ratio
Sensor Type      :      Cadmium Sulfide Cell
Series      :      2000
Timing Range      :      2 min
Wire Size      :      16 AWG
Voltage Rating      :      120 VAC
Tungsten Rating      :      2000 W
Ballast Load      :      1800 VA
Mounting Type      :      Screw/Stem
Material      :      Lexan
  • Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants
  • Photocell responds to the light spectrum near to that of a human eye
  • Delay of up to two minutes to prevent false switching due to light from passing vehicles, lightning and more
  • Works with screw base CFL and LED lamp
  • On and Off time delay
  • Cadmium sulphide, epoxy conformal coated 1/2 in diameter cell
  • Remain closed between dusk and dawn (the unit fails in the on position) contacts
  • Three color coded, minimum 6 in wire leads, 16 AWG, rated for 105 deg C lead wires
  • On fail mode
  • Epoxy conformal coated
