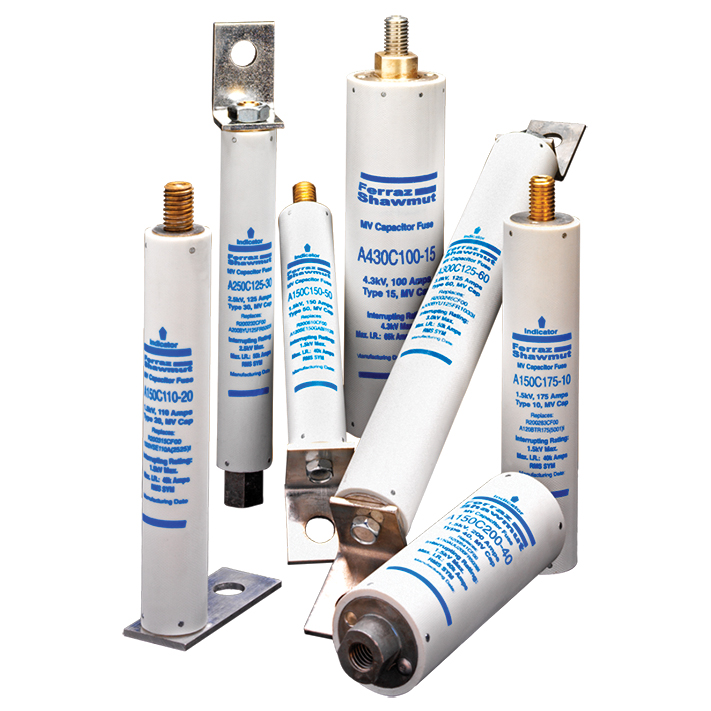

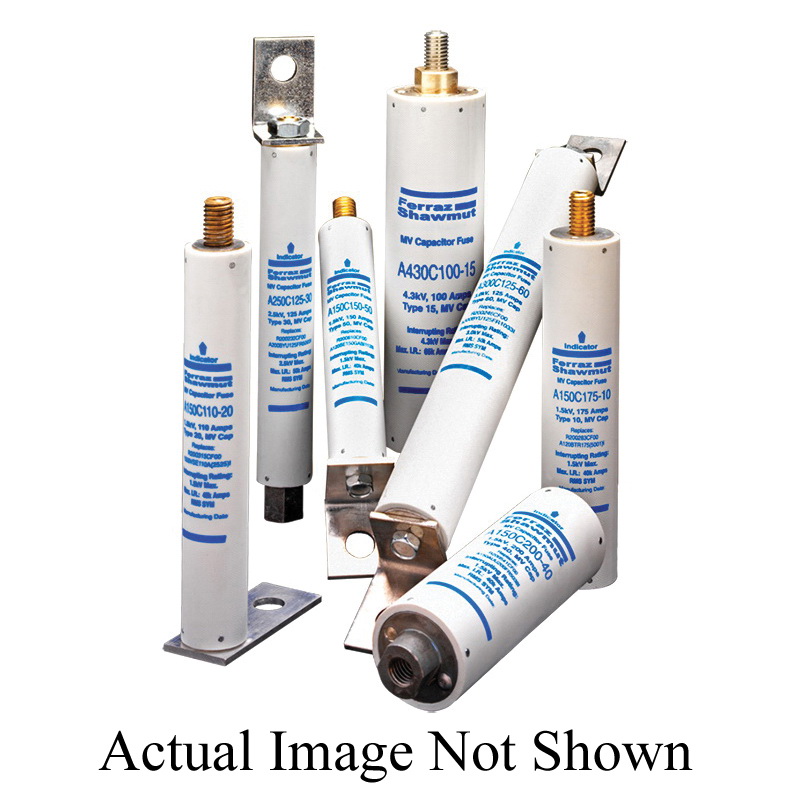

A250C125-30 Type 30 Medium Voltage Capacitor Fuse, 125 A, 2.5 kVAC, 50 kA, Ferrule Body
| Branch Name | Available |
|---|
MERSEN capacitor fuses are designed to ANSI C37-41. They are current limiting operating without noise or discharge and are designed to be used indoors in a general purpose enclosure or outdoors in a weatherproof enclosure. These are non-disconnecting fuses requiring the use of a disconnect switch. These capacitor fuses provide both short circuit and overload protection and are intended to protect against capacitor case rupture or dielectric failure within the capacitor. The various mounting configurations offer manufacturers a wide range of cost and space saving solutions and a large choice of equivalent products to users.
Ferraz Shawmut AMP-TRAP® Capacitor Fuse, Type 30 Medium Voltage, Series: A250C, Indicating, 125 A, 2.5 kVAC, 50 kA Interrupt, F Stud to L-Bracket Terminal, Direct Mounting, Ferrule Body, Epoxy/GMG, 1.1 in Dia x 9.41 in L Body
| Body Size | : | 1.1 in Dia x 9.41 in L |
| Indicating/Non-Indicating | : | Indicating |
| Material | : | Epoxy/GMG |
| Mounting Type | : | Direct |
| Series | : | A250C |
| Terminal Type | : | F Stud to L-Bracket |
| Type | : | Type 30 Medium Voltage |
| Amperage Rating | : | 125 A |
| Voltage Rating | : | 2.5 kVAC |
| Interrupt Rating | : | 50 kA |
| Body Type | : | Ferrule |
Full Engineering Drawing
https://assets.unilogcorp.com/2/ITEM/DOC/Ferraz_Shawmut_A250C100_30_Full_Engineering_Drawing.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_bb83cdbd2e3f03353c7cdf35df9ee3f88b539b51fec3b2a65fe8920d979a9b62.pdf
