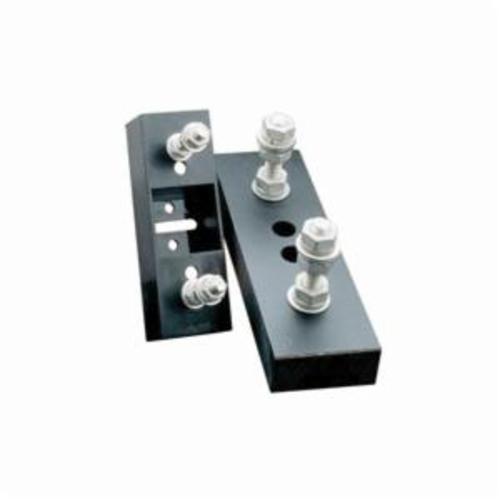

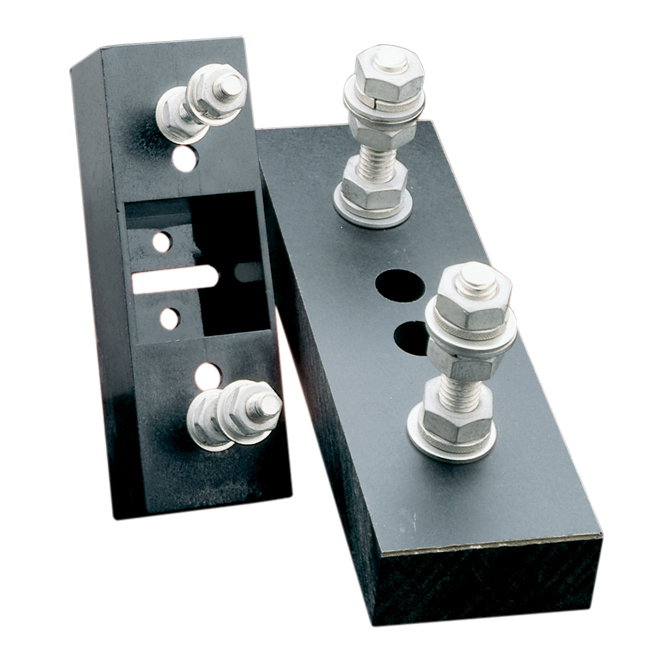

P243C Fuse Block, 1000 VAC, 200 A, 20 to 1/4 AWG Wire, 1 Pole
| Branch Name | Available |
|---|
Mersen P-block P243 and P266 series fuse blocks for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. The P-block P292 series has a laminated phenolic insulator base with fuse clips. All studs, clips, and mounting hardware are tin or zinc plated.
Ferraz Shawmut Fuse Block, Series: P243, 1000 VAC, 200 A, 1 Pole, 1 ph, Stud Connection, 20 to 1/4 AWG Wire, Threaded Mounting, For Use With: A60X, A60Z and A70QS-4 Series Form 101 Fuse, Phenolic, 4.4 in L x 1.5 in W x 2.79 in H Dimensions
| Connection Type | : | Stud |
| Dimensions | : | 4.4 in L x 1.5 in W x 2.79 in H |
| Material | : | Phenolic |
| Mounting Type | : | Threaded |
| Number of Phases | : | 1 |
| Series | : | P243 |
| Suitable For Use With | : | A60X, A60Z and A70QS-4 Series Form 101 Fuse |
| Voltage Rating | : | 1000 VAC |
| Amperage Rating | : | 200 A |
| Wire Size | : | 20 to 1/4 AWG |
| Number of Poles | : | 1 |
