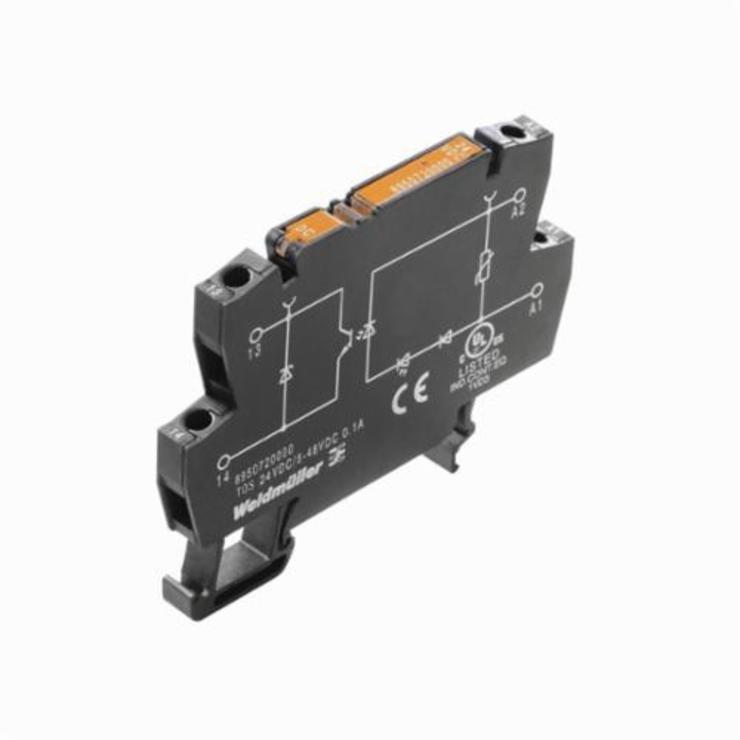

Weidmuller Solid State Relay, 0.1 A, 0.3 VA, 5 to 48 VDC Coil, 1NO, DIN Rail Mount, Screw Terminal, IP20, -20 to 60 deg C, 74.4 mm H x 6.1 mm W x 55 mm D
| Dimensions |
: |
74.4 mm H x 6.1 mm W x 55 mm D |
| Enclosure Type |
: |
IP20 |
| Mounting Type |
: |
DIN Rail |
| Power Rating |
: |
0.3 VA |
| Temperature Rating |
: |
-20 to 60 deg C |
| Terminal Type |
: |
Screw |
| Amperage Rating |
: |
0.1 A |
| Contact Form |
: |
1NO |
| Coil Voltage |
: |
5 to 48 VDC |
- 5 to 95 percent relative humidity, Tu = 40 deg C, no condensation humidity
- -40 to 80 deg C storage temperature
- 120 VAC +/- 20 percent rated control voltage, 2.9 mA at AC nominal control current, 102 V/48 VAC Cut-in/dropout voltage, varistor protective circuit
- 5 to 48 VDC rated switching voltage, 100 mA continuous current and rated switching current, DC1 load category, < 12 ms Switch on delay, < 14 ms Switch-off delay, < 1 V voltage drop at max. load, < 10 uA Leakage current, 100 uA Min. switching current, Free-wheel diode lode side protective circuit, 10 Hz max. switching frequency (DC control voltage)
- UL 94 V-0 flammability rating
- 300 V rated voltage, 2 pollution severity, III surge voltage category, > 3 mm clearance and creep age distances for control side - load side, 1.2 kVeff / 1 min Dielectric strength for control side - load side, 4 kV (1.2/50 us) Impulse withstand voltage
- 9 mm stripping length, rated connection, 0.4 to 0.6 Nm tightening torque, 0.5 to 4 sq-mm clamping range, rated connection
- 2.5 sq-mm clamping range, rated connection
- 20 to 12 AWG wire connection cross section, 0.5 to 4 sq-mm wire cross-section solid, 0.5 to 2.5 sq-mm wire connection cross-section finely stranded
- 0.5 to 1.5 sq-mm cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection and conductor cross-section, flexible, AEH (DIN 46228-1)
- 0.6 x 3.5 mm blade size
- 120 VAC control voltage
