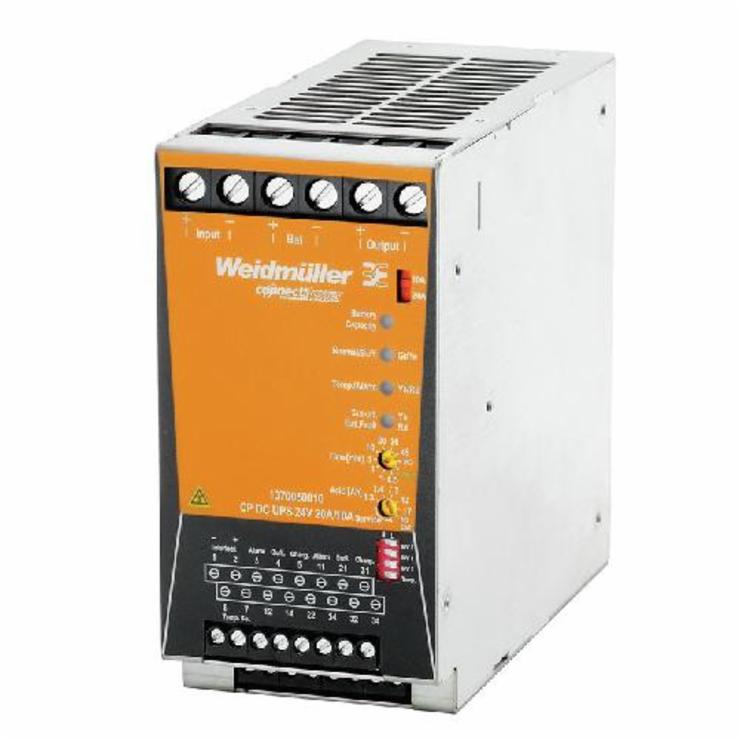

Weidmuller UPS Control Unit, 20 to 30 VDC Input, 24 VDC Output, 24/28 A, DIN Rail Mount, Metallic Case, 2.598 in Width, 5.905 in Depth, 5.118 in Height

• 5 to 95%, no condensation humidity
• -25 to 70 deg C operating temperature, -40 to 85 deg C storage temperature
• 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, selectable with rotary switch storage medium
• 0.15 CA charging current, 27, 48 VAC at 20 deg C charging voltage (temperature compensated)
• IU characteristic curve charging feature
• - 48 mV/deg C temperature coefficient
• Inversion of transistor outputs, operation without temperature probe DIP switch
• 20 A, 10 A output current selector switch
• 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, no battery, service selector switch battery
• NTC 100 kOhm Temperature probe
• 0.5, 1, 3, 5, 10, 20, 30, 45 minimum without selector switch buffer times
• Max 200 mA (without battery), max 0.5 A (with fully charged battery) DC current consumption
• <=13 A (for 10 A), <=23 A (for 20 A) input current
• Screw connection method
• 24 A at 45 deg C, 20 A at 60 deg C, 15 A at 70 deg C continuous output current at Urated, 24 A for 1 min, ED = 5% leitungs reserve at URated, 0.5 sq-mm flexible/0.6 sq-mm rigid min conductor cross-section, 1.2 to 1.5 Nm tightening torque at output, Three-color LED status indicator
• <50 mVSS at 24 VDC, in residual ripple, breaking spikes
• - 48 mV/deg C temperature coefficient, NTC 100 kOhm temperature probe at output, >120% IN current limiting, >=96% normal mode, battery is being charged, >=98% normal mode, battery is charged, >=98% buffer mode degree of efficiency, 5 to 95%, no condensation humidity
• <10 W power loss, IP20 degree protection, 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, selectable with rotary switch storage medium, 32 to 34 VDC protection against reverse voltages from the load, III surge voltage category
• 1 kV input earth/output earth electrical isolation, 2 pollution severity, 0.5 sq-mm flexible/rigid min conductor cross-section, 16 sq-mm rigid max conductor cross-section, 1.2 to 1.5 Nm tightening torque at input, 16 sq-mm flexible/rigid max conductor cross-section
• CP DC UPS 24V 20A/10A type
