CN35 lighting contactors include a 1NO maintaining auxiliary contact mounted on right hand side (on 10 A, 2 and 3-pole devices, auxiliary contact occupies 4th power pole position no increase in width). The 10 to 60 A devices will accept additional auxiliary contacts on the top and/or sides. Auxiliary contact blocks are designed for snap-on installation fast, easy installation (no tools required up to 60 A). All auxiliary contacts are of the bifurcated design with parallel circuit paths. This redundant path provides very high reliability. Auxiliary contacts can be snapped on the side (up to two circuits per auxiliary contact) and on the top (up to four circuits). Auxiliary contacts for larger contactors, 100 to 400 A sizes, will accept side mounted auxiliaries only and easily attach to the side of the contactor with two screws.

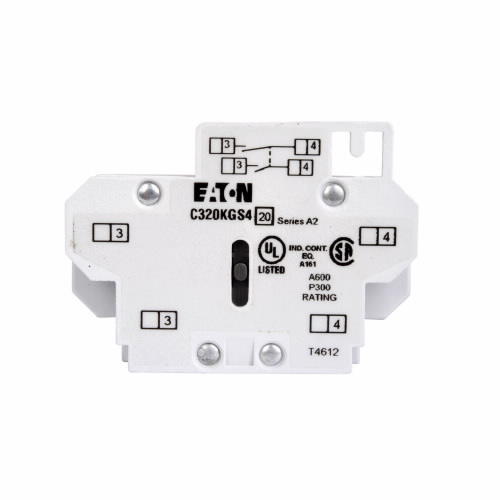

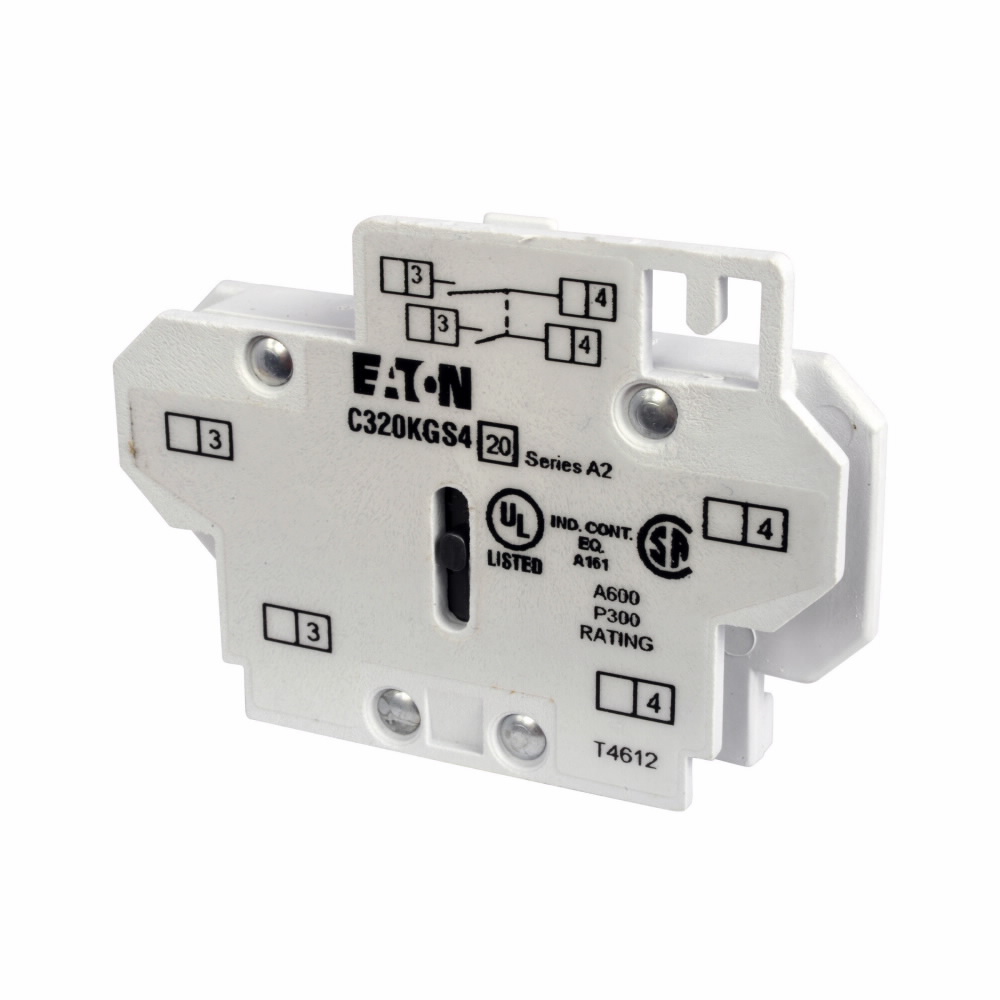

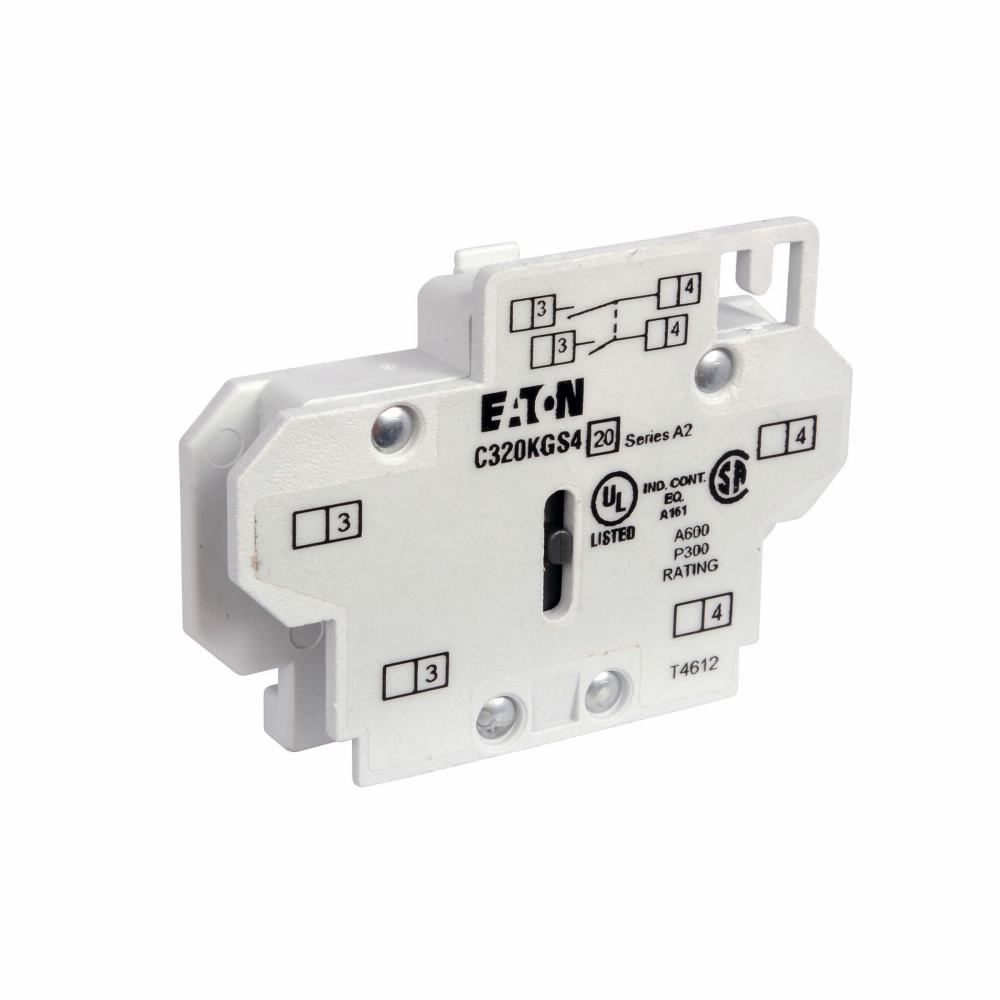

EATON Auxiliary Contact, Series: Freedom, 600 VAC, 10 A, 2 Contacts, NEMA 00 - 2/IEC Size A - K Size, Side Mounting, For Use With: Contactor and Starter

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_d6740d0b161ef6e66d127a61e51449b3c365cb1ffde4fb46a640d05591b5b69f.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_5b608f2e4d0302ff6fe71d80ca4d481df5802641dd3904649a4e947bd48b5e92.pdf
• Technical Bulletin https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_7dc3ad20cb92b867f11dcd281c8422a4ee5531976a9c11864caabd9b7a8b9bcd.pdf
