NVent ERICO CADWELD® Cathodic Connections are the preferred method of exothermically welding cathodic protection anode leads to pipes (steel or cast iron), tanks, and other structures. Cathodic protection systems are designed to prevent galvanic corrosion along a pipeline or in various structures. nVent ERICO CADWELD® Cathodic Connections use a special welding material alloy to minimize heat effect on the steel, which is especially important on thin wall and high stress pipes.

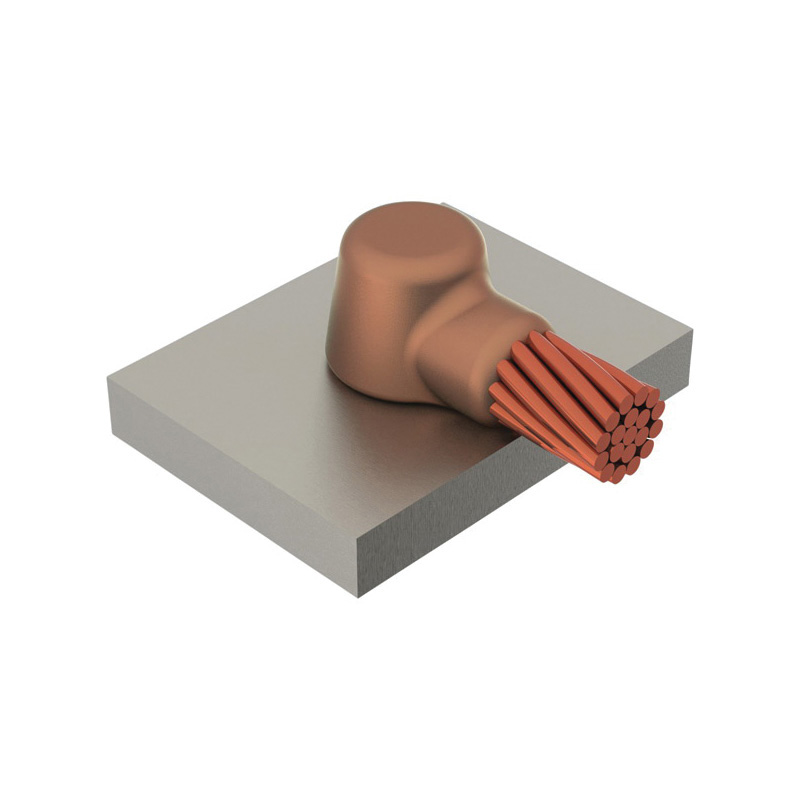

nVent ERICO CADWELD® Cathodic Mold, Type HA, 2 AWG Concentric Conductor, Cable to Horizontal Steel, A Mold Price Key, B323N2/B322 Handle Clamp, 0.292 in OD Conductor to 24 in OD Pipe

• Forms a permanent, low resistance connection
• Provides a molecular bond
• NVent ERICO CADWELD® exothermic connections are rated with the same current capacity as the conductor
• Portable installation equipment with no external source of power required
• Installers can be easily trained to make nVent ERICO CADWELD® exothermic connections
• Connections can be visually inspected
• Horizontal tap on surface
• B323N2 and B322 handle clamp sold separately
• Frame: Attached
• Preferred ease of use
• CA32/CA32PLUSF33 welding material sold separately

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/nVent_B13716_Catalog.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_4b2655468022444e7e78abb24e600e791e1fb64993e546875b5e970591e7bd63.pdf
