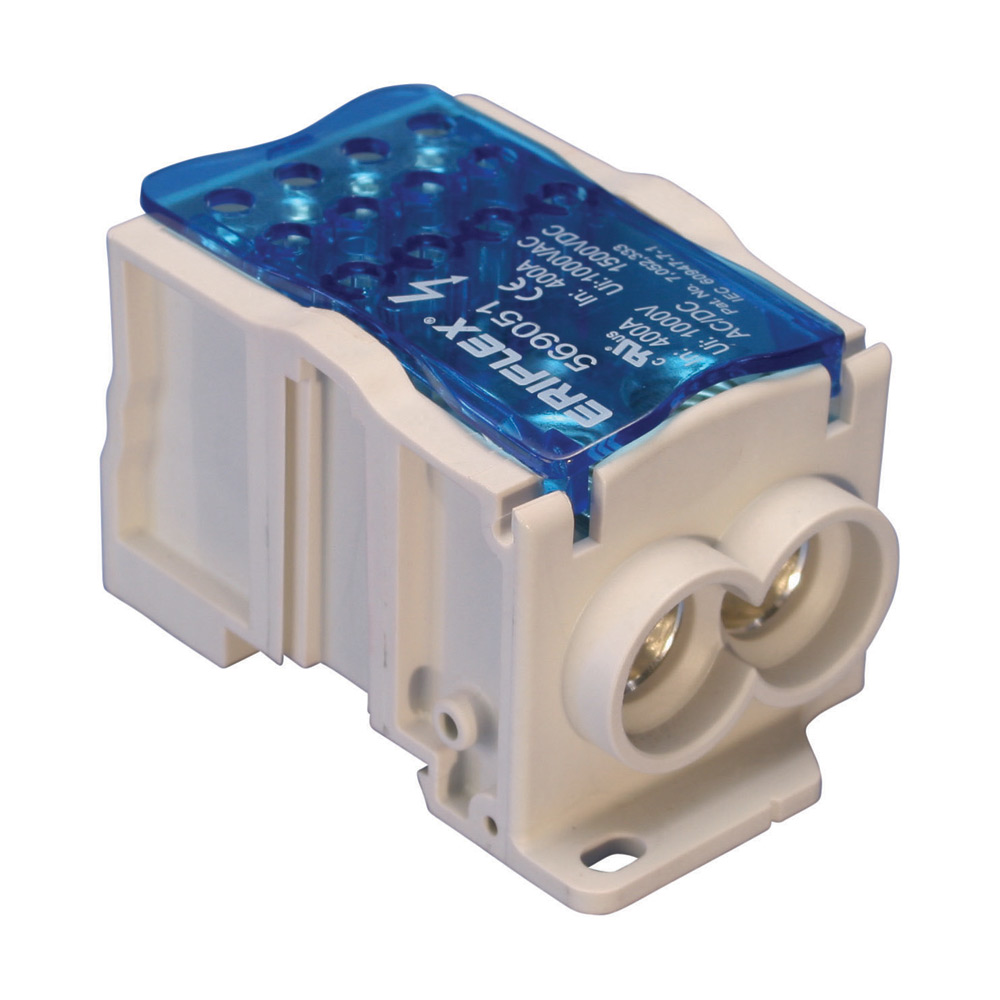

569051 Halogen Free Distribution Block, 1000 VAC/DC, 1000 VAC/1500 VDC, 400 A, 1 Poles, Copper/Thermoplastic
| Branch Name | Available |
|---|
nVent ERIFLEX Distribution Block, Halogen Free, 1000 VAC/DC, 1000 VAC/1500 VDC, 400 A, 1 Pole, 1 Primary Connections/Pole, 7 Secondary Connection/Pole, 35 to 95 sq-mm Line Side Compact Stranded Wire, 8 to 3/0 AWG Line Side Wire, (12) 2.5 to 10 sq-mm Load Side Compact Stranded Wire, (12) 2.5 to 10 sq-mm Ferrule Load Side Stranded Wire, (12) 14 to 6 AWG Load Side Wire Wire, 10 kA Short Circuit Current Rating, Copper/Thermoplastic, Tinned, 2.2 in W x 1.99 in D x 3.79 in H
| Dimensions | : | 2.2 in W x 1.99 in D x 3.79 in H |
| Finish | : | Tinned |
| Primary Connections/Pole | : | 1 |
| Secondary Connection/Pole | : | 7 |
| Short Circuit Current Rating | : | 10 kA |
| Type | : | Halogen Free |
| Voltage Rating | : | 1000 VAC/DC, 1000 VAC/1500 VDC |
| Amperage Rating | : | 400 A |
| Number of Poles | : | 1 |
| Wire Size | : | 35 to 95 sq-mm Line Side Compact Stranded Wire, 8 to 3/0 AWG Line Side Wire, (12) 2.5 to 10 sq-mm Load Side Compact Stranded Wire, (12) 2.5 to 10 sq-mm Ferrule Load Side Stranded Wire, (12) 14 to 6 AWG Load Side Wire |
| Material | : | Copper/Thermoplastic |
Instruction/Installation Manual
https://assets.unilogcorp.com/2/ITEM/DOC/nVent_UD400212CU_Installation_Instruction.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_26fb249e4c3fa0c575172cb37560c1a81b7ae8220be31691725ea9bb7cfe04d5.pdf
