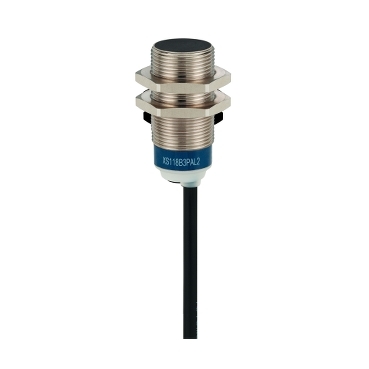

XS618B1PAL2 Proximity Sensor, Inductive, Discrete Output, 1NO, 12 to 48 VDC
| Branch Name | Available |
|---|
This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts and is CSA, UL certified.
Schneider Electric OsiSense XS Proximity Sensor, Inductive Sensing Method, 0.31 in Sensing Distance, 2 m Probe Length, Front Sensing Position, Discrete Output, 1NO, 12 to 48 VDC, 10 mA, <=1000 Hz, Cable, <=0.3 ms Response, 62 mm, IP68/IP69K, -25 to 70 deg C, Flush Mount, Metal, Environmental Conditions: 25 gn Amplitude
| Amperage Rating | : | 10 mA |
| Connection Type | : | Cable |
| Enclosure Type | : | IP68/IP69K |
| Environmental Conditions | : | 25 gn Amplitude |
| Frequency Response | : | <=1000 Hz |
| Material | : | Metal |
| Mounting Type | : | Flush |
| Probe Length | : | 2 m |
| Response Time | : | <=0.3 ms |
| Sensing Distance | : | 0.31 in |
| Sensing Position | : | Front |
| Size | : | 62 mm |
| Temperature Rating | : | -25 to 70 deg C |
| Sensing Method | : | Inductive |
| Output Type | : | Discrete |
| Contact Configuration | : | 1NO |
| Voltage Rating | : | 12 to 48 VDC |
