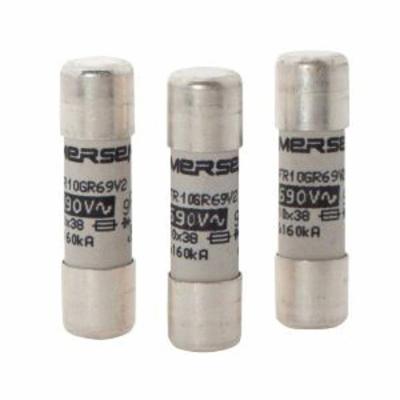

S218194 Cylindrical Style Fuse Link, 500 VAC, 10 A, For Use With 10 x 38 mm gG Class Fuse, Ceramic
| Branch Name | Available |
|---|
Mersen aM and gG fuse-links cover a wide range of physical sizes and ampere ratings for 400, 500, and 690 VAC for protection in electrical distribution circuits and various industrial applications. Most ratings are available in size 8x31 and size 10x38 with an optional indicator, and in size 14x51 and 22x58 with an optional striker to activate an auxiliary contact. Size 10x38 is also available with striker. All cylindrical fuse-links have ceramic bodies and silver-plated contacts. Cylindrical fuse-links gG are used for the protection of cables, motors and LV networks. They limit and cut off unacceptable over currents and short-circuit currents up to their nominal breaking capacity. Cylindrical fuse-links gG also protect electrical equipment and installations against the dynamic effect of high short-currents. Our technology and process was designed to ensure highly reliable technical performance.
Ferraz Shawmut Fuse Link, Cylindrical Style, 500 VAC, 10 A, 1.3 W, Rated Breaking Capacity: 120 kA, Clip Mount, For Use With: 10 x 38 mm gG Class Fuse, Ceramic, 10.2 mm Dia x 38 mm L
| Dimensions | : | 10.2 mm Dia x 38 mm L |
| Mounting Type | : | Clip |
| Power Rating | : | 1.3 W |
| Rated Breaking Capacity | : | 120 kA |
| Type | : | Cylindrical Style |
| Voltage Rating | : | 500 VAC |
| Amperage Rating | : | 10 A |
| Suitable For Use With | : | 10 x 38 mm gG Class Fuse |
| Material | : | Ceramic |
