Non Stock

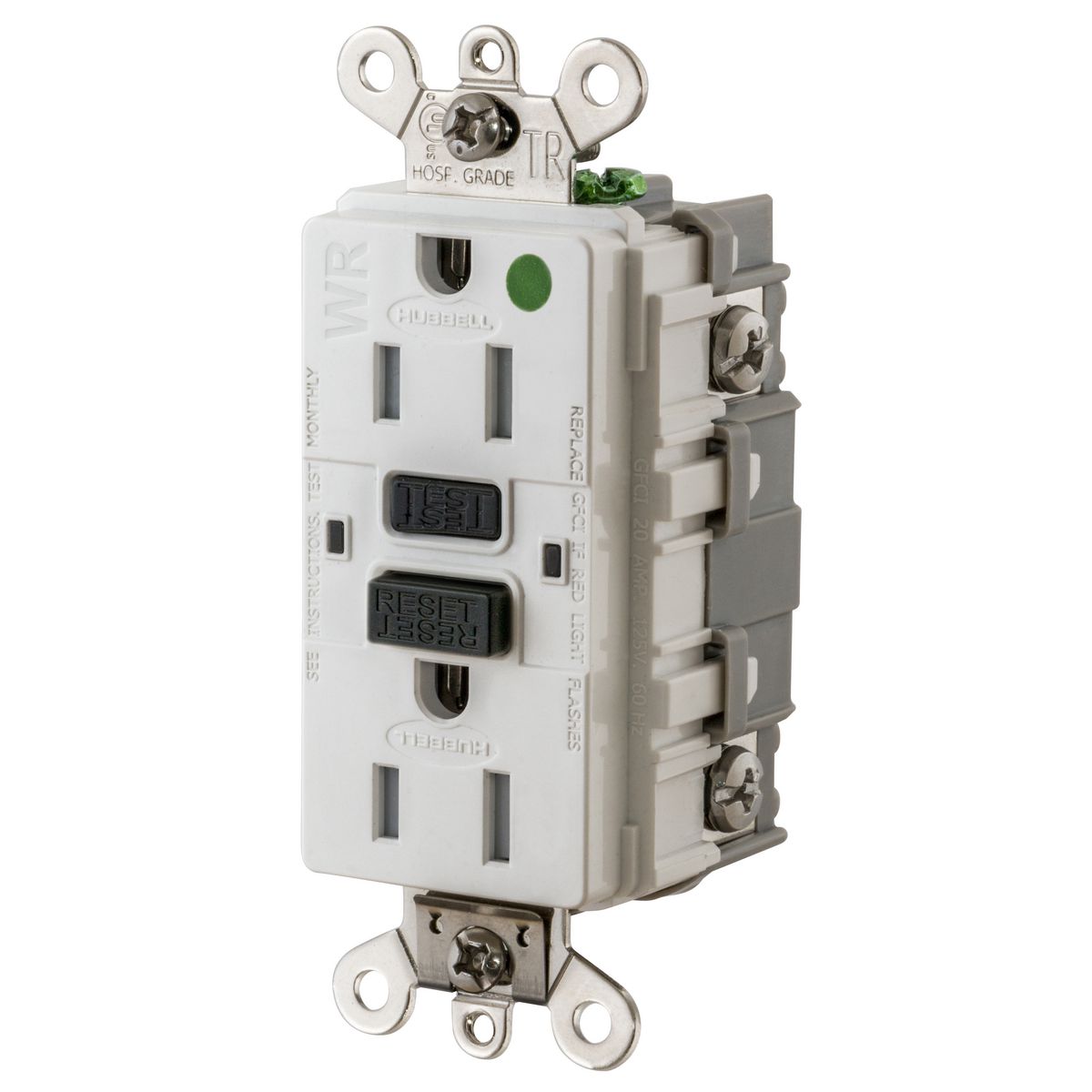

GF8200SGW Duplex Extra Heavy Duty Feed-Through Grounding Tamper-Resistant Weather-Resistant GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
| Branch Name | Available |
|---|
Hubbell's exclusive extra heavy duty industrial GFR is specifically designed and built to withstand demanding applications and environments. Factory equipment, portable generators and waste water treatment plants are just a few of the many challenging installations requiring an additional level of performance. The industrial GFR meets these unique applications through innovative design, superior materials and a corrosion resistant robust construction. This safety solution includes tamper-resistant (TR) and weather resistant (WR) as standard construction.
Wiring Device-Kellems GFCI Receptacle, Duplex Extra Heavy Duty Feed-Through Grounding Tamper-Resistant Weather-Resistant, 125 VAC, 15 A, 60 Hz, 2 Pole, 3 Wires, NEMA 5-15R, Grade: Industrial/Hospital, -35 to 66 deg C, Back/Side Wired Terminal, Polyester, White, 3.28 in H x 1.75 in W x 1.48 in D
| Dimensions | : | 3.28 in H x 1.75 in W x 1.48 in D |
| Frequency Rating | : | 60 Hz |
| Grade | : | Industrial/Hospital |
| Material | : | Polyester |
| NEMA Rating | : | NEMA 5-15R |
| Temperature Rating | : | -35 to 66 deg C |
| Terminal Type | : | Back/Side Wired |
| Type | : | Duplex Extra Heavy Duty Feed-Through Grounding Tamper-Resistant Weather-Resistant |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
Specification Sheet
