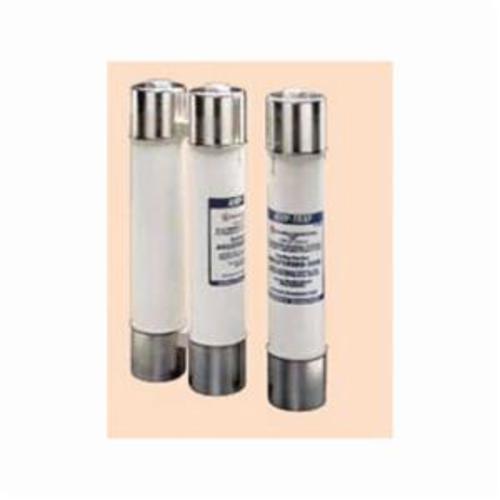

9F60FPK002 Current Limiting Power Fuse, 2 A, 3800 VAC, 26 kA Interrupt, Class E
| Branch Name | Available |
|---|
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2 (size C), 3 (size D) and 4 (size E) in diameter barrels with ferrules and are mounted in spring reinforced clips.

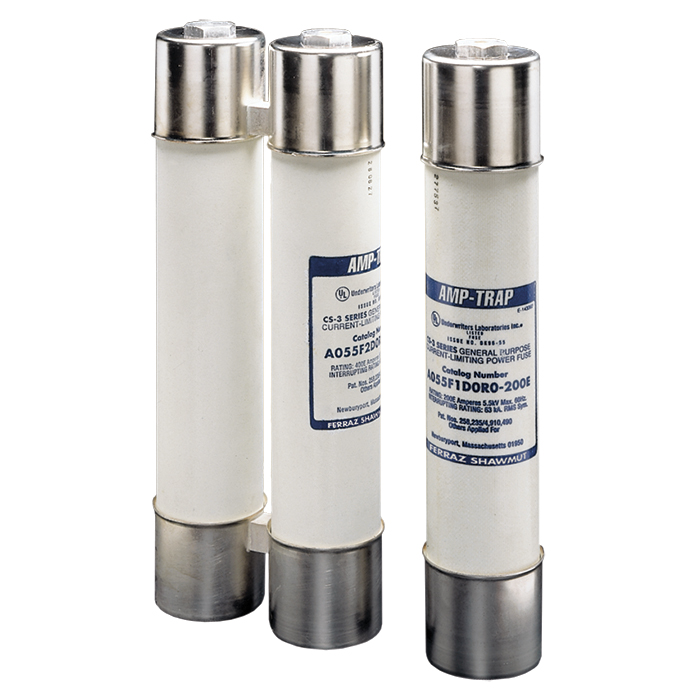

Ferraz Shawmut Amp-Trap® Current Limiting Power Fuse, Series: 9F60, Indicating/Non-Indicating: Indicating, 2 A, 3800 VAC, 26 kA Interrupt, Class: E, Ferrule Terminal, Clip Mount, 3 in Dia x 30.81 in L Body Size
| Body Size | : | 3 in Dia x 30.81 in L |
| Indicating/Non-Indicating | : | Indicating |
| Mounting Type | : | Clip |
| Series | : | 9F60 |
| Terminal Type | : | Ferrule |
| Amperage Rating | : | 2 A |
| Voltage Rating | : | 3800 VAC |
| Interrupt Rating | : | 26 kA |
| Class | : | E |
