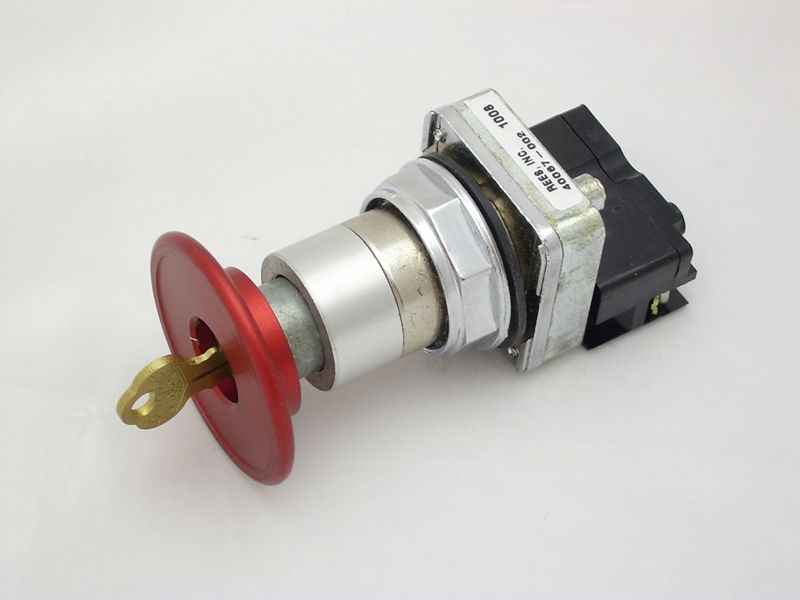

Rees; Switch; Push-Pull, 3 In 1 Lockable And Illuminated Operator; Actuator: Hand Operated; Action: Maintained; Operating Temperature: 0 To +55 DEG C; Inrush Current: 60, 30, 15, 12 AMP; Note: Operating Temperatures At 0 DEG C Are Based On The Absence Of Freezing Moisture And Liquids; Mechanical Life: 1000000 Operations; Material: Die Cast Zinc Body; Storage Temperature: -40 To +85 DEG C; Nema Rating: 12/13; Plunger Size: 2 IN; Plunger Style: Flat Aluminum Locks When Depressed; Old Catalog Number: R67W; Contact Blocks Included: 50701-NO; Plunger: Anodized Aluminum; Pilot Light (xfmr): No; Key/plunger Operation Key Removeable Locked/unlocked: # 5 Key, Removable Locked Or Unlocked, Required To Reset; Operator Color: Red; Ip: 65; Normal Potential: 110 - 120 VAC, 220 - 240 VAC, 440 - 480 VAC, 550 - 600 VAC Power Factor 0.35 Or Less; 115 - 125 VDC, 230 - 250 VDC Inductive Loads As Specified In Section 125 Of Industrial Control Devices, Controllers And Assemblies, ANSI / NEMA ICS 2-1988; Normal Current: 6, 3, 1.5, 1.2, 2.2, 1.1 AMP

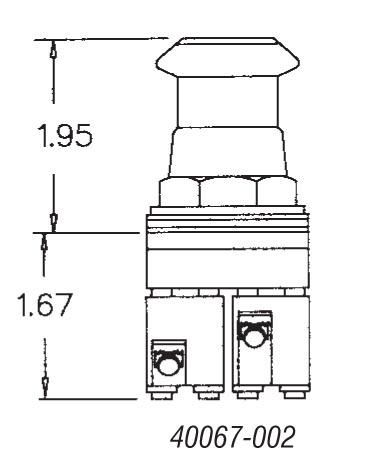

• Line Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_c0b6c24d7d999145dca3ccc85a2dfe7af67aadc08317f18a192ecac1216ddb6a.jpg
