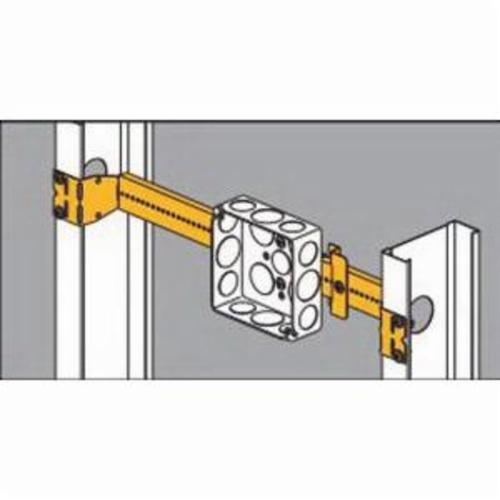

The B-Line series telescoping box mounting bracket and box mounting clip allow for pre-fabrication of the box assembly which helps reduce time on job sites. The bracket features a unique flange end that can mount multiple box depths beyond the standard 2-1/8 in deep boxes. The bracket has increased rigidity to help withstand drywall installation.

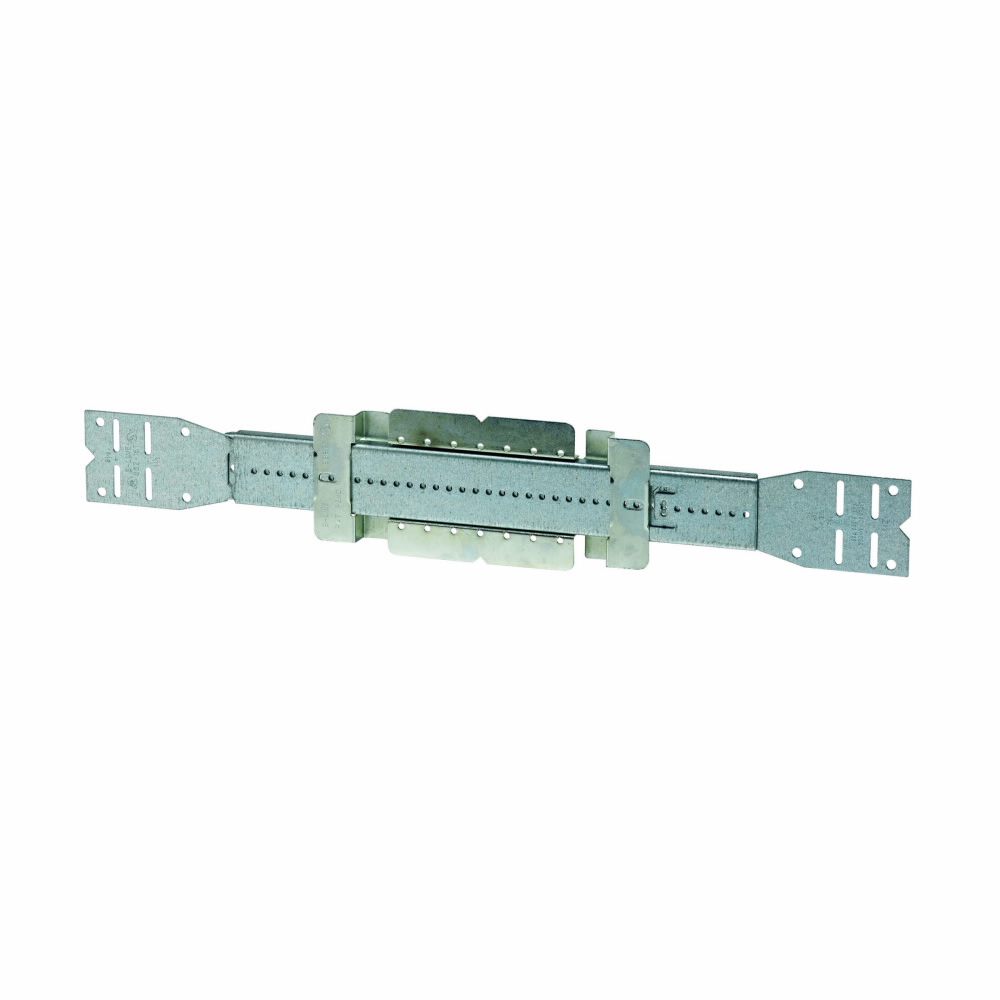

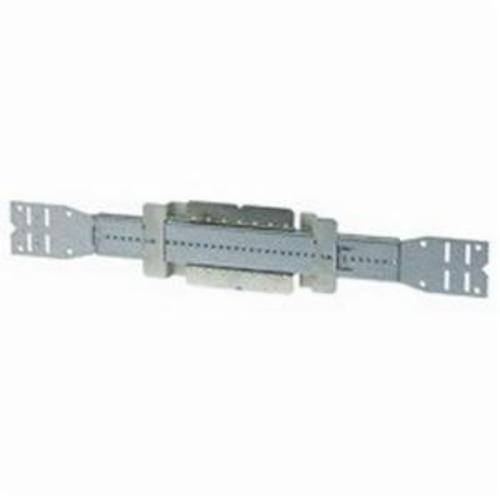

B-Line Box Mounting Bracket, Telescoping, 11 to 18 in Stud Spacing, Threaded Mounting, For Use With: Stud and Box Fasteners, Steel, Galvanized

• Box can be attached to slider bracket before or after slider is installed on telescoping bracket
• Box location can be field adjusted by moving slider along telescoping bracket
• Increased rigidity through center groove design
• Flange ends can be cut and bent to mount multi-gang, 5 in square, masonry and speaker/strobe boxes
• Tool less box mounting clip attaches electrical box to bracket without hardware
• Pipe/conduit clamps require no hardware to install and provide support anywhere between the stud
• Copper pipe insulator provides protection of differing metals
