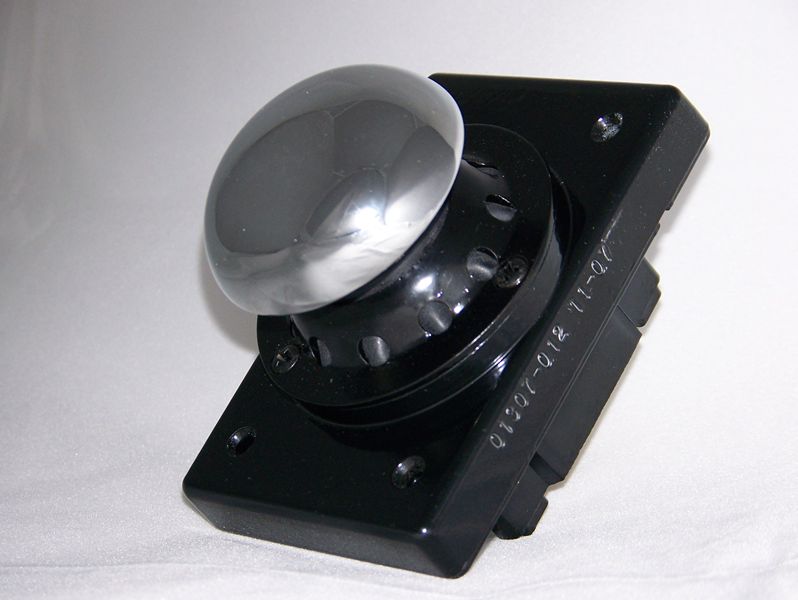

Rees; Switch; Action: Momentary, Slow-Make/Slow-Break; Contact Configuration: #09 NO + NC; Actuator: Hand Operated; Operating Temperature: 0 To +55 DEG C; Note: Operating Temperatures At 0 DEG C Are Based On The Absence Of Freezing Moisture And Liquids; Inrush Current: 60, 30, 15, 12 AMP; Mechanical Life: 1000000 Operations; Storage Temperature: -40 To +85 DEG C; Nema Rating: 12/13; Wire Size: 14/2 AWG Stranded; Operating Force: 9 LB; Positive Opening Contact: Yes; Iec Rating: Utilization = A 600, AC 15, N 300, DC 13, Ue = 600 VAC; Ue = 250 VDC, Ui = 600 VAC, Uimp = 2.5 KV; Ith = 10 AMP; Plunger Size: 2.250 IN; Plunger Style: Mushroom; Old Catalog Number: 1307; Ip: 65; Plunger: Chrome Plated, Die Cast Zinc; Cover: Black, Dry Powder Painted, Die Cast Zinc; Contact Finish: Gold Plated; Normal Potential: 110 - 120 VAC, 220 - 240 VAC, 440 - 480 VAC, 550 - 600 VAC Power Factor 0.35 Or Less; 115 - 125 VDC, 230 - 250 VDC Inductive Loads As Specified In Section 125 Of Industrial Control Devices, Controllers And Assemblies, ANSI / NEMA ICS 2-1988; Normal Current: 6, 3, 1.5, 1.2, 2.2, 1.1 AMP

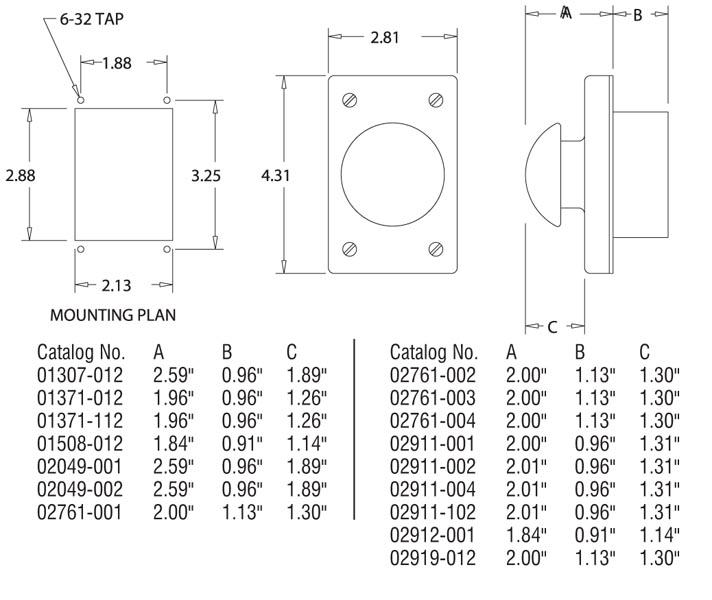

• Line Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_5dad2da83ee04707033bec20d6f8ab69ce3274d67e79caa46721f15ebc0b3c0e.jpg
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_4641a1a7ea658bda15587c791ab135335be938fdf70f34b2f25159cc91bd69bb.pdf
