The OMNIIR uses passive infrared (PIR) technology to turn lighting ON and OFF based on occupancy. Designed specifically for areas with long range major motion activity, this sensor features Hubbell® controls patented IntelliDAPT® technology, which makes all the sensor adjustments automatically. Throughout the products lifespan, IntelliDAPT® software analyzes the controlled area and makes digital adjustments to sensitivity and timer settings. Occupancy sensors with IntelliDAPT® technology provide a maintenance free install and forget operation.

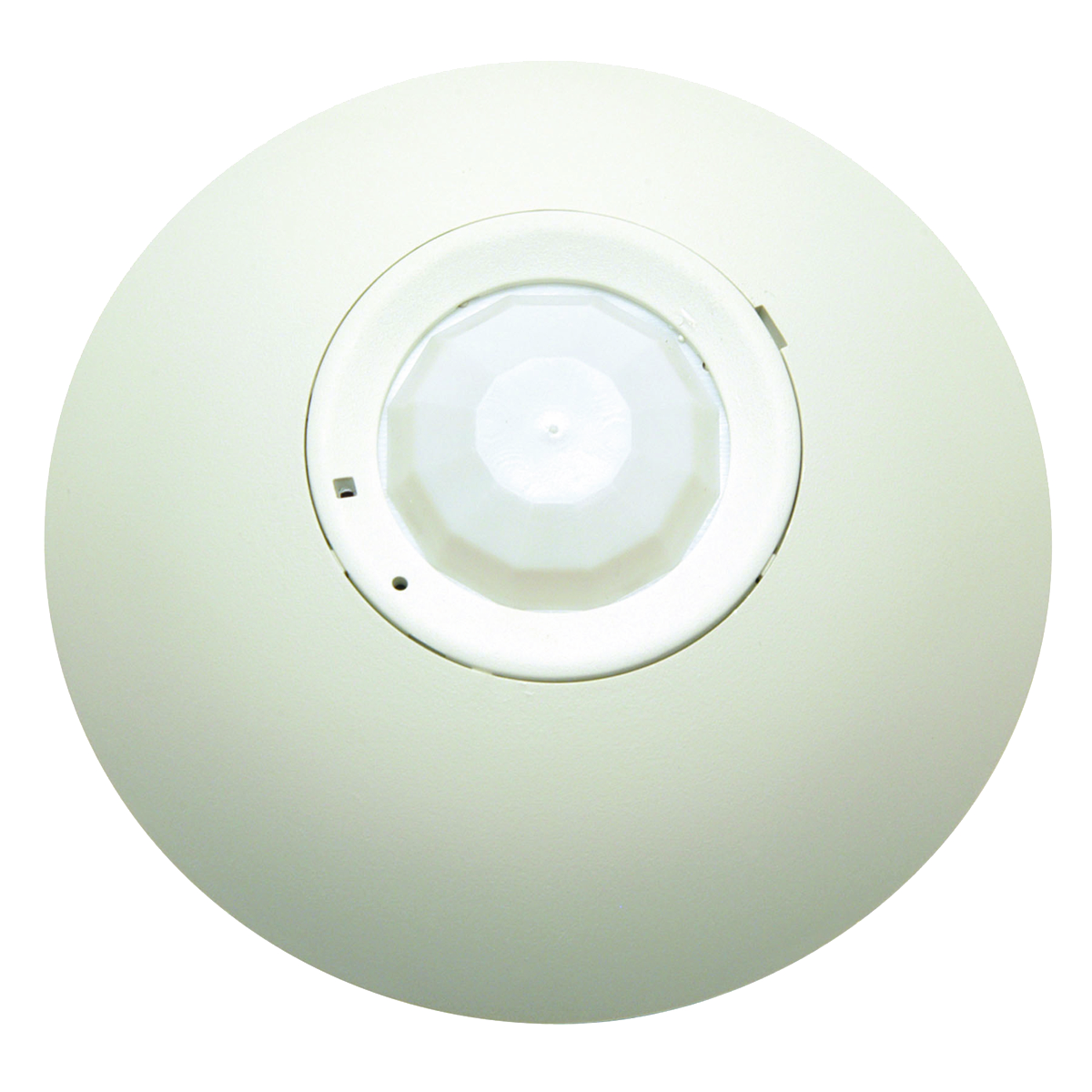

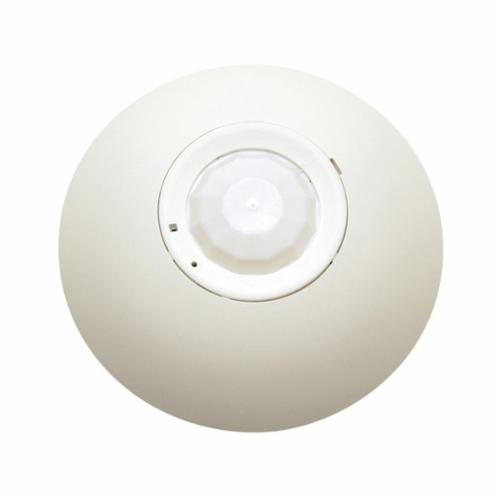

Hubbell Control Solutions OMNI® Occupancy Sensor, Low Voltage, Series: OMNI, 24 VDC, 33 mA, Passive Infrared Sensor, 450 sq-ft Coverage, 8 to 30 min Delay, LED Lamp, Ceiling/Surface Mount, 32 to 104 deg F, ABS, Off-White, 4-1/2 in Dia x 1-1/2 in H

• Low voltage passive infrared ceiling mounted occupancy sensor featuring IntelliDAPT®
• Recommended mounting height is 8 ft with a max mounting height of 12 ft
• Auto reset from test setting, self-adjusting timer, self-adjusting ultrasonic thresholds, automatic false ON/false OFF corrections
• Non-volatile memory for sensor settings
• Casing- rugged, high impact, injection molded plastic KJB ABS cycolac UL 945VA flame class rating, UV inhibitors construction
• 24 VDC active high logic control signal with short circuit protection and optional dry contact
• 0 to 95% non-condensing relative humidity
• IntelliDAPT® technology

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_37be426d71d184019c732ba5caed6f2911826697a72f59f68dbc78f9cbf6e843.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_6eeaa064b4a16bea0608b5610c7fd84944ff486b971bfd8ade3e0059a58c7bf9.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_49f5b12a356363862a12122f657848b1b1d5cb08d651180509107d433ad2fd49.pdf
• Warranty Information https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_dcc7a49b7dbcebea18c4944cc58965d6369a53865af5545c47f0500c86dc7c7c.pdf
