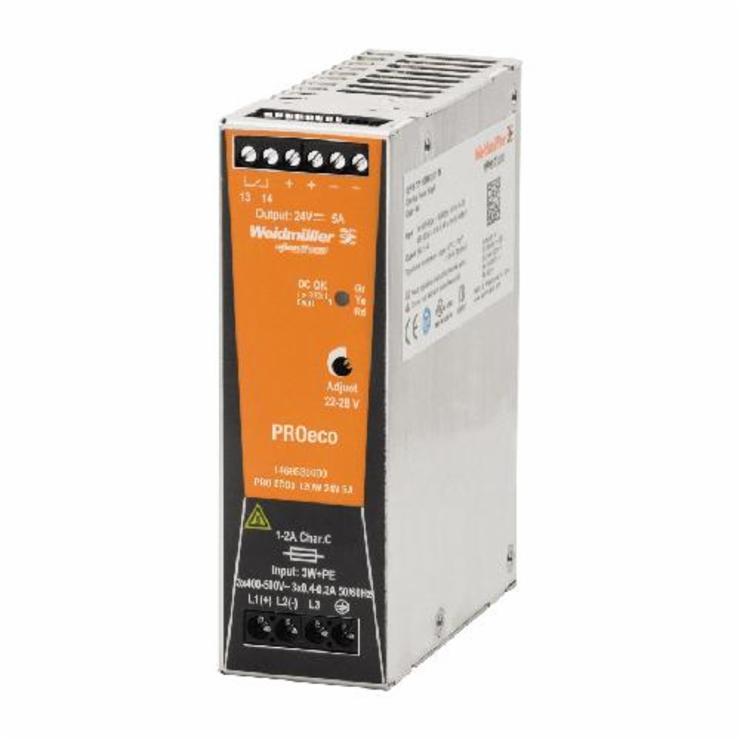

Weidmuller Power Supply Unit, Switch Mode, 450 to 800 VDC Input, 24 VDC Output, 120 W, 5 A, 47/63 Hz, DIN Rail Mount, Metallic Case, 1.575 in Width, 3.937 in Depth, 4.921 in Height

• 0.3 A at 3 x 500 VAC/0.4 A at 3 x 400 VAC current consumption, 0.2 A at 800 VDC/0.4 A at 450 VDC current consumption
• -25 to 70 deg C operating temperature, -40 to 85 deg C storage temperature
• Max 40 A inrush current
• 3 x 400 to 3 x 500 VAC (wide range input) rated input voltage, 2 A/DI, safety fuse 2 to 3 A, Char C, circuit-breaker recommended back-up fuse
• Screw connection method
• 5 A at 55 deg C, 3,75 A at 70 deg C continuous output current at Urated
• <=100 ms ramp-up time, 24 VDC +/- 1% rated output voltage, 5 A at 55 deg C rated (nominal) output current at Unom, <50 mVSS at 24 VDC, IN residual ripple, breaking spikes
• >40 ms at 3 x 500 VAC/>20 ms at 3 x 400 VAC AC failure bridging time at Inom, 87% degree of efficiency, 3.5 mA max earth leakage current, LED green (Uoutput >21.6 VDC), LED yellow (Ioutput >90% IRated type), LED red (overload, over temperature, short circuit, Uoutput <20.4 VDC) indication
• 13 W power loss, nominal load, 30 to 35 VDC protection against reverse voltages from the load, 6 W power loss, idling, IP20 deg protection, >500000 hr to IEC 1709 (SN29500 MTBF, >0.55 at 3 x 500 VAC/>0.65 at 3 x 400 VAC power factor
• 0.5 kV output earth, 2 kV input earth, 3 kV input output Insulation voltage
• 0.5 sq-mm flexible/rigid minimum conductor cross-section, 26 AWG/kcmil minimum conductor cross-section, 6 sq-mm rigid max conductor cross-section, 2.5 sq-mm flexible max wire connection cross-section at input
• 0.5 sq-mm flexible/rigid minimum conductor cross-section, 26 to 12 AWG/kcmil conductor cross-section, 6 sq-mm rigid max conductor cross-section, 2.5 sq-mm flexible max wire connection cross-section at output
• 0.5 to 0.6 Nm tightening torque at input output
• Max 30 VDC/1 A contact load (NO contact)
• Output voltage >21.6 VDC/<20.4 VDC, overload relay ON/OFF
• PRO ECO3 120W 24V 5A type
