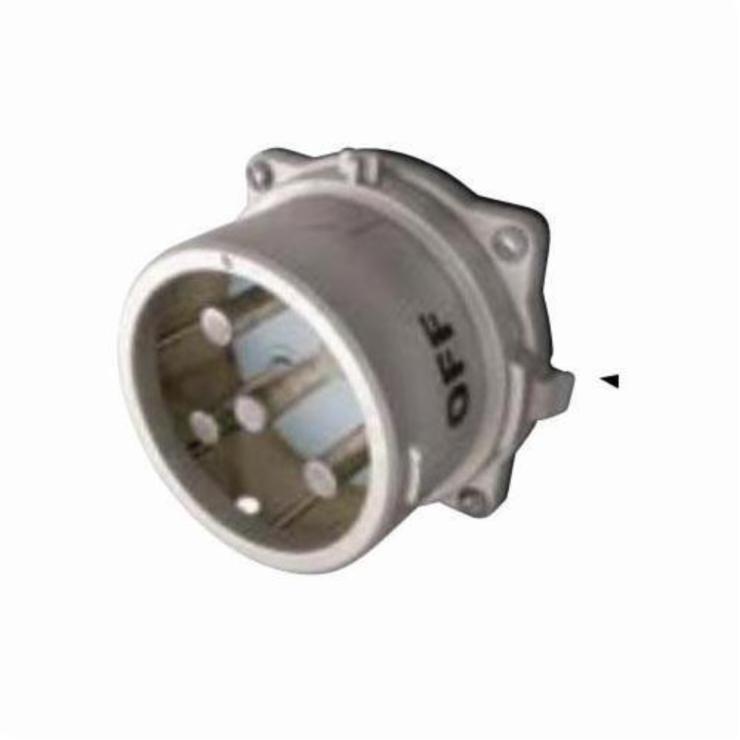

MELTRIC DECONTACTOR™ 37-28073 DS200 Switch Rated Male Inlet With Ground, 110/125/220/250 VAC, 200 A, 3 Poles, 4 Wires, Blue
| Branch Name | Available |
|---|
Sold as: Pack of EACH CORRUGATED BOX
DS Series DECONTACTOR™ provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
MELTRIC DECONTACTOR™ Male Inlet, Switch Rated, Series: DS200, 110/125/220/250 VAC, 200 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Metal, Blue, 5.12 in Dia x 3.11 in L Dimensions
| Dimensions | : | 5.12 in Dia x 3.11 in L |
| Enclosure | : | IP54/IP55 |
| Frequency Rating | : | 60 Hz |
| Material | : | Metal |
| NEMA Rating | : | NEMA 3R |
| Series | : | DS200 |
| Temperature Rating | : | -40 to 140 deg F |
| Terminal Type | : | Screw |
| Type | : | Switch Rated |
| Voltage Rating | : | 110/125/220/250 VAC |
| Amperage Rating | : | 200 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Blue |
