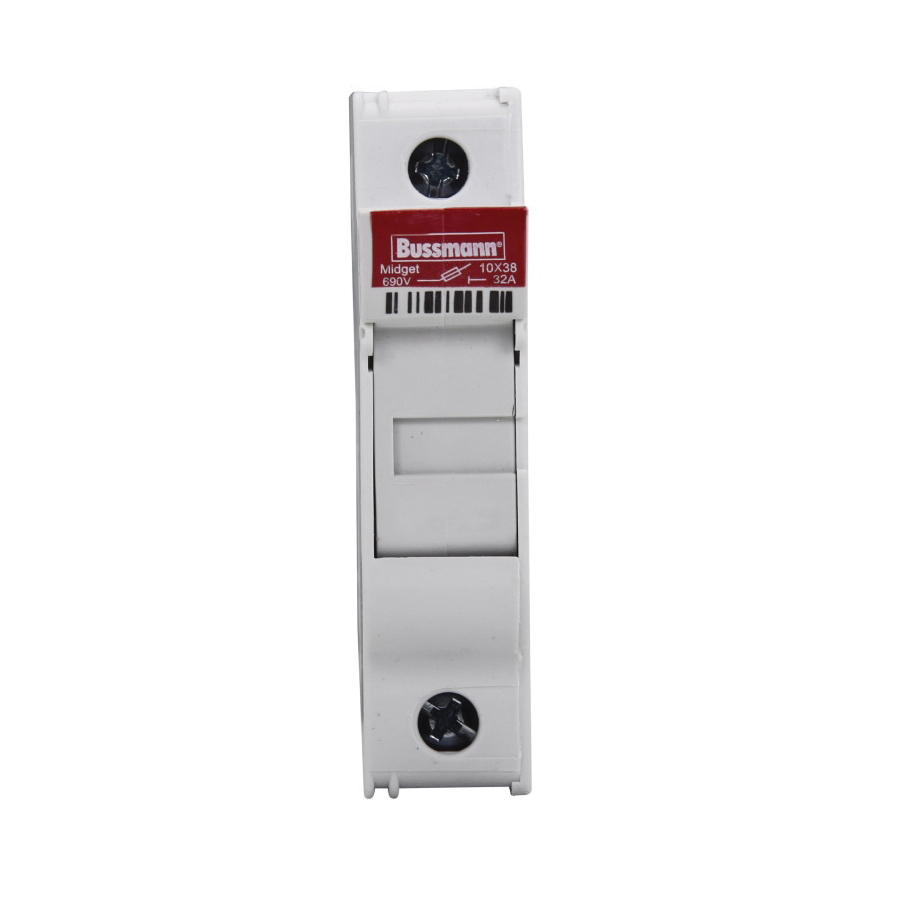

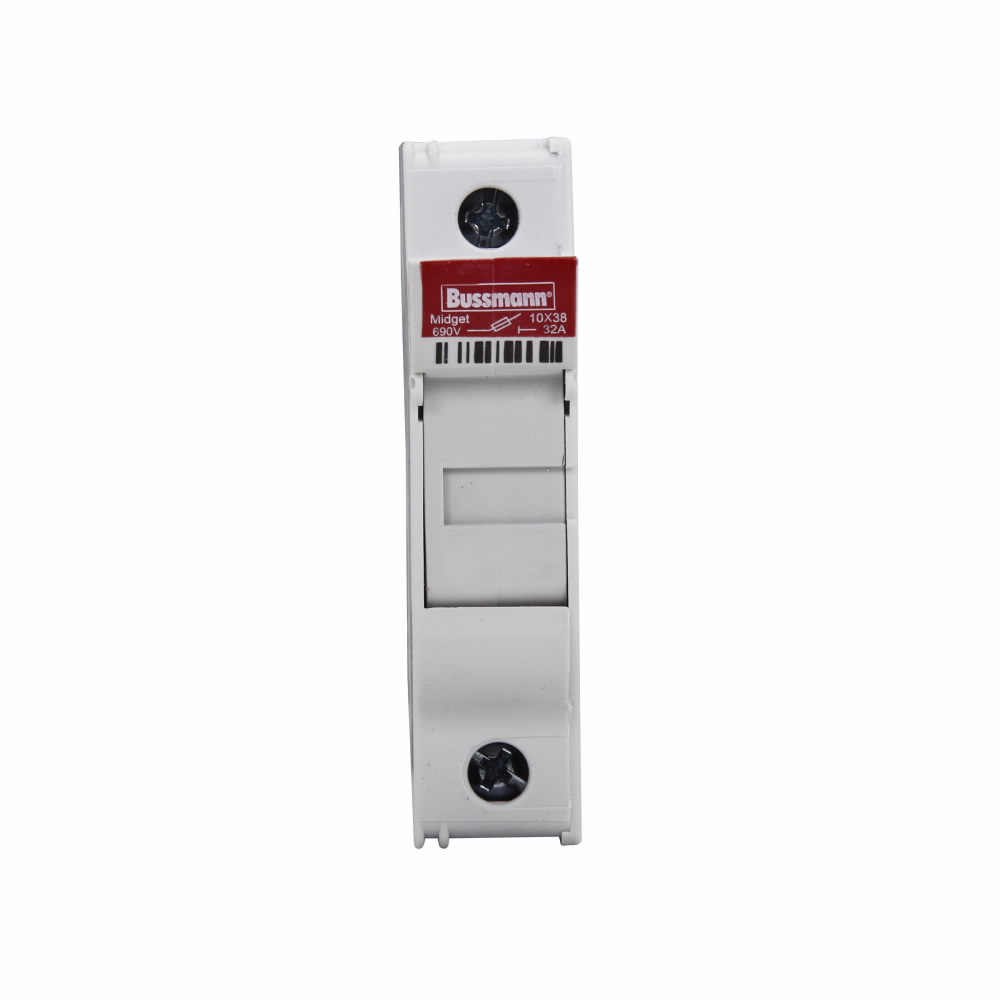

CHM1DCU Non-Indicating Modular Fuse Holder, 600/690 VAC, 1000 VDC, 30/32 A, 18 to 4 AWG Wire, 1 Poles
| Branch Name | Available |
|---|
Bussmann Fuse Holder, Non-Indicating Modular, Series: CHM, 600/690 VAC/1000 VDC, 30/32 A, 1 Pole, Class: Midget, 18 to 4 AWG Wire, DIN Rail Mounting, 38 mm Fuse Length, 10 mm Diameter Fuse, -4 to 248 deg F, For Use With: 600/690 VAC BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, AGU, C10G, C10M, 1000 VDC PV-(amp)A10F, PV10M-(amp) Series Fuse, 2.909 in H x 0.689 in W x 3.275 in D Dimensions
| Class | : | Midget |
| Dimensions | : | 2.909 in H x 0.689 in W x 3.275 in D |
| Fuse Diameter | : | 10 mm |
| Fuse Length | : | 38 mm |
| Mounting Type | : | DIN Rail |
| Series | : | CHM |
| Suitable For Use With | : | 600/690 VAC BAF, BAN, FNM, FNQ, FWA, FWC, KLM, KTK, AGU, C10G, C10M, 1000 VDC PV-(amp)A10F, PV10M-(amp) Series Fuse |
| Temperature Rating | : | -4 to 248 deg F |
| Type | : | Non-Indicating Modular |
| Voltage Rating | : | 600/690 VAC, 1000 VDC |
| Amperage Rating | : | 30/32 A |
| Wire Size | : | 18 to 4 AWG |
| Number of Poles | : | 1 |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/Bussmann_CHCC1DI_48U_Catalog.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_32939430b3778b0ce1e96bd2aab070022e6270f44495f082e7eb775f780bc0b9.pdf
