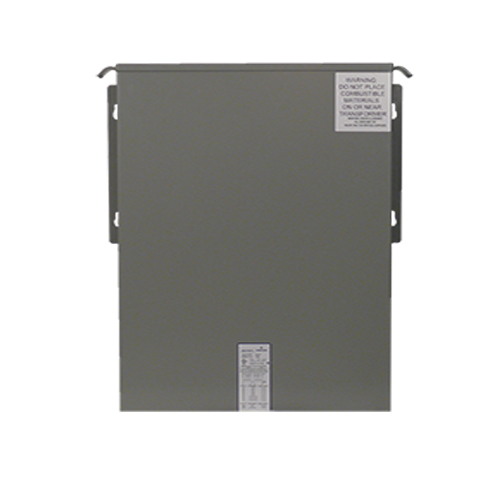

HS10F1.5AS Encapsulated Non-Ventilated Automation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 1.5 kVA, 60 Hz, 1 Phase
| Branch Name | Available |
|---|
SolaHD encapsulated transformers are rated for hazardous locations as well as harsh industrial environments. Encapsulation and rugged UL listed/NEMA type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the national electric code for class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
SolaHD Automation Transformer, Encapsulated Non-Ventilated, Series: HS10, 600 VAC Primary, 120/240 VAC Secondary, 1.5 kVA, 60 Hz, 1 Phase, 2.5/12.5/6.25 A Maximum, Lead Wire, Wall Mount, 200 deg C, NEMA 3R, 115 deg C, Rolled Steel Housing, 7 in L x 10 in W x 12 in H
| Connection Type | : | Lead Wire |
| Dimensions | : | 7 in L x 10 in W x 12 in H |
| Enclosure Type | : | NEMA 3R |
| Housing Material | : | Rolled Steel |
| Insulation | : | 200 deg C |
| Maximum Amperage Rating | : | 2.5/12.5/6.25 A |
| Mounting Type | : | Wall |
| Series | : | HS10 |
| Temperature Rating | : | 115 deg C |
| Type | : | Encapsulated Non-Ventilated |
| Primary Voltage | : | 600 VAC |
| Secondary Voltage | : | 120/240 VAC |
| Power Rating | : | 1.5 kVA |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 |
