Non Stock

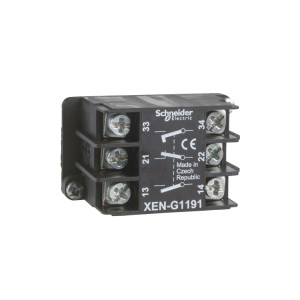

XENG1191 2-Speed Single Contact Block, 2NO-1NC Contact, 10 A at 600 VAC Contact, 2 Poles, For Use With Type K/KX/SK Pushbutton Switches
| Branch Name | Available |
|---|
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Schneider Electric Harmony™ Contact Block, 2-Speed Single, Series: XENG, 22 mm, 2NO-1NC, 10 A at 600 VAC Contact, 2 Pole, For Use With: Type K/KX/SK Pushbutton Switches, Screw Clamp Terminal, Front, Black
| Color | : | Black |
| Mounting | : | Front |
| Series | : | XENG |
| Size | : | 22 mm |
| Terminal Type | : | Screw/Clamp |
| Type | : | 2-Speed Single |
| Contact Configuration | : | 2NO-1NC |
| Contact Rating | : | 10 A at 600 VAC |
| Number of Poles | : | 2 |
| Suitable For Use With | : | Type K/KX/SK Pushbutton Switches |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/Schneider_Electric_ZBRM22_Catalog.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_a3619c50c62e664f3133afa33c33d9c9a54f818611e7a936c3f1f8e4e32a62d5.pdf
Video Link
https://www.youtube.com/watch?v=P5ukp5nsyNI&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
