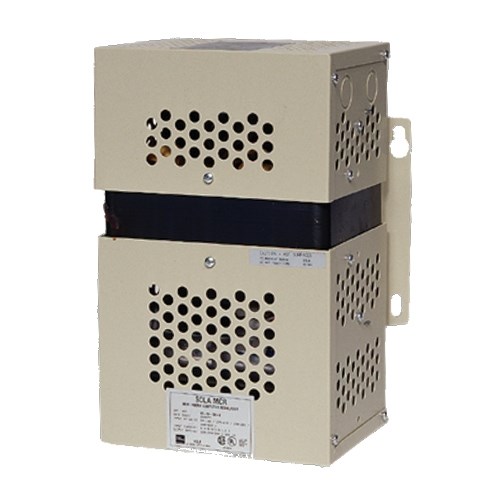

23-23-125-8 CVS Constant Voltage Transformer, 120/240/480 VAC Primary, 120 VAC Secondary, 250 VA, 60 Hz, 1 Phase
| Branch Name | Available |
|---|
Superior voltage regulation of +/-1% sets the CVS series apart from other power conditioning technologies on the market. Extremely tight regulation is accomplished by SolaHD's ferroresonant transformer technology.
SolaHD Constant Voltage Transformer, Series: CVS, 120/240/480 VAC Primary, 120 VAC Secondary, 250 VA Power, 60 Hz Frequency, 1 ph, 2.1/1/0.5 A Maximum, 2 Taps, Panel Mounting, -20 to 50 deg C, 92 % Efficiency, 8 in H x 4 in W x 5 in D Dimensions
| Dimensions | : | 8 in H x 4 in W x 5 in D |
| Efficiency | : | 92% % |
| Maximum Amperage Rating | : | 2.1/1/0.5 A |
| Mounting Type | : | Panel |
| Number of Taps | : | 2 |
| Series | : | CVS |
| Temperature Rating | : | -20 to 50 deg C |
| Primary Voltage | : | 120/240/480 VAC |
| Secondary Voltage | : | 120 VAC |
| Power Rating | : | 250 VA |
| Frequency Rating | : | 60 Hz |
| Phase | : | 1 |
