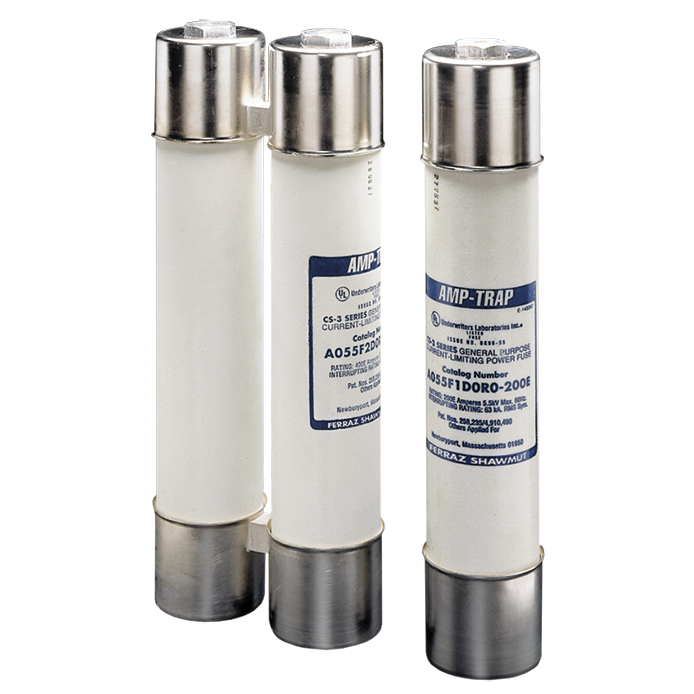

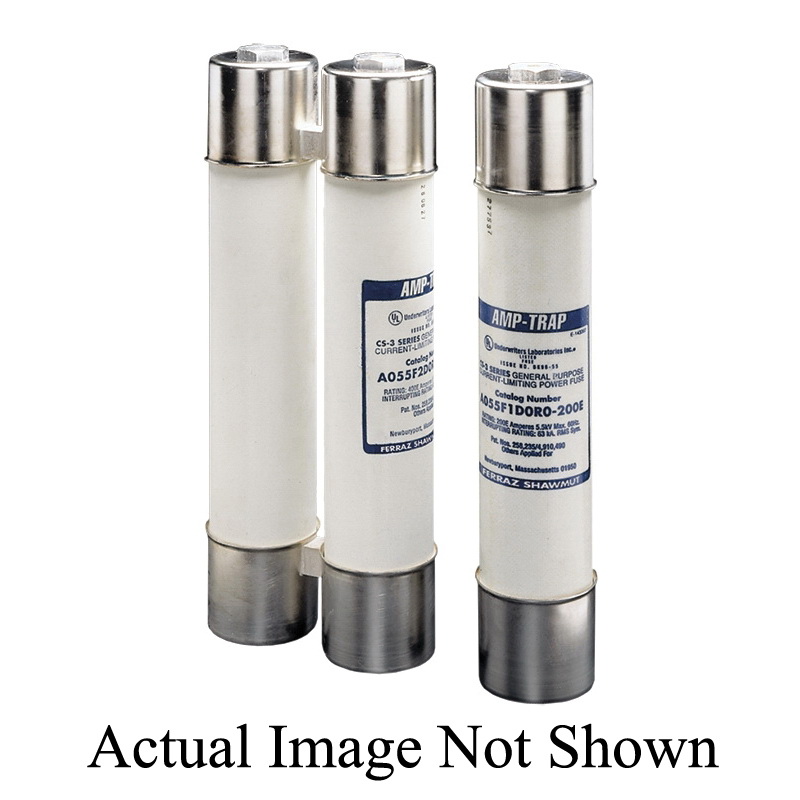

9F60DJE007 Type EJO1 1-Barrel Medium Voltage Power Distribution Fuse, 7 A, 8.25 kVAC, 50 kA, Class E, Ferrule Body
| Branch Name | Available |
|---|
MERSEN fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2 in (size C), 3 in (size D) and 2 x 3 in (size DD) in diameter barrels with ferrules and are mounted in spring reinforced clips.
Ferraz Shawmut Power Distribution Fuse, Type EJO1 1-Barrel Medium Voltage, Series: 9F60DJE, Indicating, 7 A, 8.25 kVAC, 50 kA Interrupt, Class: E, Ferrule Terminal, Clip Mount, Ferrule Body, Epoxy/Poly Tube, 2.12 in Dia x 14.18 in L Body Size
| Body Size | : | 2.12 in Dia x 14.18 in L |
| Indicating/Non-Indicating | : | Indicating |
| Material | : | Epoxy/Poly Tube |
| Mounting Type | : | Clip |
| Series | : | 9F60DJE |
| Terminal Type | : | Ferrule |
| Type | : | Type EJO1 1-Barrel Medium Voltage |
| Amperage Rating | : | 7 A |
| Voltage Rating | : | 8.25 kVAC |
| Interrupt Rating | : | 50 kA |
| Class | : | E |
| Body Type | : | Ferrule |
