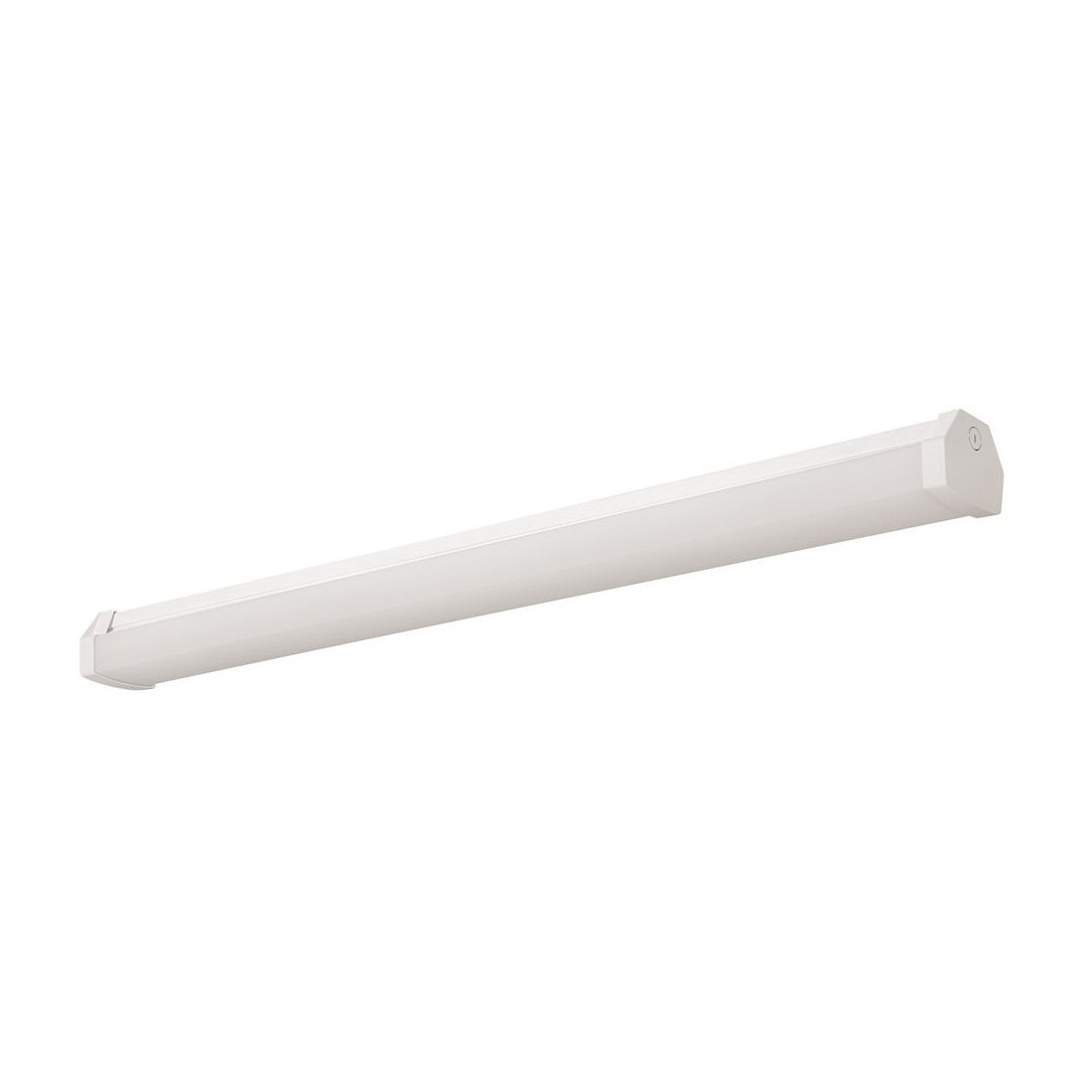

FluxStream LED wraparound is a high performing luminaire delivering smooth diffuse light ideal for light industrial, commercial and residential applications with the unparalleled energy efficiency of Philips LED lighting.

Signify Luminaires Day-Brite Wraparound, Linear, Series: FluxStream FSWEZ, 120 to 277 VAC, 32 W Fixture, LED Lamp, 50000 hr Average Life, 4000 K Color, 80 CRI, Frosted Acrylic Diffuser Lens, 4000 Lumens, Surface Suspended Mount, Cold Rolled Steel Housing, Baked White Painted Housing, 4 ft L x 4-1/16 in W x 3-3/8 in H

• Compact design for installation in tight spaces
• Frosted acrylic diffuser provides wide light distribution and superior glare control
• Injection molded lens retainers provide positive diffuser retention and easy tool free access to LED boards and driver
• Up to 500000 hr predicted l70 LED lumen maintenance provides long service life to reduce maintenance costs
• Can be surface mounted on ceilings or walls or suspended via chain, pendants or cables
• FSWJ accessory required for continuous row mounting, one FSWJ at each joint
• 7/8 in knock out provided at each end and on base of luminaire
• Enclosed lens minimizes penetration of dust, insects and other debris into the LED compartment

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/Philips_Luminaires_FSW230L835_UNV_DIM_Brochure.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/2/ITEM/DOC/Philips_Luminaires_FSWEZ440L840_UNV_Instruction_Sheet.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_2c15b0954c080b5a2dc8664d24d651ae91b9ab2d86a1e8e3b754b374d1ff7b2a.pdf
