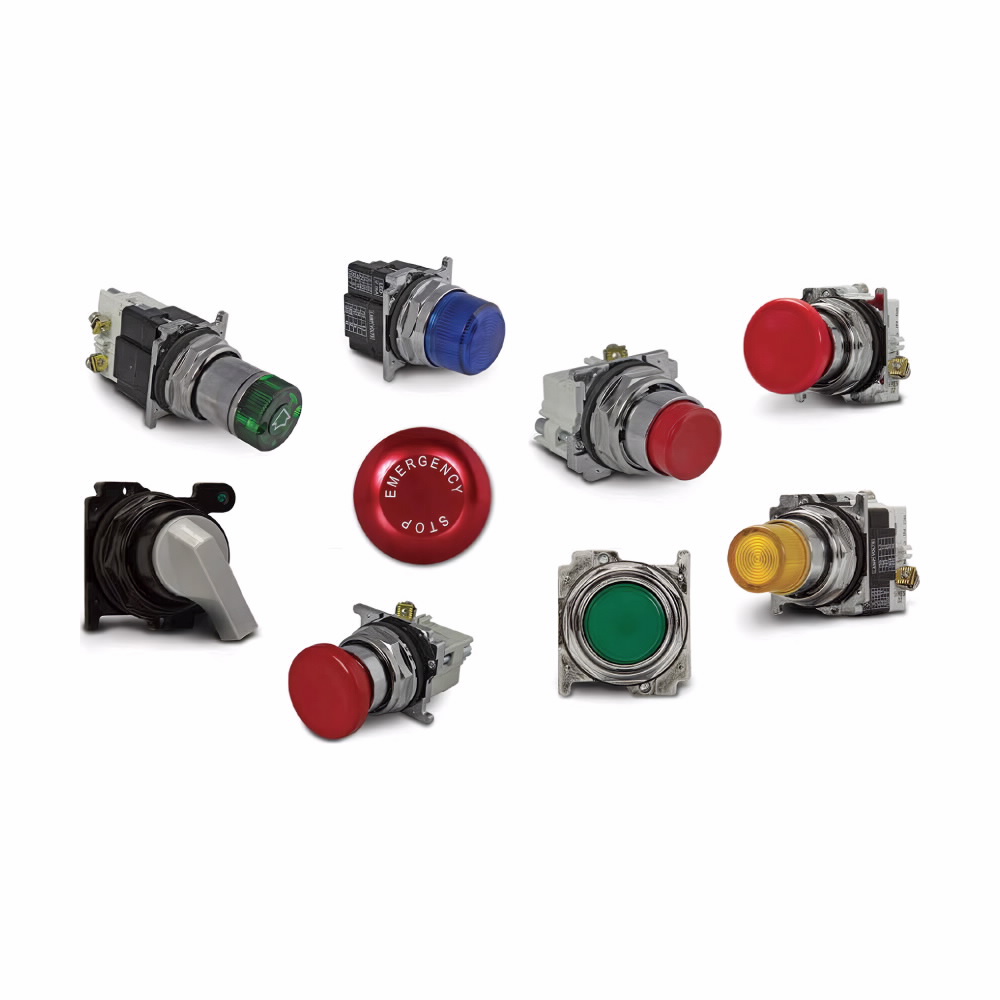

EATON 10250T line of 30.5 mm pushbuttons features a heavy duty die cast zinc construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the build-up of liquid inside the operator, which can prevent operation in freezing environments.

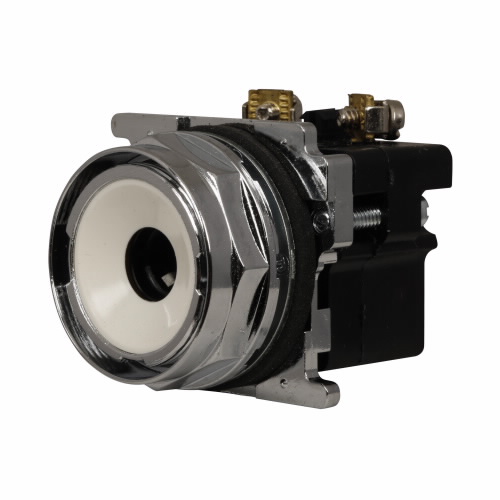

EATON Indicating Light, Standard Full Voltage Hazardous Location Oiltight Watertight, Series: 10250T, 24 VAC/VDC, LED Lamp, 30-1/2 mm, Bayonet Base, Saddle Clamp Terminal, NEMA 3/3R/3S/4/4X/12/13, Surface Mount, Environmental Conditions: 32 to 140 deg F Operating Temperature/-40 to 176 deg F Storage Temperature/95% Relative Humidity at 60 deg C

• EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
• To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
• Durable polished chrome finish
• Rugged 1-piece metal body
• Self-grounding operators
• Controlled compression sealing gasket
• Reliability nibs on contact blocks
• Largest breadth of offering
• Without lens

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_71a5ed3589c8d4f350f5b5a74a61ad6152c4c1ee87651e1f20808d80d0a19c03.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/2/ITEM/DOC/EATON_10250T800AD_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_c98d01d234f6269fb7afc223f5ad354d7f01b772e259c9c0595fb2366bd2b0d0.pdf
• Technical Bulletin https://assets.unilogcorp.com/2/ITEM/DOC/EATON_10250T800AD_Technical_Bulletin.pdf
