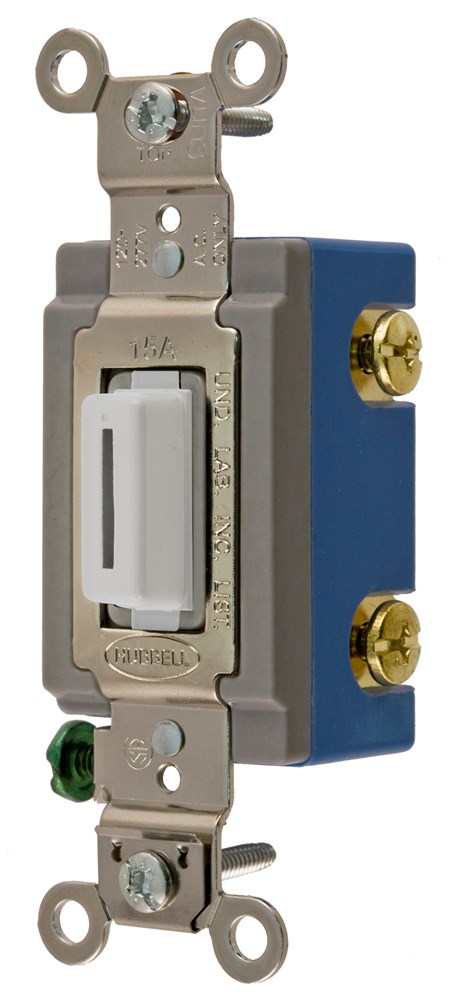

HBL1201LW 2-Position Extra Heavy Duty Industrial Grade Locking Switch, 120/277 VAC, 15 A
| Branch Name | Available |
|---|
Wiring Device-Kellems AC Keylock Switch, Extra Heavy Duty Industrial Grade Locking, Series: HBL, 120/277 VAC, 15 A, 2 hp, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Inductive/Resistive, Double Ended Key Lock, Key Operated Actuator, Threaded Connection, Composite/Thermoset, White, Environmental Conditions: -40 to 75 deg C Temperature, 4.06 in H x 1.31 in W x 1.12 in D Dimensions
| Actuator | : | Key Operated |
| Color | : | White |
| Connection | : | Threaded |
| Dimensions | : | 4.06 in H x 1.31 in W x 1.12 in D |
| Environmental Conditions | : | -40 to 75 deg C Temperature |
| Load | : | Inductive/Resistive |
| Lock Type | : | Double Ended Key |
| Material | : | Composite/Thermoset |
| Number of Poles | : | 1 |
| Series | : | HBL |
| Type | : | Extra Heavy Duty Industrial Grade Locking |
| Voltage Rating | : | 120/277 VAC |
| Amperage Rating | : | 15 A |
| Power Rating | : | 2 hp, 4155 W |
| Contact Configuration | : | 2-Position |
