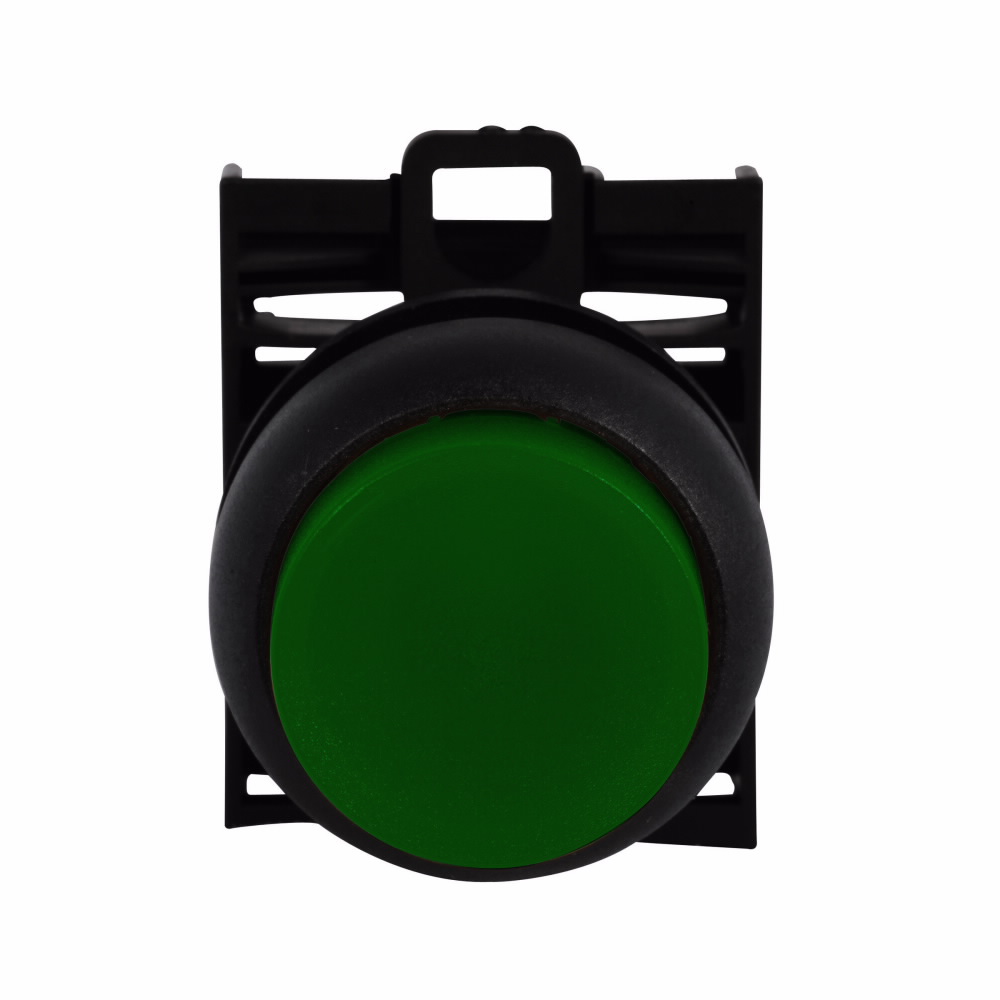

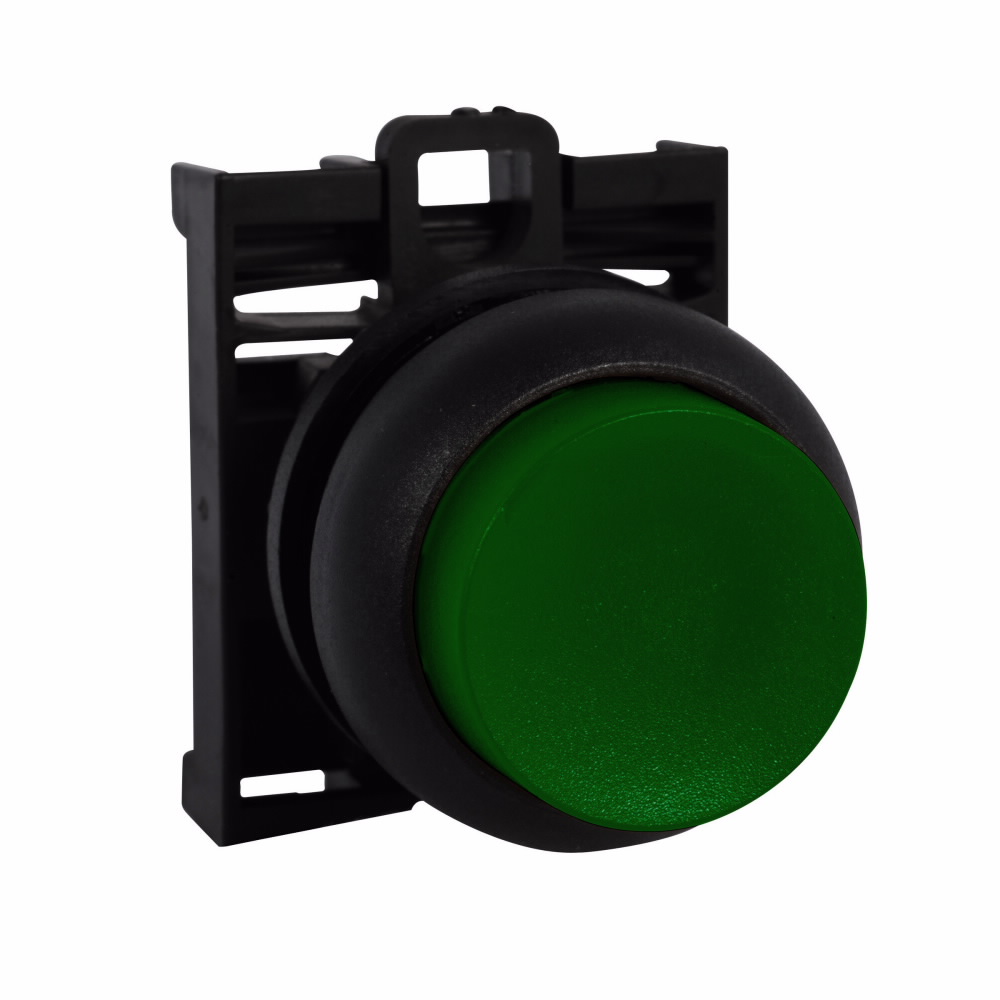

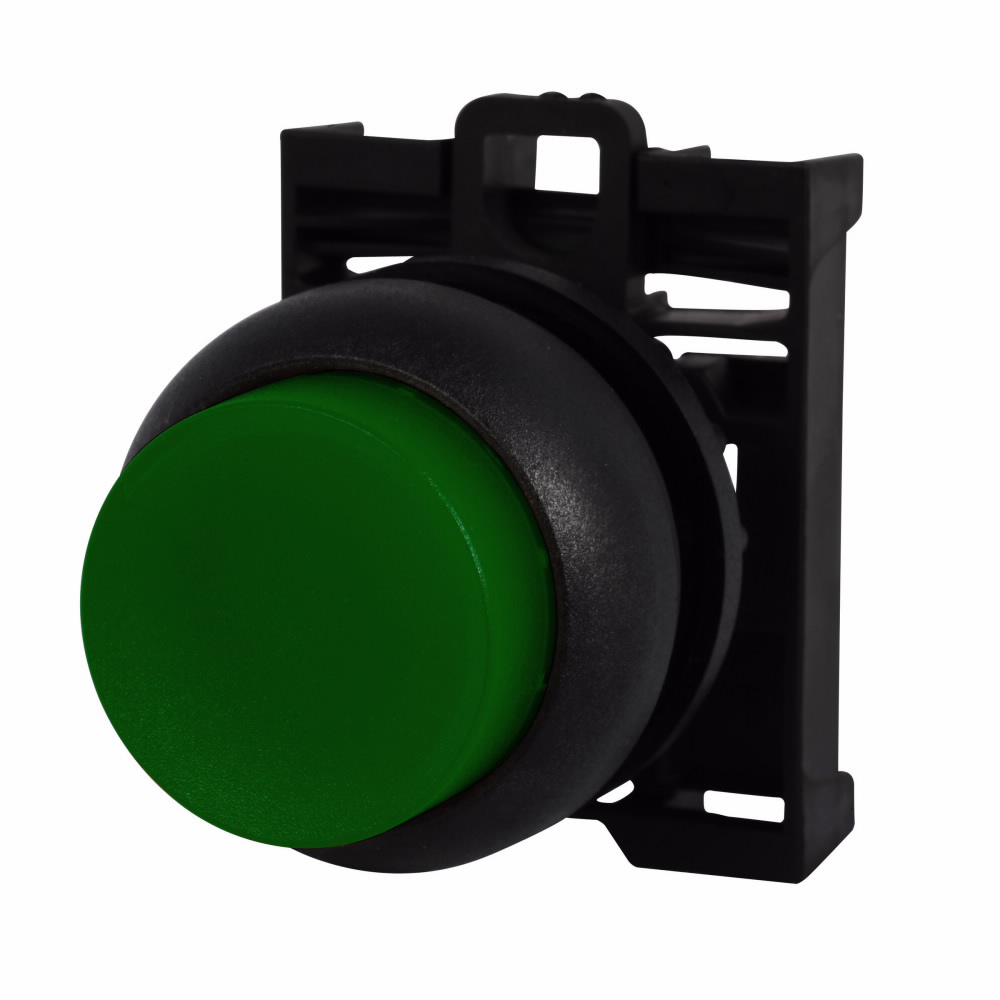

M22S-DLH-G Modular Illuminated Pushbutton Operator, 22.5 mm, Extended Button Operator, Momentary Contact, Green
| Branch Name | Available |
|---|
This attractive, functional line of pushbuttons features a space saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high quality brightness and up to 100000 hr of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed 5000000 mechanical operations.
EATON RMQ-Titan® Illuminated Pushbutton Operator, Modular, Series: M22, 22.5 mm, Momentary Contact Mode, Extended Button Operator, LED Lamp, Bezel/Housing: Black, NEMA 4X/13/IP67/IP69K Enclosure, -13 to 158 deg F, Green
| Bezel/Housing | : | Black |
| Enclosure Type | : | NEMA 4X/13/IP67/IP69K |
| Lamp Type | : | LED |
| Series | : | M22 |
| Temperature Rating | : | -13 to 158 deg F |
| Type | : | Modular |
| Size | : | 22.5 mm |
| Operator Type | : | Extended Button |
| Contact Mode | : | Momentary |
| Color | : | Green |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_71a5ed3589c8d4f350f5b5a74a61ad6152c4c1ee87651e1f20808d80d0a19c03.pdf
Instruction/Installation Manual
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_77a4b9989dd8a2babca7d8895452a9c197abd9a284a7a3a390642a6278e36b2c.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_1e1363ba232f1d2c785b45260870d474db6314376bde2dfb55cae666c63f934b.pdf
Technical Bulletin
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f19304a106ea9e79557e7ebbbe69fbc96d463662da77d7aeada57f107c1b464c.pdf
