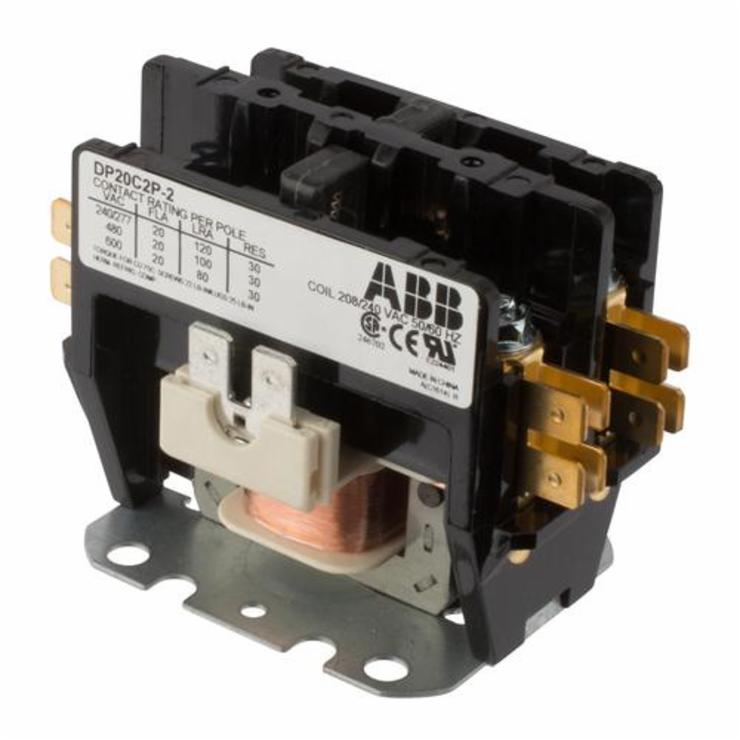

ABB DP20C2P-2 Definite Purpose Contactor, 208/240 VAC V Coil, 20 A, 2NO Contact, 2 Poles
| Branch Name | Available |
|---|
ABB Definite Purpose Contactor, 208/240 VAC Coil, 20 A Maximum Load Current, 6.5/8/30/33 VA Coil Power Rating, 2 Poles, 50/60 Hz, Non-Reversing Contact, 2NO, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 20, Screw Terminal, NEMA 5/Open, 130 deg C Operating, DIN Rail Mount, 3.3 in H x 2 in W x 2.44 in D
| Coil Power Rating | : | 6.5/8/30/33 VA |
| Contact Rating | : | 600 VAC |
| Contact Type | : | Non-Reversing |
| Dimensions | : | 3.3 in H x 2 in W x 2.44 in D |
| Enclosure Type | : | NEMA 5/Open |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Operating Temperature | : | 130 deg C |
| Size | : | SZ 20 |
| Terminal Type | : | Screw |
| Coil Voltage | : | 208/240 VAC |
| Maximum Load Current | : | 20 A |
| Contact Configuration | : | 2NO |
| Number of Poles | : | 2 |
