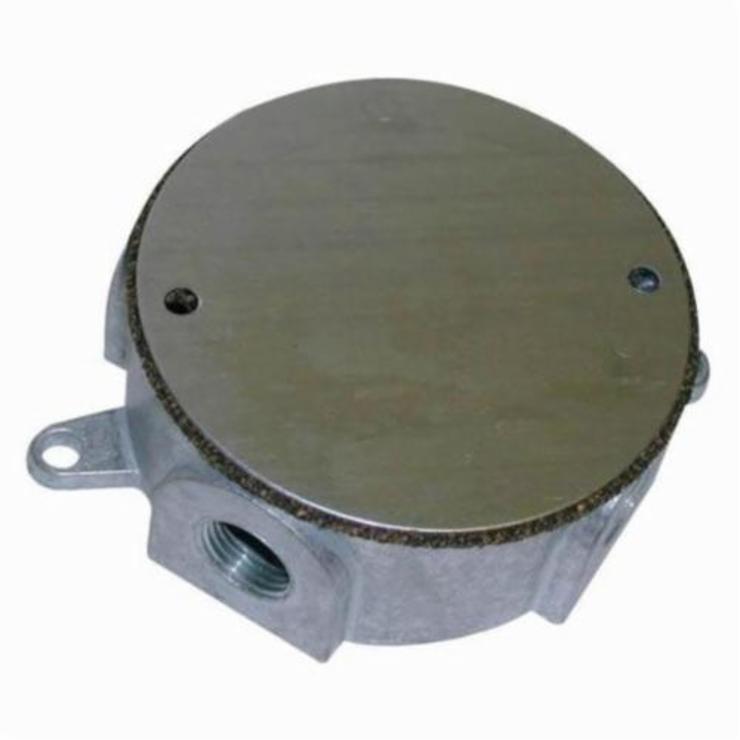

RAB Outlet Box, 3/4 in Knockout, 4 in Dia, Threaded Mount, Die Cast Zinc, 1-9/16 in D
| Diameter |
: |
4 in |
| Knockout Size |
: |
3/4 in |
| Mounting Type |
: |
Threaded |
| Material |
: |
Die Cast Zinc |
| Dimensions |
: |
1-9/16 in D |
- Precision die cast zinc, 4 in Dia box comes with two opposing mounting feet
- There are 4 internal posts for mounting covers 90 deg apart
- Two additional posts at 180 deg apart for universal cross bars
- One post for ground wire screw plus all posts are 10-24 tapped
- Five conduit entries, four on the side and one on the bottom
- Each unit comes complete with cork gasket, zinc plated screws, 3 threaded plugs to match side entries, stamped cover and one ground screw packaged inside the unit
