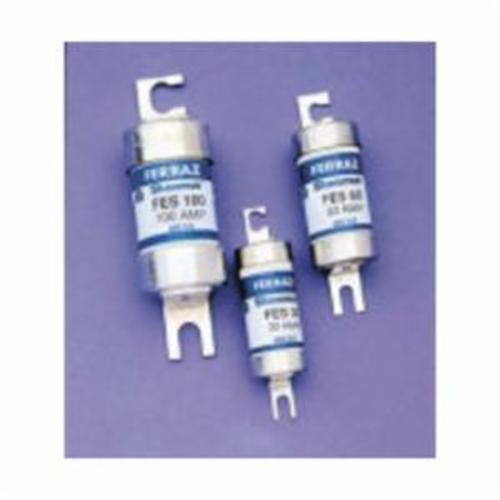

FES20 Fast Acting Low Voltage HRC Fuse, 20 A, 600 VAC, 200 kA Interrupt, Class C
| Branch Name | Available |
|---|
Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.
Ferraz Shawmut HRC Fuse, Fast Acting Low Voltage, Series: FES, 20 A, 600 VAC, 200 kA Interrupt, Class: C, Blade Terminal, Bolt-In Mounting, Ceramic, 0.81 in Dia x 3.31 in L Body
| Body Size | : | 0.81 in Dia x 3.31 in L |
| Material | : | Ceramic |
| Mounting Type | : | Bolt-In |
| Series | : | FES |
| Terminal Type | : | Blade |
| Type | : | Fast Acting Low Voltage |
| Amperage Rating | : | 20 A |
| Voltage Rating | : | 600 VAC |
| Interrupt Rating | : | 200 kA |
| Class | : | C |
