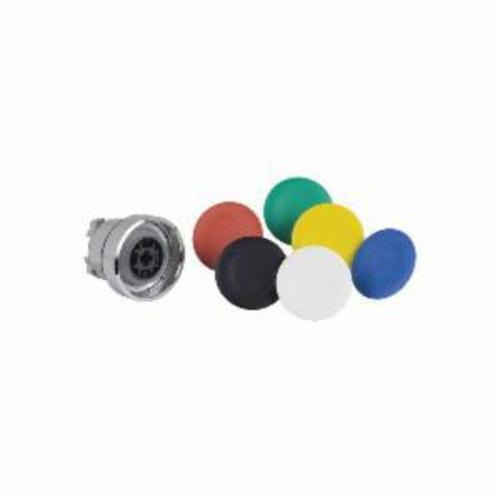

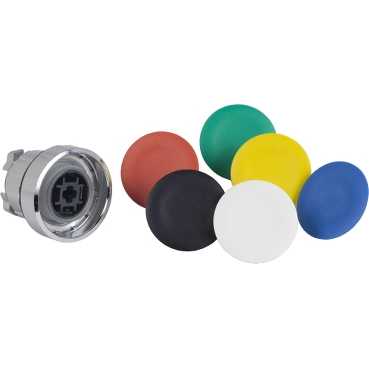

This button head with set of colored caps provides 6 different cap colors for multi-purposes use in operation along with an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Schneider Electric Non-Illuminated Flush Pushbutton Head, Universal, 22 mm, Round, Metal

• Spring return operator
• 10000000 cycles mechanical durability
• -40 to 70 deg C operating temperature
• Chromium plated metal bezel
• NEMA 13/4X/IP69/IP67IP69K/IP66 enclosure rating
• 5 gn (f =2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance and 30 gn (duration =18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration =11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance
• White, black, green, red, yellow, blue unmarked caps

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_65fe95c83387e8d9f1c878e9f76c3e99d9b4728a8b30da70b2afddf405a80b2e.pdf
• Line Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_bc6cd14e4a81aeb100b2095bbde342430bad558d0958e0d38bca9f8f95410003.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f3f7342d4686d16ed0373334ca42db90cd7c5a285b8e0fe1a255bf7d78a2b03b.pdf
• Video Link https://www.youtube.com/watch?v=fRFG1d6JH7Q&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
