20315 Adder Pole Open Style Fuse Block, 250 VAC/VDC, 30 A, Class H/K, 14 to 10 AWG Wire
| Branch Name | Available |
|---|

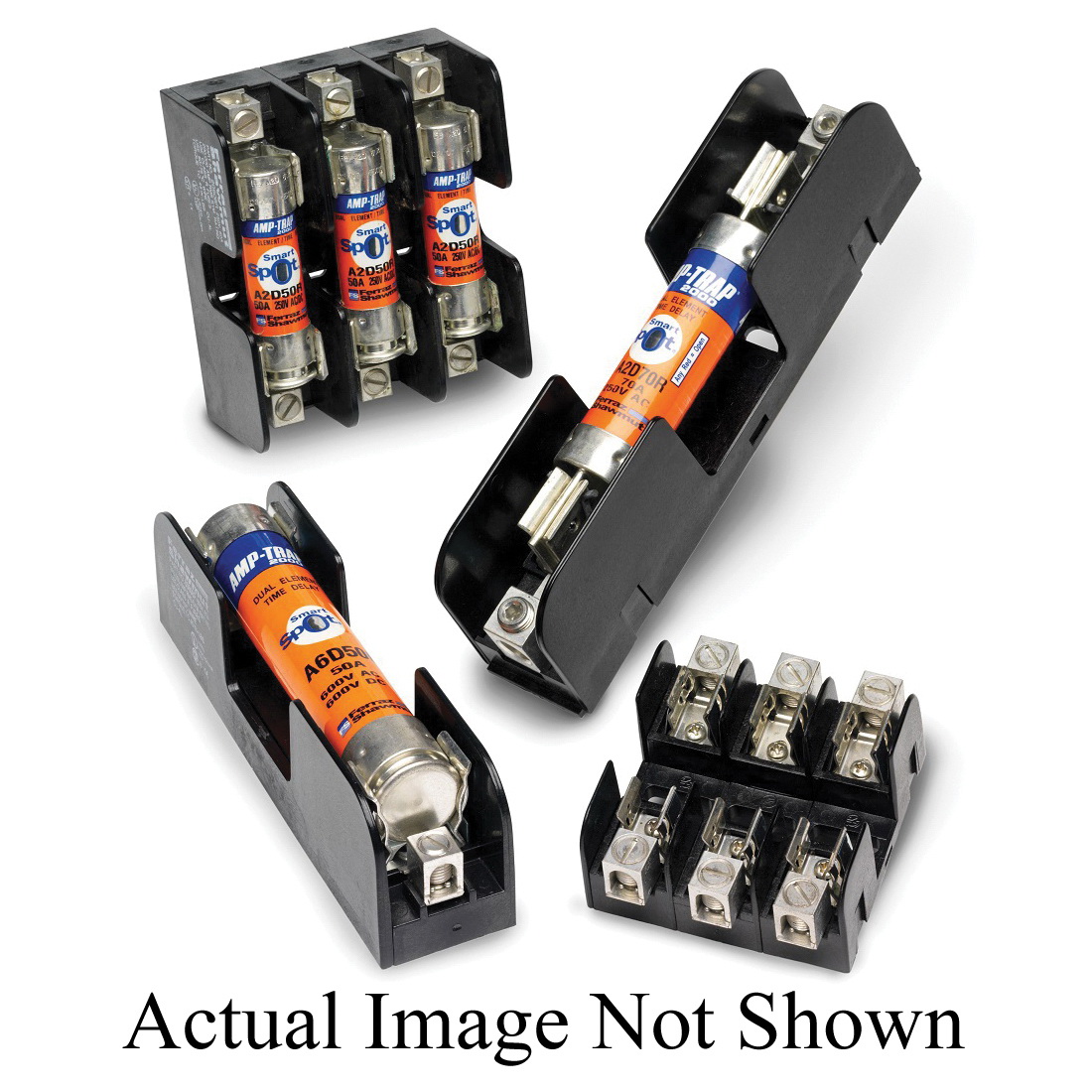

MERSEN class H, K fuse blocks accommodate 250 and 600 VAC power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 VAC. 30, 60 and 100 A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin plated copper, with a choice of spring reinforced or non-spring reinforced clips in 30 and 60 A. Clips 100 A and above are spring reinforced.
Ferraz Shawmut Fuse Block, Adder Pole Open Style, 250 VAC/VDC, 30 A, 1 Phase, Class: H/K, Screw, 14 to 10 AWG Wire, Threaded Mount, For Use With: OT, RF, A2Y Types 1,3 OTN, CRN, NRN Fuse, GFPC, 3 in H x 0.97 in W x 1.38 in D
| Connection Type | : | Screw |
| Dimensions | : | 3 in H x 0.97 in W x 1.38 in D |
| Material | : | GFPC |
| Mounting Type | : | Threaded |
| Number of Phases | : | 1 |
| Suitable For Use With | : | OT, RF, A2Y Types 1,3 OTN, CRN, NRN Fuse |
| Type | : | Adder Pole Open Style |
| Voltage Rating | : | 250 VAC/VDC |
| Amperage Rating | : | 30 A |
| Class | : | H/K |
| Wire Size | : | 14 to 10 AWG |
