Series g molded case circuit breakers are designed for circuit protection needs across the globe. A complete line of user-friendly accessories and high performance interruption ratings meet a host of different application, industry and regional requirements.

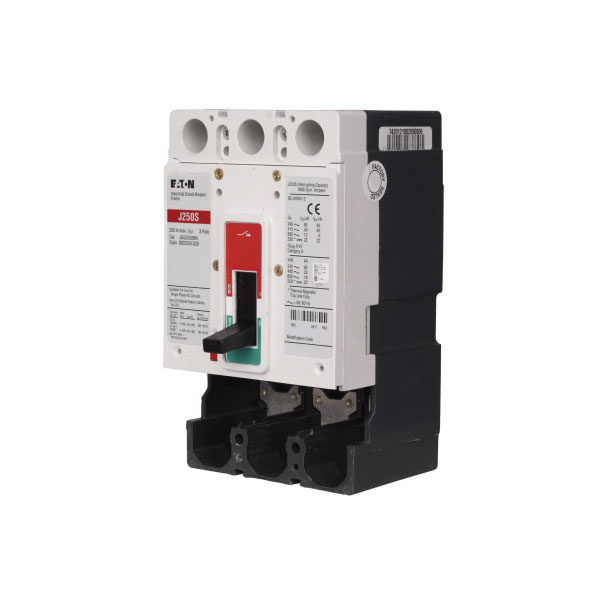

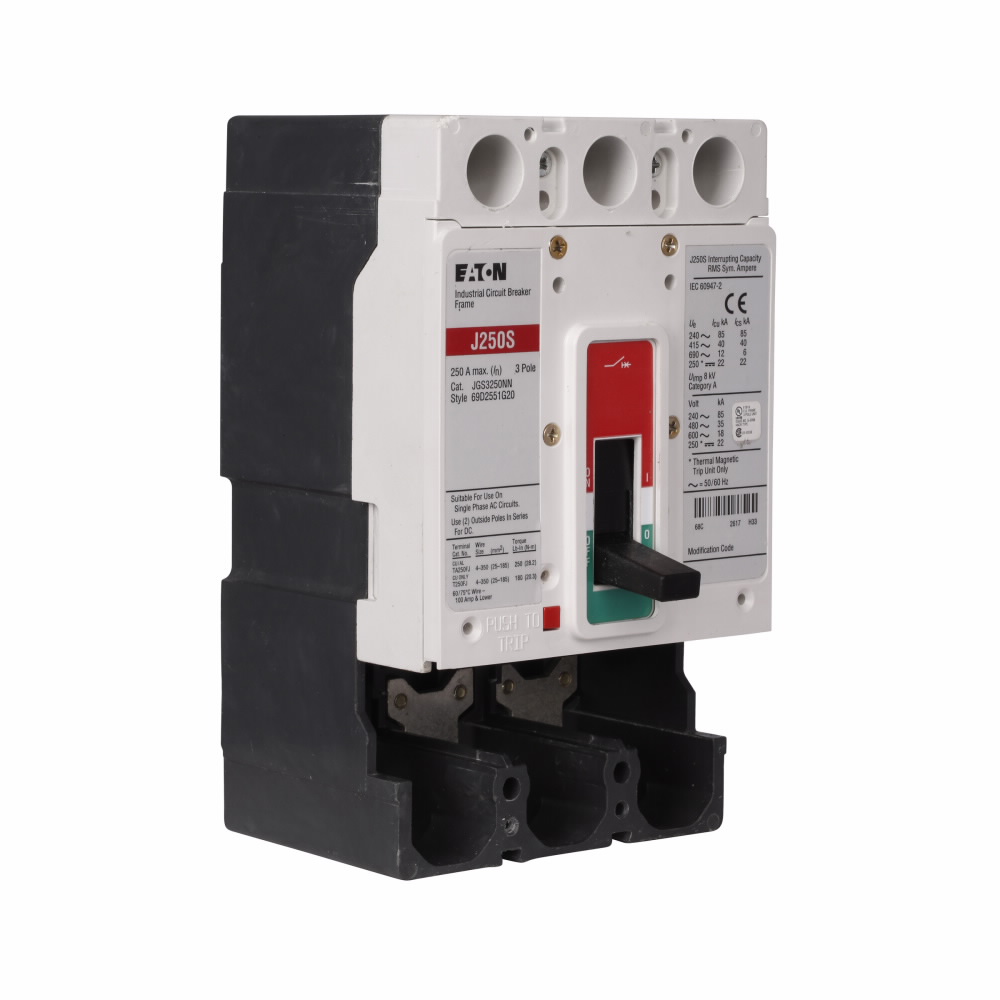

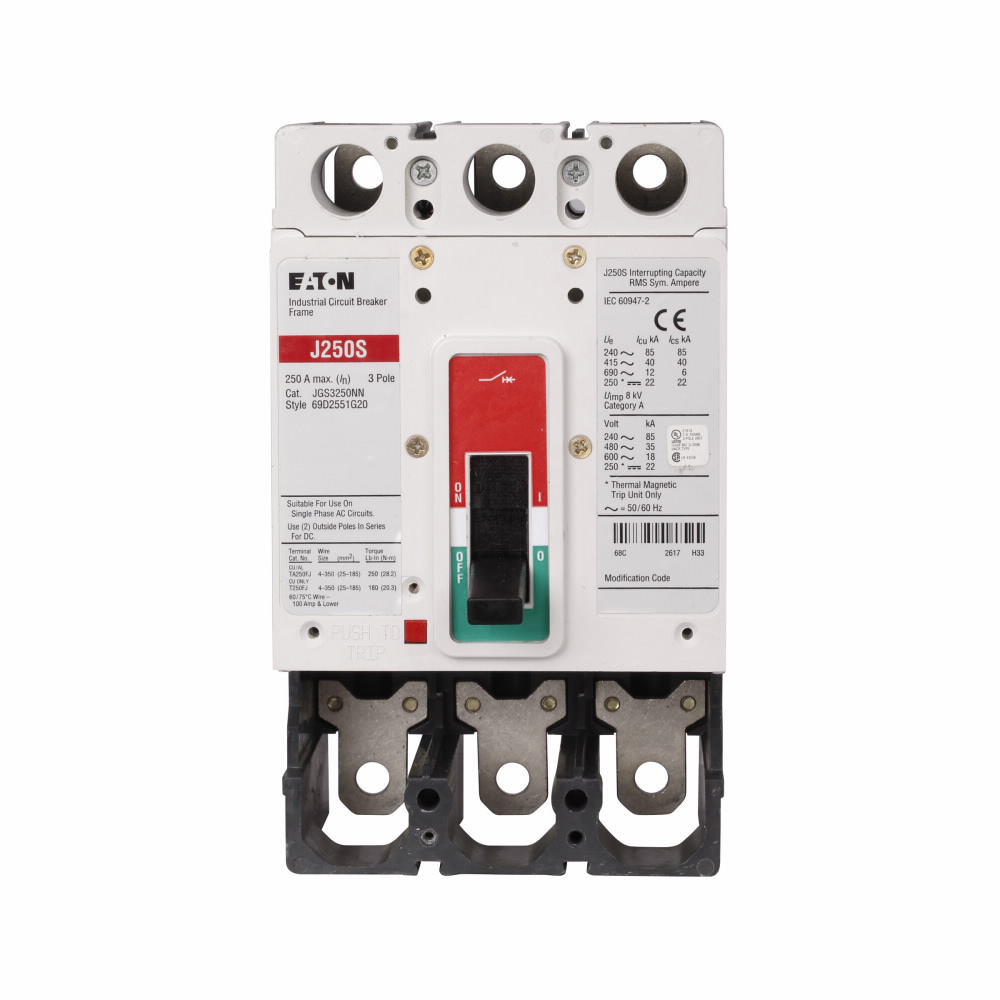

EATON Breaker Frame, 600 VAC, 250 A, 3 Poles, 18 kA IR, For Use With: G Series Type JGS JG-Frame Molded Case Circuit Breaker, Specifications: 85 kA at 240 VAC, 40 kA at 415 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt Rating, 50/60 Hz, 3.57 in L x 4.13 in W x 7 in H Dimensions

• Compact design frees up panel space
• Common field fit internal accessories make installation and custom configuration easy
• Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
• Patented contact design features high speed "blow open" action, resulting in superior performance
• 80% rated

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_a071634c279370bd5b0e2faab65634acc51e41965c64fd533c388625100b4f1b.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_27583bbf4566f3f755bd86571bd36359dc4ae91cb368b42e1a468cdea1ebd30e.pdf
• Line Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_9b73481536bc444ec7c7d62d090637dd779f23f7780122af89a7e16c7814a668.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_d679cd3252b234630cacf189eb97550d638a3801720d8b0c6afe86ee968949c0.pdf
• Technical Bulletin https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_f7b69d9e9fd2fca341ba994ddeca1b60ce84707cb057de67c3c07bead7e62cd2.pdf
