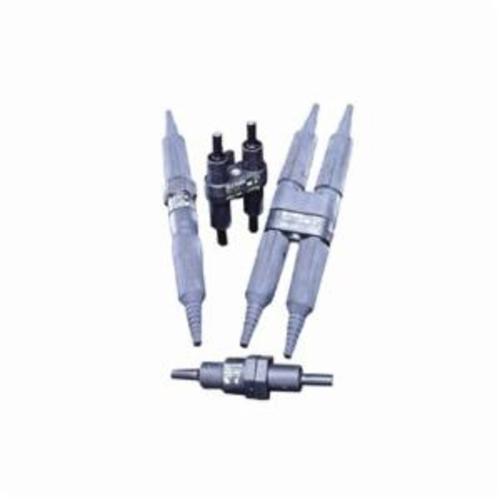

Mersen's complete line of single and dual pole in-line fuse holders accommodate class CC and midget fuses. The fuse holders are designed for quick installation. Securing nuts or screws are captive thus speeding installation by reducing the need to locate and assemble loose components in the field. Three internal O-rings per pole seal the fuse holder providing a water-resistant compartment for the fuse. The captive O-rings are colored (blue for single pole and red for dual pole) for quick detection. Optional cone shaped insulator boots can be slipped on to provide a watertight seal (breakaway versions come with boots standard). Both single and dual pole versions have an optional breakaway feature which safely disconnects the load in case of a pole knockdown. Fuses remain safely encapsulated within the watertight fuse holder on the load side. Once the pole has been reinstalled the fuse holder can be easily reconnected.

Ferraz Shawmut Fuse Holder, Series: 11-11, 600 VAC/VDC, 30 A, 2 Poles, 2 Phase, Class: CC, Crimped, 12 to 8 AWG Wire, In-Line Mount, 155 deg C, 4.3 in L

• Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards
• (3) O-rings per pole for watertight applications
• Colored O-rings for quick detection
• 1 and 2-poles
• Accepts midget or class CC fuses
• Wide assortment of terminal variations
• High heat impact-resistant insulator
• Captive nut or screw for quick installations
• Polarized dual pole provides simultaneous disconnection
• Permanently installed neutral versions quickly identified by white nuts
• Environmentally friendly no-lead solder used
• Highly visible catalog number even with insulation boots installed
• Wire gauge size identified on insulation boots for quick, accurate trimming

• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_cf256a10fe5f2976a043f38d365696e81a45a4220f30313d19334cc37d20e38e.pdf
