Non Stock

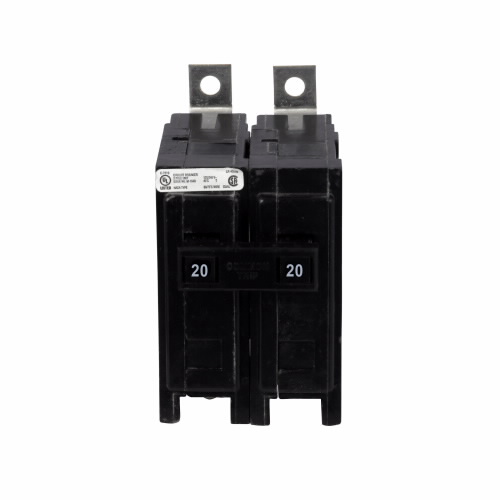

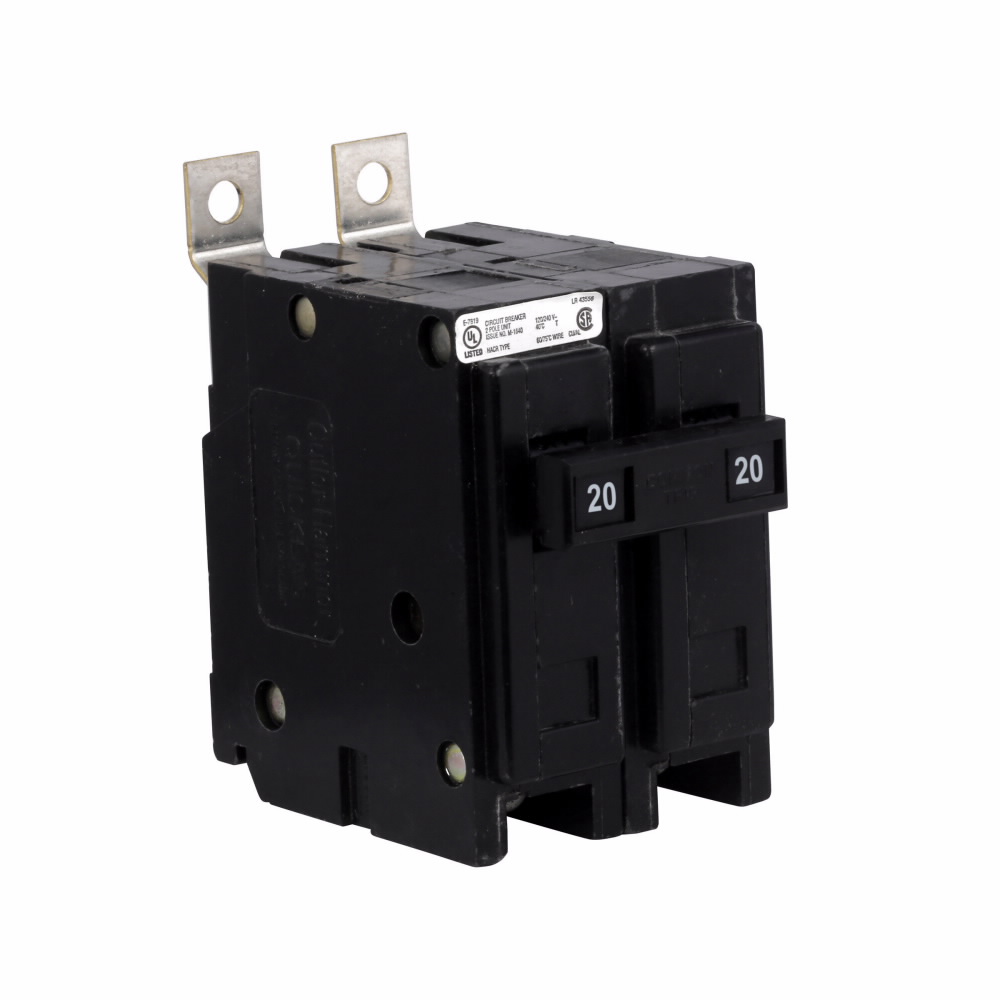

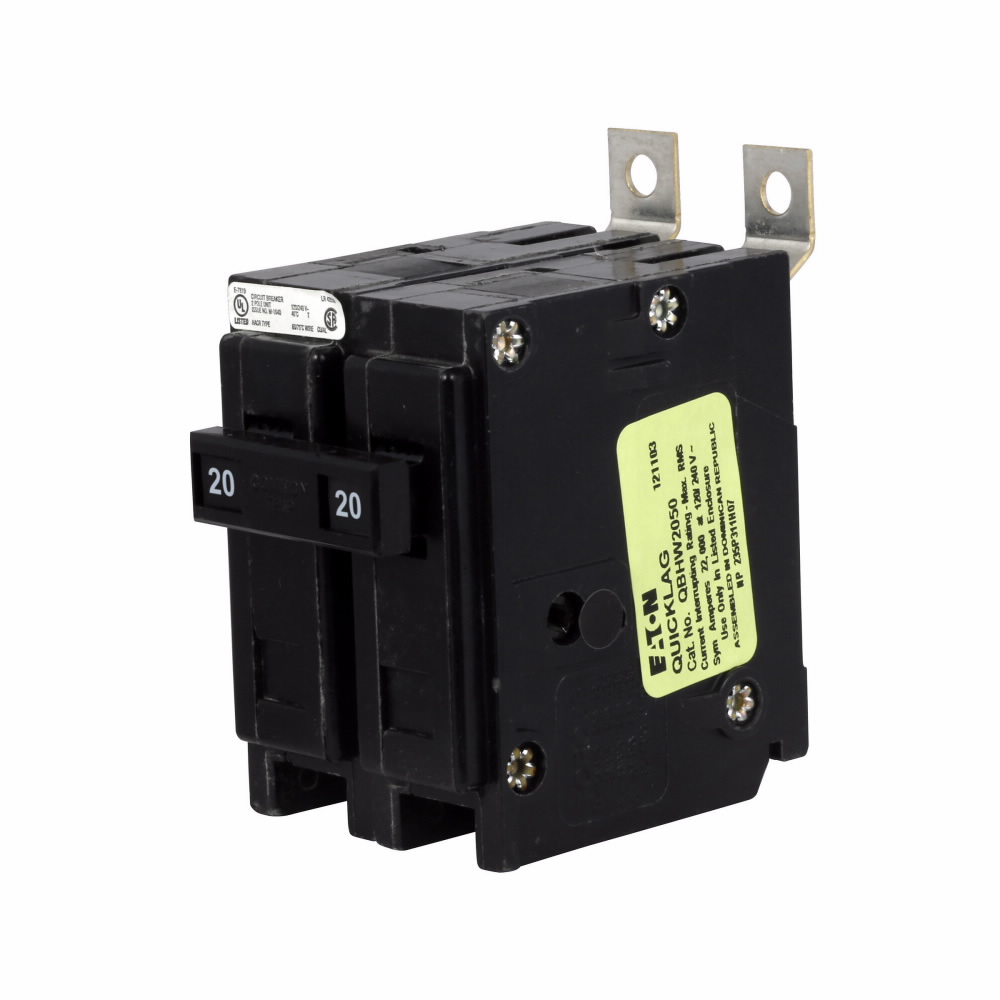

QBHW2020 Type QBHW Miniature Circuit Breaker, 120/240 VAC, 20 A, 22 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip
| Branch Name | Available |
|---|
Eaton bolt-on miniature circuit breakers offer superior protection for panelboards. they are also switching duty rated for 120 VAC fluorescent light applications. easy to securely install. choose from 1, 2 or 3-pole designs. built and listed to UL 489. all products 15 to 100 A are HACR rated. choose from bolt-on types BAB, QBHW, HBAX and HBAW.
EATON QuickLag® Miniature Circuit Breaker, Type QBHW, 120/240 VAC, 20 A, 22 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 2 Pole, 1 Phase, 14 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 3.7 in L x 2.2 in W x 4.8 in H
| Dimensions | : | 3.7 in L x 2.2 in W x 4.8 in H |
| Mounting Type | : | Bolt-On |
| Phase | : | 1 |
| Temperature Rating | : | 40 deg C |
| Type | : | Type QBHW |
| Wire Size | : | 14 to 4 AWG |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 20 A |
| Interrupt Rating | : | 22 kA |
| Number of Poles | : | 2 |
| Trip Type | : | Non-Interchangeable Thermal Magnetic |
