DXN series plugs and receptacles are convenient, lightweight devices that are safe for use in hazardous environments such as refineries or silos where exposure to flammable gas or dust is a concern. The DXN's compact size and durable construction makes them easy to handle and well suited for in-line connections of electrical equipment. The DXN's dead front construction assures electrical safety by preventing user access to live parts. IP66+IP67 ratings are achieved as soon as the plug and receptacle are mated, making them the perfect choice for wet or dusty environments.

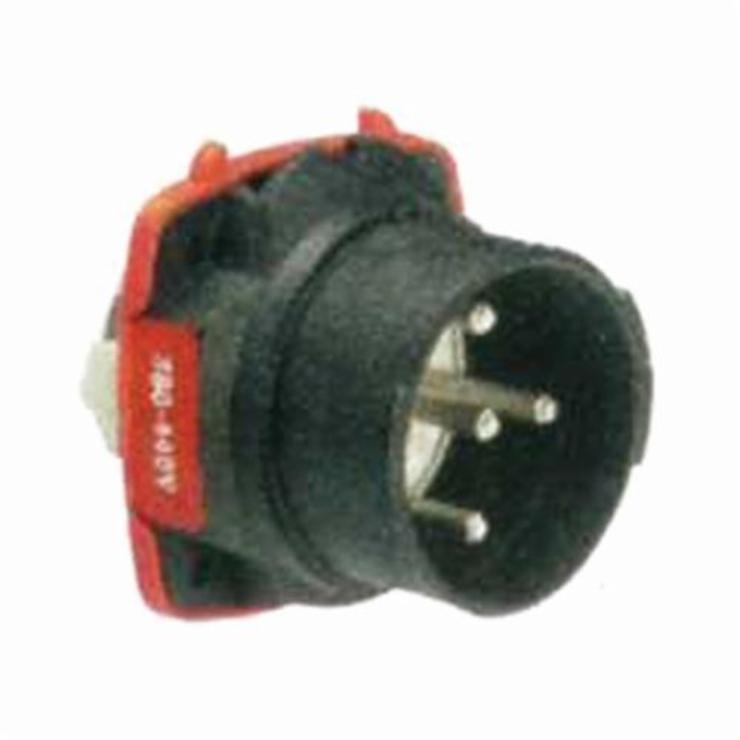

MELTRIC DECONTACTOR™ Male Inlet, Series: DXN30, 255/277/440/480 VAC, 30 A, 5 hp, 60 Hz Frequency, 4 Pole, 5 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Black, 2.64 in Dia x 1.97 in L Dimensions

• Easy to handle due to compact, lightweight design
• CSA, ATEX and IECEx rated for use in Zone 1 and 2 (gas) and Zone 21 and 22 (dust)
• Pushbutton pawl/OFF button provides quick, safe and easy current interruption
• Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
• Explosion proof arc chamber withstands internal pressure due to gas/dust ignited by arcing and isolates it from the outside environment
• Explosion proof flame path dissipates internal pressure created during arcing while also preventing any associated ignition sources from reaching the surrounding atmosphere
• 14 to 6 AWG wiring capacity
• 1/2 hp at 120 VAC 1-phase, 3 hp at 240 VAC, 5 hp at 480 VAC, 7-1/2 hp at 600 VAC 3-phase horsepower rating
