Non Stock

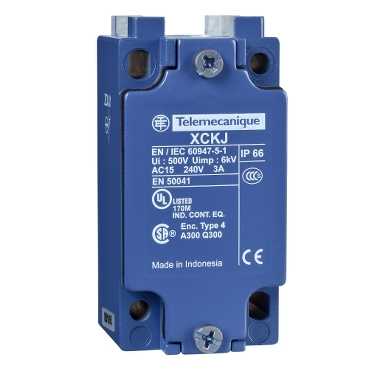

ZCKJ1H7 Standard Limit Switch Body, 1NO-1NC Contact, For Use With XCKJ and ZCKJ Series Non-Plug-In Limit Switch, 10 A, 500 VAC Contact, NEMA 1/2/3/4/12/IP66 Enclosure
| Branch Name | Available |
|---|
limit switch body ZCKJ - fixed - w/o display - 1NC+1NO - snap action - 1/2"NPT
Schneider Electric OsiSense® XC Switch Body, Series: ZCKJ, 1NO-1NC, 10 A at 500 VAC Contact, NEMA 1/2/3/4/12/IP66, 10 to 120 deg C, Screw Clamp, For Use With: XCKJ and ZCKJ Series Non-Plug-In Limit Switch, Metal, 1.69 in W x 1.42 in D x 3.31 in H
| Connection Type | : | Screw Clamp |
| Dimensions | : | 3.31 in H x 1.69 in W x 1.42 in D |
| Material | : | Metal |
| Series | : | ZCKJ |
| Temperature Rating | : | 10 to 120 deg C |
| Type | : | Standard |
| Contact Configuration | : | 1NO-1NC |
| Suitable For Use With | : | XCKJ and ZCKJ Series Non-Plug-In Limit Switch |
| Contact Rating | : | 10 A, 500 VAC |
| Enclosure Type | : | NEMA 1/2/3/4/12/IP66 |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/Telemecanique_ZCKJ1H7_Catalog.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_91850f303b73204f3a69a796fa2cb544ae75968656b9ef910f58235a31f4130a.pdf
