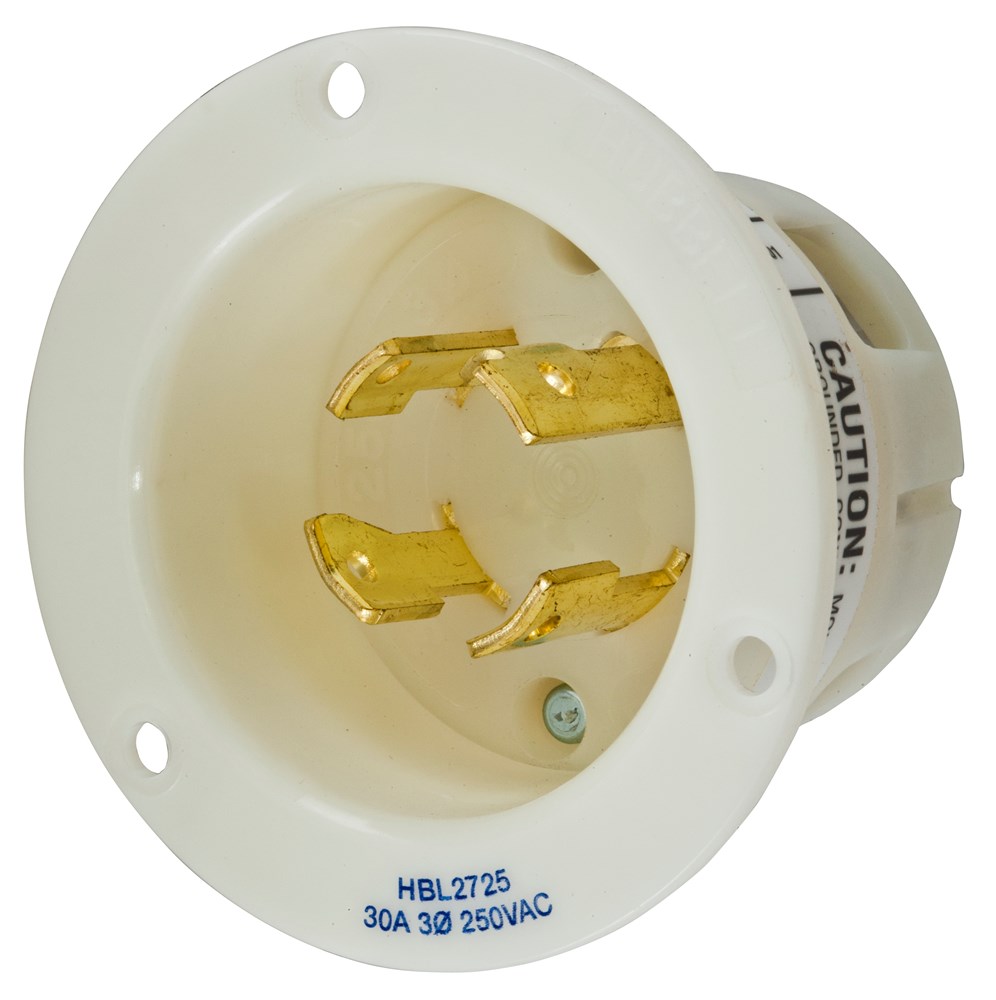

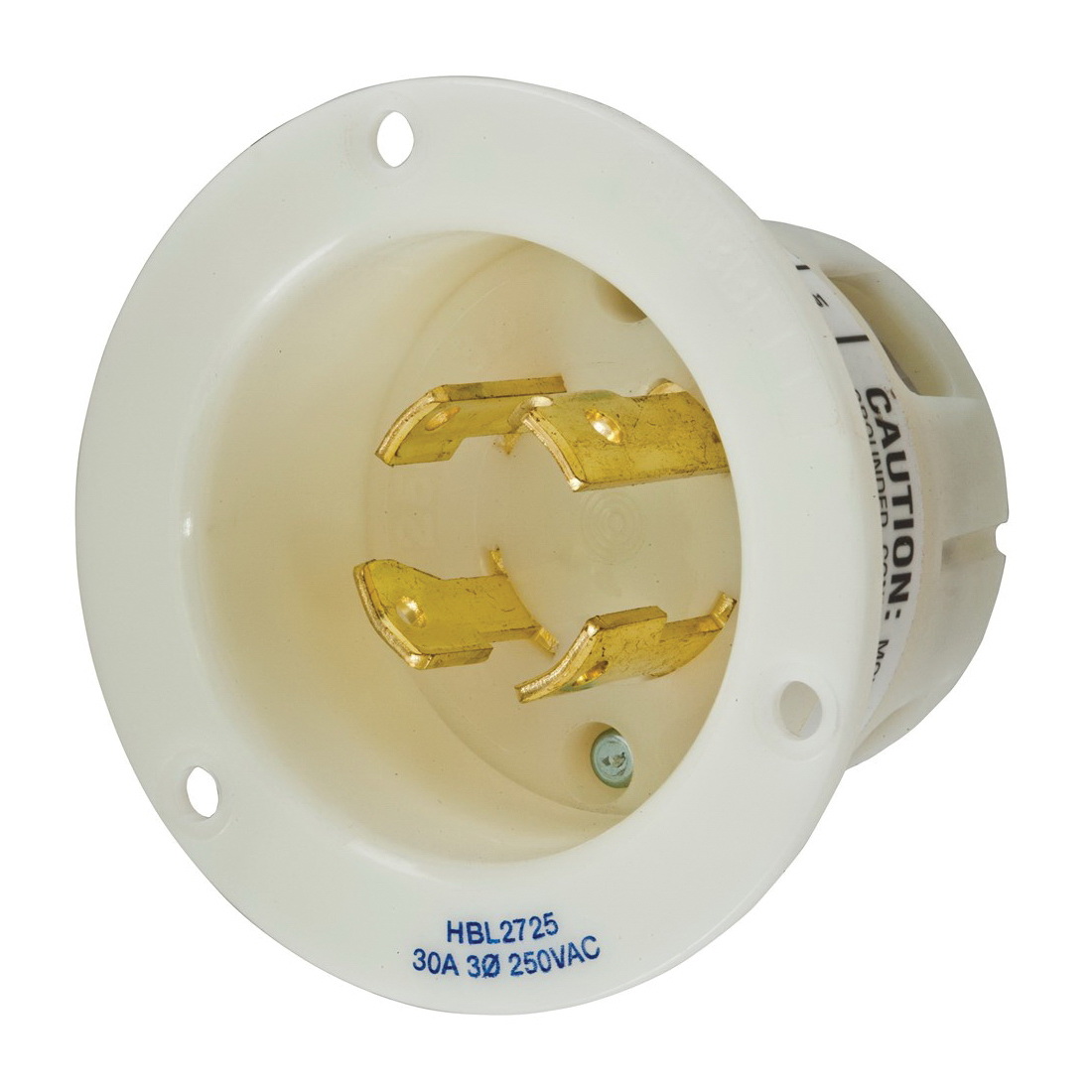

Wiring Device-Kellems Insulgrip® Twist-Lock® Flanged Inlet, Standard, 250 VAC, 30 A, 3 Pole, 4 Wires, NEMA L15-30P, -40 to 75 deg C, Screw Terminal, Nylon, White, 2.23 in Dia x 2.27 in L Dimensions

• Withstands 2000 VAC minimum dielectric voltage
• Certified for current interrupting at full rated current
• 30 A 10 AWG terminal accommodation
• HB or better per UL 94 or CSA 22.2 NO 0.6 flammability
• Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
• Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
• NO 10 to 32 brass terminal screw material
• Brass blade
• Clear polycarbonate terminal retainer material
• 0.08 in steel-nickel plated terminal clamp
• Steel, zinc plated multi drive body holding screw material
• Natural white nylon body contact carrier material
• Natural white nylon flanged casing material
• Nickel-plated brass round head mounting screw material
• 3-phase
• Back wired terminations for ease of installation
• Mounting screws included

• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_07a5cd3222074db8f6770aeb1ef0722438e8be740217452212e17d1b4fb6c087.pdf
