Non Stock

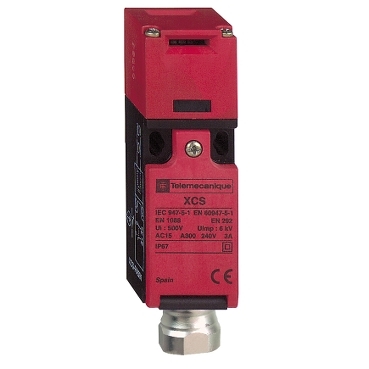

XCSPA793 Safety Interlock Switch, 300 VAC, 10 A, 2 Poles
| Branch Name | Available |
|---|
This Key Operated Safety Switch for guard doors, with adjustable turret head switch, has a robust red coated thermoplastic body. It's IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies with EN/ISO 13849-1, EN/IEC 61508.
Schneider Electric Preventa™ Safety Interlock Switch, 300 VAC, 10 A, 2 Pole, 1/2 in NPT Hub, Threaded Mount, NEMA 4/4X/12/IP67, Plastic, 1.18 in W x 1.18 in D x 4.21 in H
| Dimensions | : | 4.21 in H x 1.18 in W x 1.18 in D |
| Enclosure Type | : | NEMA 4/4X/12/IP67 |
| Hub Size | : | 1/2 in NPT |
| Material | : | Plastic |
| Mounting Type | : | Threaded |
| Voltage Rating | : | 300 VAC |
| Amperage Rating | : | 10 A |
| Number of Poles | : | 2 |
Instruction/Installation Manual
https://assets.unilogcorp.com/2/ITEM/DOC/Schneider_Electric_XCSPA591_Installation_Instructions.pdf
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_22982035600c572f2440b4b52d4262120b54c47ec1482194c86850b3a43235d0.pdf
