Non Stock

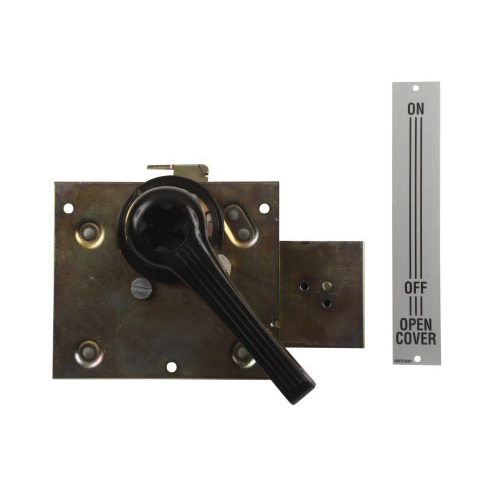

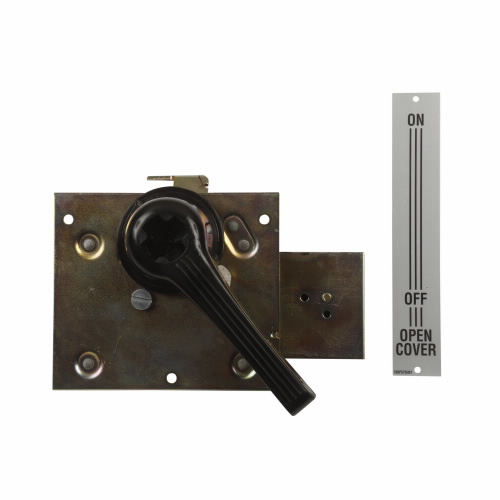

314C386G08 Standard Slide Plate Mechanism, Rotary Lever/Padlock Handle/Operation, Left/Vertical Handle Mounting, For Use With KL, HKL, MA, HMA, MC, HMC, LA, HLA, LC, HLC, JA, KA, HKA, DA, LB, LBB, HLB, NB, HNB Frame Molded Case Circuit Breaker
| Branch Name | Available |
|---|
These compact slide plate handle mechanisms are especially designed for use with AB DE-ION circuit breakers and disconnect switches when they are mounted in a shallow enclosure. They are suitable for use on Type 1 applications. Because of the mechanisms simplified installation three mounting holes and preassembled construction, these units are commonly used where high volume, standardized enclosures are being fabricated.
EATON Slide Plate Mechanism, Standard, Rotary Lever/Padlock Handle/Operation, Left/Vertical Handle Mounting Position, For Use With: KL, HKL, MA, HMA, MC, HMC, LA, HLA, LC, HLC, JA, KA, HKA, DA, LB, LBB, HLB, NB, HNB Frame Molded Case Circuit Breaker
| Type | : | Standard |
| Handle/Operation | : | Rotary Lever/Padlock |
| Handle Mounting Position | : | Left/Vertical |
| Suitable For Use With | : | KL, HKL, MA, HMA, MC, HMC, LA, HLA, LC, HLC, JA, KA, HKA, DA, LB, LBB, HLB, NB, HNB Frame Molded Case Circuit Breaker |
