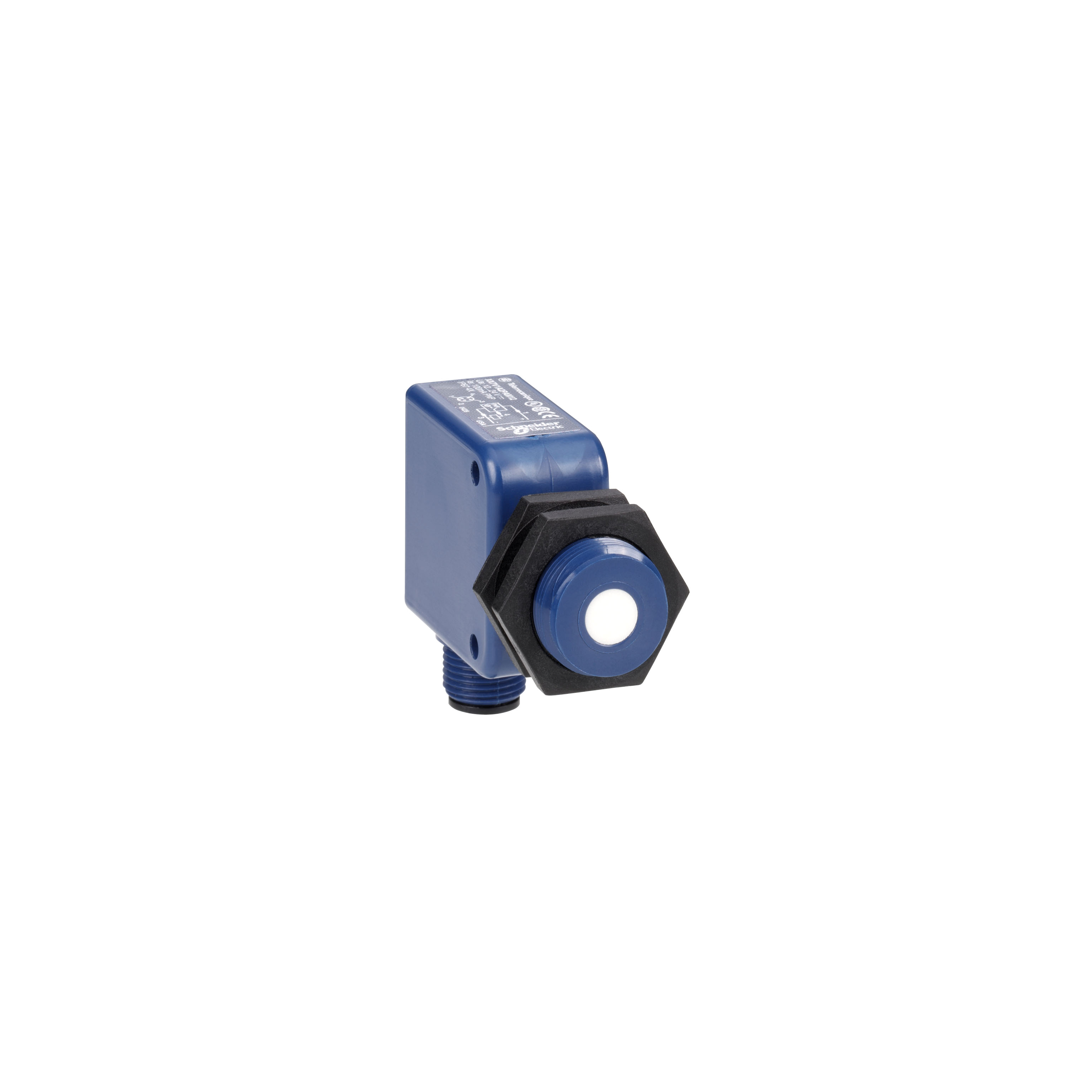

XX7V1A1PAM12 Cylindrical Flat Form Ultrasonic Proximity Sensor With Reverse Polarity Protection, Diffuse/Ultrasonic, PNP Output, 1NO Contact, 10 to 28/12 to 24 VDC
| Branch Name | Available |
|---|
This general purpose parallelepipedic ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts and is IEC 60947-5-2 compliant.
Schneider Electric Square D™ Ultrasonic Proximity Sensor, Cylindrical Flat Form, Series: XX7, Diffuse/Ultrasonic Sensing Method, 1.64 ft Sensing Distance, 0.17 to 1.67 ft Measuring, 1.27 % Accuracy, PNP Output, 1NO Contact Configuration, 10 to 28/12 to 24 VDC, 40 mA, 300 kHz Frequency Response, 4-Pin M12 Male Connection, 44 mm H x 18 mm W x 60 mm D Size, IP67 Enclosure, -20 to 65 deg C, Valox®, Environmental Conditions: -40 to 176 deg F Storage Temperature, 30 gn Shock Resistance
| Accuracy | : | 1.27% |
| Amperage Rating | : | 40 mA |
| Connection Type | : | 4-Pin M12 Male |
| Enclosure Type | : | IP67 |
| Environmental Conditions | : | -40 to 176 deg F Storage Temperature, 30 gn Shock Resistance |
| Frequency Response | : | 300 kHz |
| Material | : | Valox® |
| Measuring Range | : | 0.17 to 1.67 ft |
| Sensing Distance | : | 1.64 ft |
| Series | : | XX7 |
| Size | : | 44 mm H x 18 mm W x 60 mm D |
| Temperature Rating | : | -20 to 65 deg C |
| Type | : | Cylindrical Flat Form |
| Sensing Method | : | Diffuse/Ultrasonic |
| Output Type | : | PNP |
| Contact Configuration | : | 1NO |
| Voltage Rating | : | 10 to 28/12 to 24 VDC |
