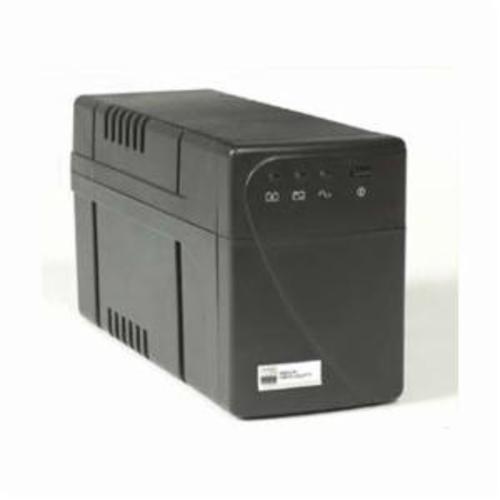

SolaHD S1K520

S1K520 Mini Tower Off-Line Uninterruptible Power Supply, 115 VAC Input, 115 VAC Output, 520 VA, 15 min Backup, 4 Outlets

  • MPN: S1K520
  • UPC: 783472530021
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
SolaHD S1K520

The S1K series provides economical protection from damaging impulses and power interruptions. These units include two types of outlets, three for critical devices needing battery back up and surge protection such as the CPU and one surge protected only outlet for non-critical devices like printers and fax machines. The S1K is ideal for point of sale and office applications.

SolaHD Uninterruptible Power Supply, Mini Tower Off-Line, Series: S1K, 115 VAC Input, 115 VAC Output, 520 VA Power, 50/60 Hz Frequency, 15 min Backup, 4 Outlets, Battery/Surge Outlet, NEMA 5-15P Plug Configuration, NEMA 5-15R Receptacle Configuration, 6 ft Cord Length, DB9 Interface, Lead Acid Battery, Environmental Conditions: 0 to 40 deg C Operating Temperature, 0 to 90% Non-Condensing Relative Humidity, <40 dBA Audible Noise, 5.3 in H x 3.8 in W x 12.6 in D Dimensions

Battery      :      Lead Acid
Cord Length      :      6 ft
Dimensions      :      5.3 in H x 3.8 in W x 12.6 in D
Environmental Conditions      :      0 to 40 deg C Operating Temperature, 0 to 90% Non-Condensing Relative Humidity, <40 dBA Audible Noise
Frequency Rating      :      50/60 Hz
Interface      :      DB9
NEMA Plug Configuration      :      NEMA 5-15P
NEMA Receptacle Configuration      :      NEMA 5-15R
Outlet Type      :      Battery/Surge
Series      :      S1K
Type      :      Mini Tower Off-Line
Input Voltage      :      115 VAC
Output Voltage      :      115 VAC
Power Rating      :      520 VA
Backup Time      :      15 min
Number of Outlets      :      4
  • Lightweight, compact design
  • Data-line surge protection for phone or network included on every unit
  • Step sinewave output
  • 4 m sec, typical transfer time
  • Sealed, maintenance free batteries
