Designated as Eaton types GMCP and HMCP, the instantaneous only motor circuit protector (MCP). An innovative design of internal components allows higher MCP starter combination interrupting ratings. The MCP is marked to permit proper electrical application within the assigned equipment ratings.

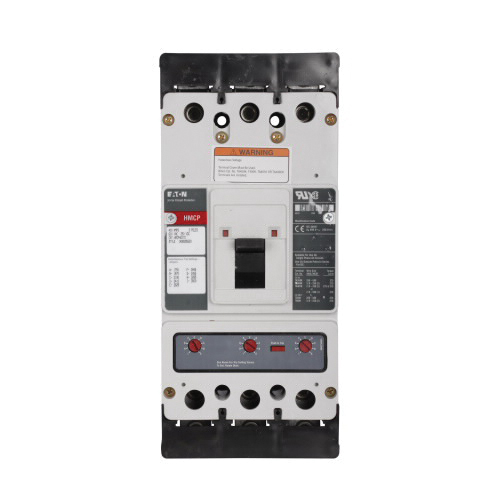

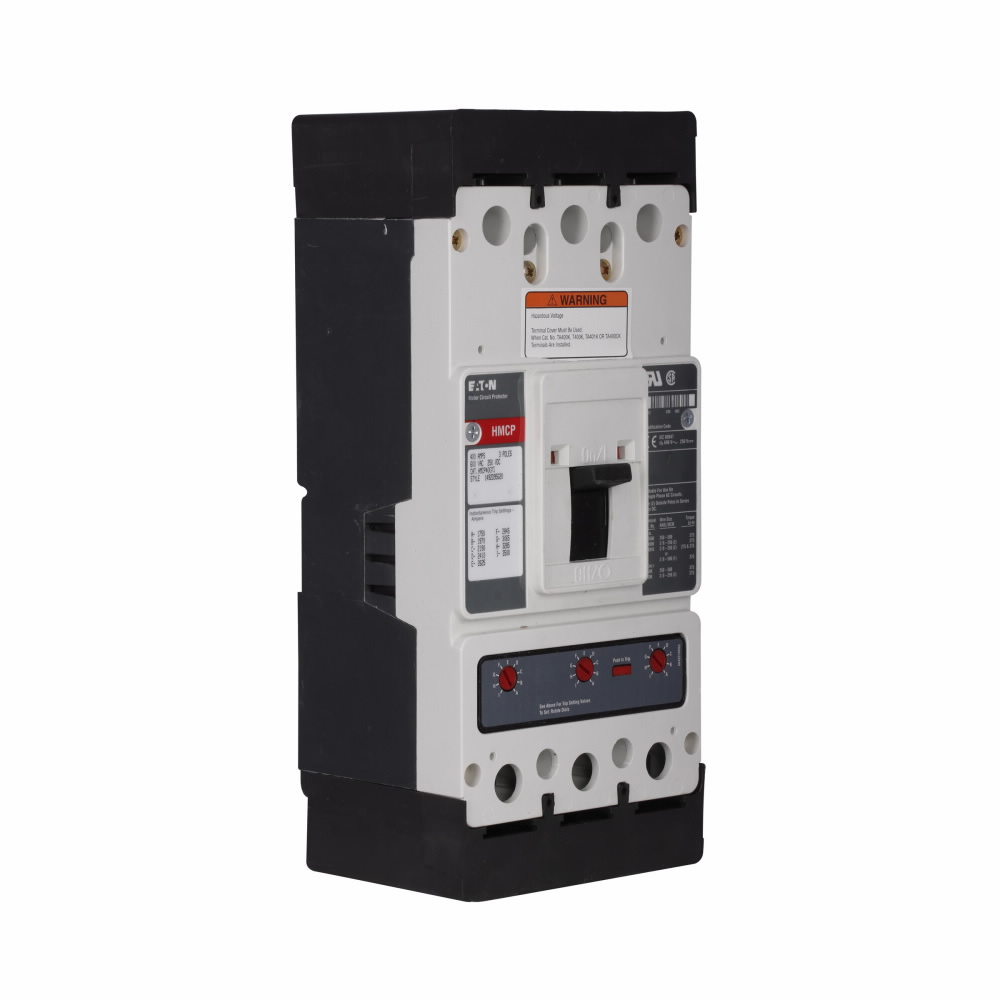

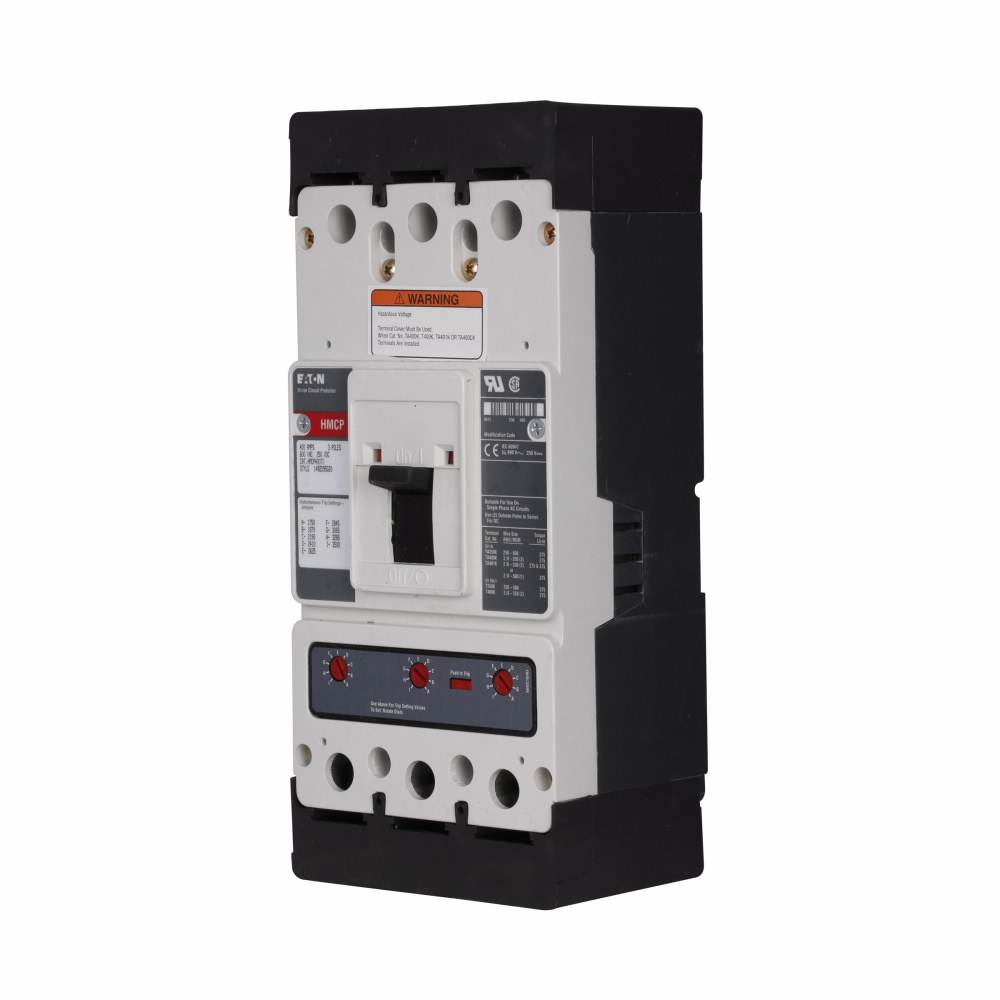

EATON Motor Circuit Protector, Type HMCP, Series: C Series, 600 VAC, 250 VDC, 400 A, K Frame, Magnetic Trip, 2000 to 4000 A Trip, 3 Pole, Line/Load Lug, NEMA 5, 4.1 in L x 5.5 in W x 10.13 in H

• Provides phase loss and phase unbalance protection to prevent severe equipment damage that can occur with a single phasing condition
• Thermal memory prevents immediate restart after trip to allow the motor to cool down
• High load alarm LED status indicator provides early warning of potential trip condition

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_a071634c279370bd5b0e2faab65634acc51e41965c64fd533c388625100b4f1b.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_002ec8032b482915d764e884a625e17d55d3c350278ded2b3413118024b7160d.pdf
• Line Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_93285fddc891ec5ad7c2ebeb47455da699d2c2fab91ff2f5166407c6bbc11639.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_d69dddaa9d3c99d5fdcd30ac74042ddbfa8db14e0384978a9ce6f39461fad31e.pdf
