Electrozad

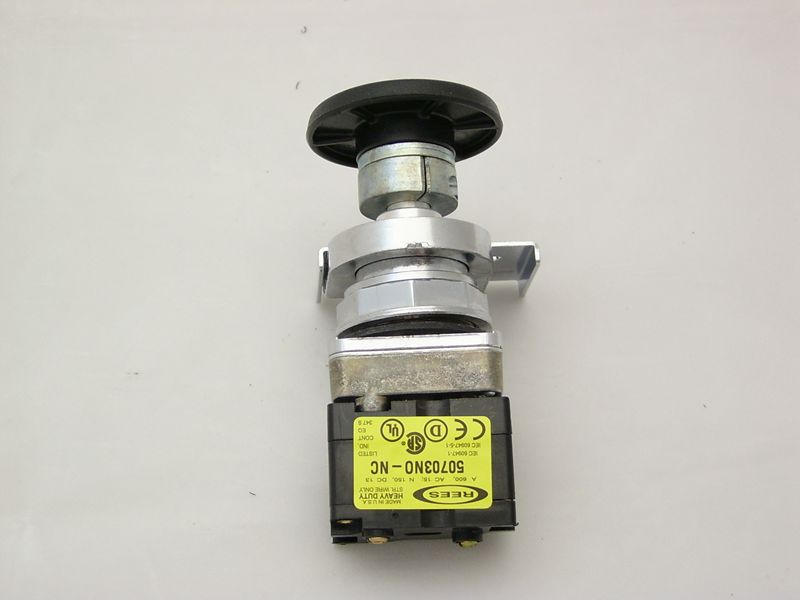

Rees; Switch; Actuator: Hand Operated; Action: Maintained; Operating Temperature: 0 To +55 DEG C; Note: Operating Temperatures At 0 DEG C Are Based On The Absence Of Freezing Moisture And Liquids; Inrush Current: 60, 30, 15, 12 AMP; Mechanical Life: 1000000 Operations; Material: Die Cast Zinc Body; Storage Temperature: -40 To +85 DEG C; Nema Rating: 12/13; Operating Force: 8 LB; Positive Opening Contact: Yes; Plunger Size: 2 IN; Plunger Style: Mushroom; Old Catalog Number: R102; Padlock Feature: Yes; Plunger Head Replacement: 43200-041; Ip: 65; Plunger: DuPont Delrin 100ST Acetal; Operator Color: Black; Normal Potential: 110 - 120 VAC, 220 - 240 VAC, 440 - 480 VAC, 550 - 600 VAC Power Factor 0.35 Or Less; 115 - 125 VDC, 230 - 250 VDC Inductive Loads As Specified In Section 125 Of Industrial Control Devices, Controllers And Assemblies, ANSI / NEMA ICS 2-1988; Normal Current: 6, 3, 1.5, 1.2, 2.2, 1.1 AMP

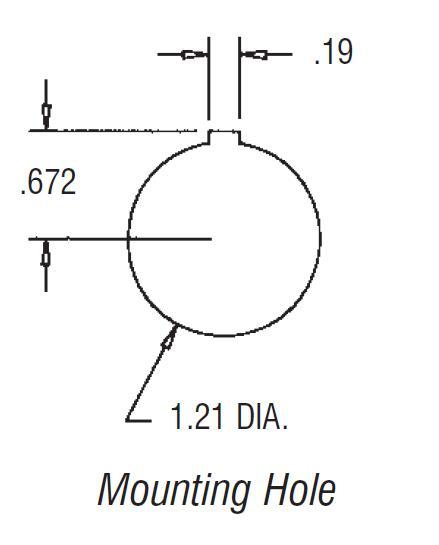

• Line Drawing https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_363f44ff035da07d4659192cc48125796d4f6e6fc56051328ef3f8bdaef227cc.jpg
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_0c7e5e146ce895480b6f897afcec02cb9fa5c94d2195aa09112aa7e9aaa43604.pdf
