NVent ERICO copper bonded ground rods are the highest quality ground rods available today. We use a unique manufacturing process, which includes drawing the steel rod to size before the copper bonding process begins. This results in a straighter, harder steel core, making installation easier. nVent ERICO uses a continuous electro plating process over the steel core that results in a permanent molecular bond that provides decades of reliable performance. Our state of the art ISO registered manufacturing facility provides a consistent, high quality finished product that is used in millions of installations around the world.

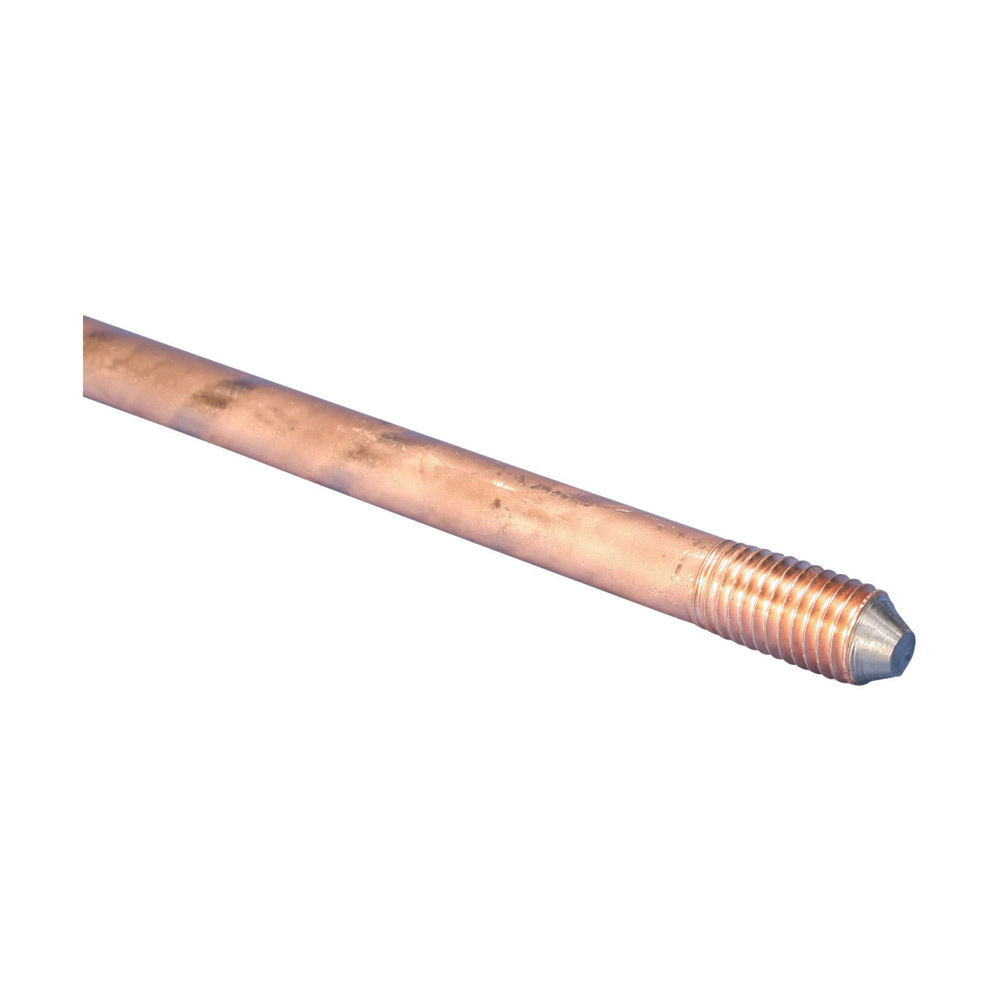

nVent ERICO Ground Rod, Sectional Threaded, 1 in Nominal Size, 10 ft Overall Length, 10 mil Coating Thickness, Copper Bonded Steel, 80000 psi Tensile

• Cold rolled threads with continuous, unbroken grain flows preserve copper coating and are stronger than cut threads
• 99.9% pure electrolytic copper coating
• Molecular bond to nickel sealed high strength steel core
• Rods have a high carbon steel core and tip that provide superior strength when driving
• Copper coating will not crack when bent or tear when driven
• Minimum copper coating of 10 mils on rods listed to UL 467
• NVent ERICO name, length, diameter and part number is roll stamped within 12 in of chamfered end
• UL logo and control number where applicable stamped on each rod for easy inspection after installation

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/ERICO_611300_Brochure.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_ec5e53e3822b96523afad798d30d99e855f0013974b011ab5755aa6a36377888.pdf
